Quality home appliances
HHE213308
Please read this user manual carefully to fully understand the usage
of the vacuum cleaner. Keep the manual for future reference since it
contains important information.
3.

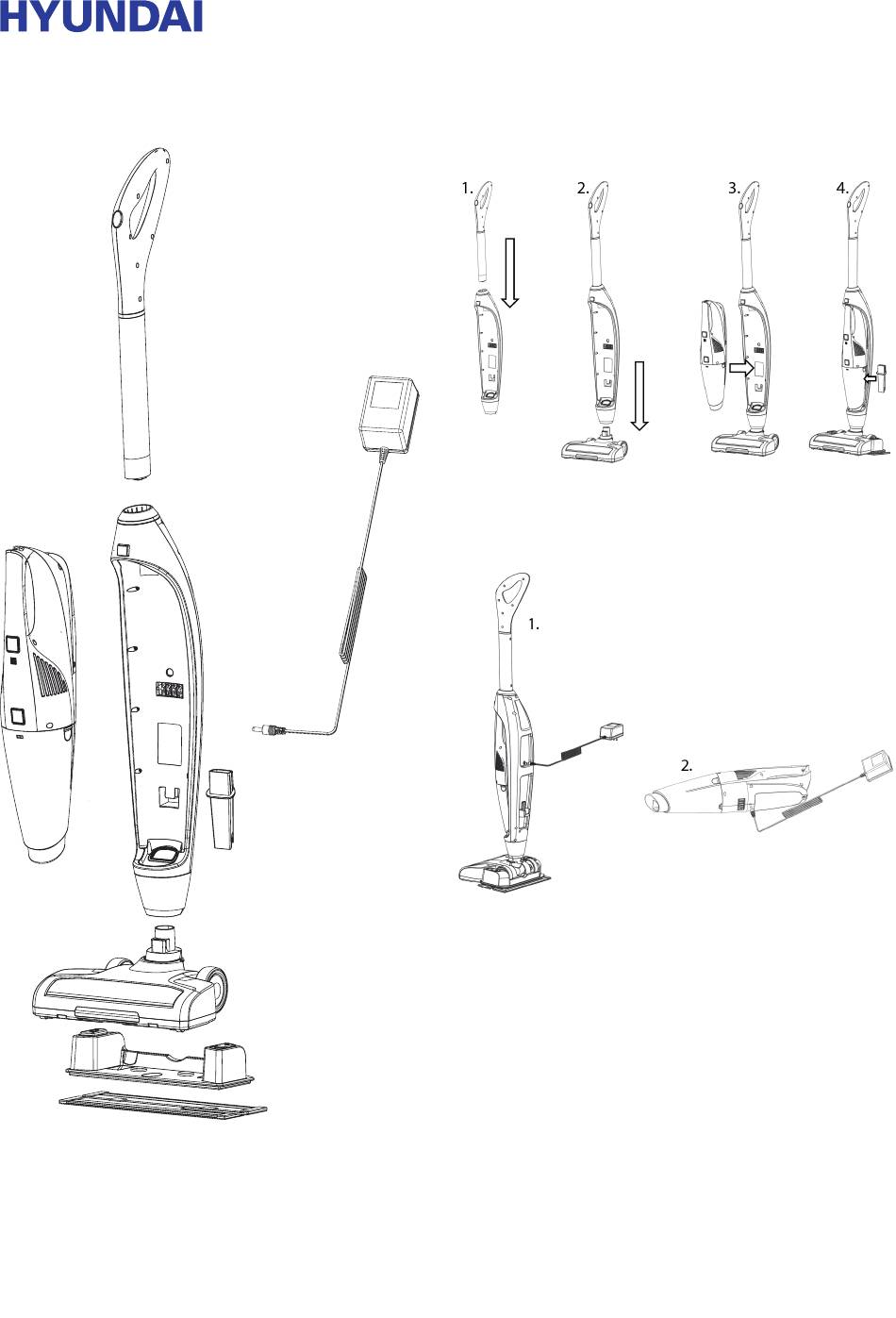

COMPONENTS
1. Hand grip
2. Main body
3. Handheld vac
4. Crevice tool
5. Sweeper
6. Water container
7. Mop
8. Charger
1.
2.
4.
5.
6.
7.
3-in-1 Stick Vacuum Cleaner and Aqua Mop
BEFORE FIRST TIME USING
1. Insert the hand grip into the body
2. Insert the body into the sweeper
3. Put the handheld vac into the body
4. Insert the crevice tool into the body
8.
HOW TO CHARGE
1. Put the handheld vac into the body then charge
2. Handheld vac be charged individually
When using if the the blue light blinks in 1 HZ frequency,it indicates
battery power is low, it need to charge.
1. Press once on the switch on the hand grip to stop the machine.
2. Connnect the plug of charger to the electric supply
3. Connect the another end of charger to the battery pack inside of
the main body through DC hole
4. The blue light blinks in 1 HZ frequency, which indicates charging
normally.
5. The blue light on, which indicates the battery is fully charged.
6. Unplug the charger and put aside
7. Handheld Vac can be charged when it is in the main body or get it
out to charge
Caution
Do not put water into the charge hole of the main body, or the product
will fail in function. Do not charge or store the product below 0 °C or
above 40°C, otherwise it will affect the function. When charging, the
charge temperature may rise, it is normal phenomenon
User Manual
