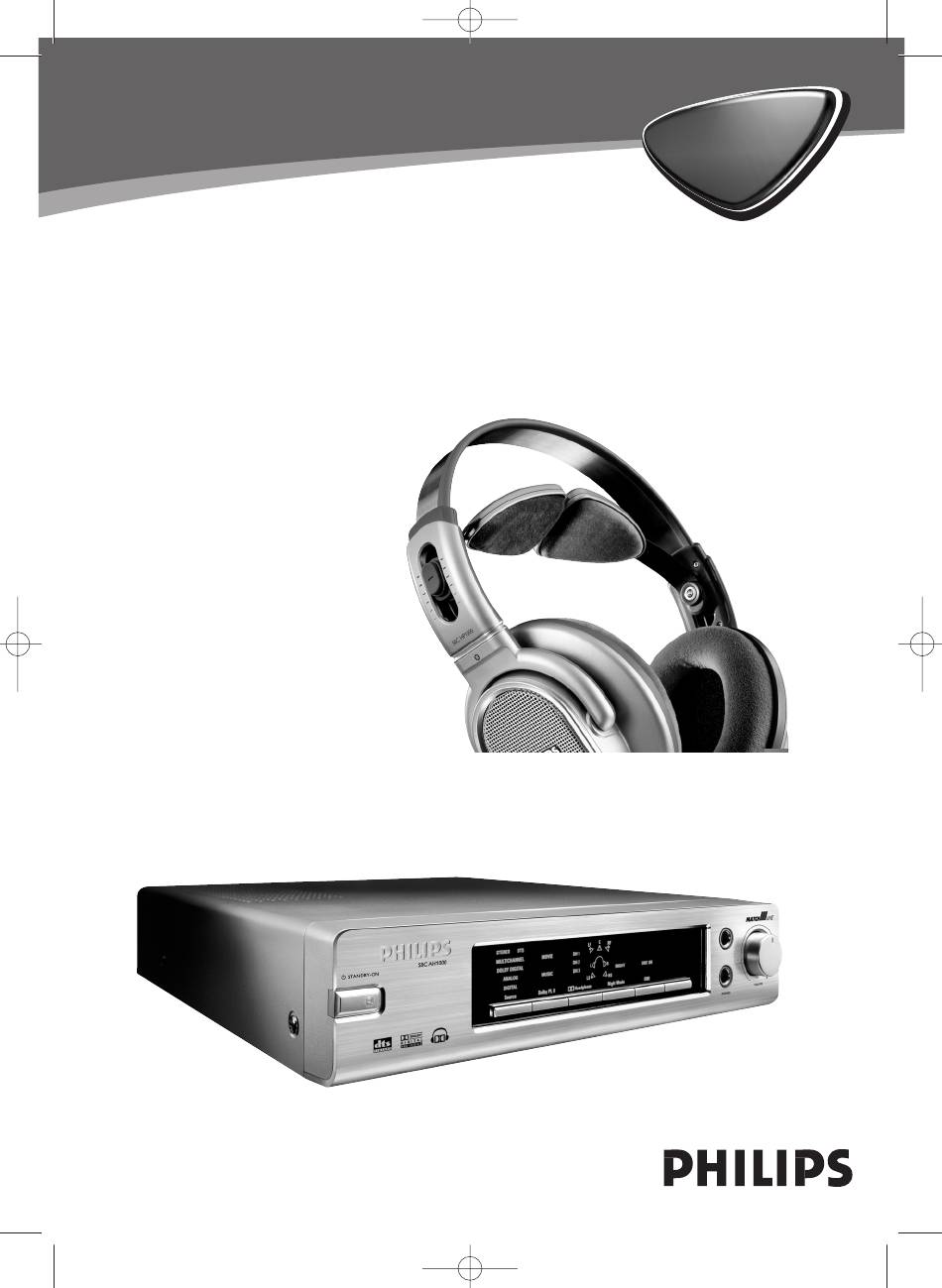

0912HP_EU 09-12-2003 12:12 Pagina 1
1500
1500
HP
HP
Instructions for use
English 4
Mode d'emploi
Français 30
Bedienungsanleitung
Deutsch 56
Gebruiksaanwijzing
Nederlands 82
Instrucciones de manejo
Español 108
Manual de utilização
Português 134
Instruzioni per l'uso
Italiano 160
Bruksanvisning
Svenska 186
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Philips HP1500
Inhaltszusammenfassung für Philips HP1500
- Seite 1 0912HP_EU 09-12-2003 12:12 Pagina 1 1500 1500 Instructions for use English 4 Mode d'emploi Français 30 Bedienungsanleitung Deutsch 56 Gebruiksaanwijzing Nederlands 82 Instrucciones de manejo Español 108 Manual de utilização Português 134 Instruzioni per l'uso Italiano 160 Bruksanvisning Svenska 186...
- Seite 2 0912HP_EU 09-12-2003 12:12 Pagina 2...
- Seite 3 0912HP_EU 09-12-2003 12:12 Pagina 3 Helpline (www.p4c.philips.com) België/Belgien/Belgique Nederland 32-2-525.81.11 0900-8406 Danmark Norge 45 33 29 33 33 47-22-748 000 Deutschland Österreich 49-40-28990 43-1-601 01 España Portugal 34-91-4042200 +351-21-416 33 33 France Schweiz/ Suisse/ Svizzera 33 1 47 28 10 00...

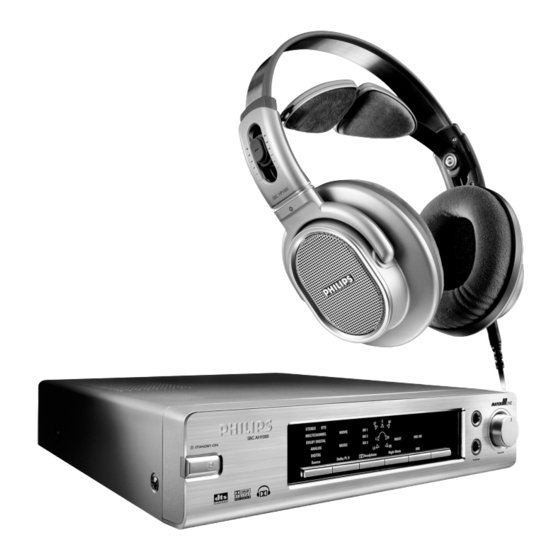

- Seite 4 Maintenance Technical specifications European Regulations Introduction SBC HP1500 Congratulations! You have just bought a most sophisticated digital headphone system. This system uses state of the art digital technology, offering you the freedom of enjoying your favourite music or movies in the purest digital quality.
-
Seite 5: System Configuration
Dolby Digital or DTS. And the analogue input brings your collection of VCR tapes back to life in full Dolby Pro Logic II surround sound. The pure Hifi headphone that comes with the HP1500 system will provide you with pure audio quality that is second to none. -
Seite 6: Dolby Headphone
0912HP_EU 09-12-2003 12:12 Pagina 6 ENGLISH Dolby Headphone A brief introduction Dolby Digital and DTS provide discrete left and right surround channels, for more precise localization of sound and a more convincing, realistic ambience. Discrete means that each channel contains its own particular audio information and plays a unique role in creating a realistic surround sound experience. - Seite 7 0912HP_EU 09-12-2003 12:12 Pagina 7 ENGLISH Advanced technologies used in HP 1500 The HP1500 makes use of several advanced technologies. Principle of determining the direction of sound People can determine the localization of sounds through the perception of differences in intensity – so called Interaural Intensity Difference (IID) – and through time differences –...
- Seite 8 "spatial" cues, i.e. create a sense of directionality. It is through these techniques that Philips is able to bring you a home cinema experience through a headphone that is as real as when you would...
- Seite 9 0912HP_EU 09-12-2003 12:12 Pagina 9 ENGLISH Automatic Audio Signal Routing The Automatic Audio Signal Routing (AASR) feature of the HP 1500 basestation allows for audio sources to be connected to its audio inputs and at the same time it can pass those same audio signals on to – for example – your Home Cinema receiver.This allows for permanent audio connections to be made without the need for swapping cables.
-
Seite 10: Digital Audio Formats
0912HP_EU 09-12-2003 12:12 Pagina 10 ENGLISH Digital audio formats The device will recognize the following digital input signals: – Stereo LPCM with sample frequencies 44.1 kHz and 48kHz – Dolby® Digital (AC-3), up to 5.1 channels – DTS®, up to 5.1 channels In case an invalid digital signal is detected - for example a digital MP3 data stream - the ‘DIGITAL’... -
Seite 11: Safety Precautions
• Do not expose this product to extreme heat. • Do not open this product. In the event of technical difficulties take it to your Philips retailer. • Do not cover this product. • Inadequately protected or sensitive electronic equipment may be affected by the use of this product.This interference may lead to damage to either... - Seite 12 0912HP_EU 09-12-2003 12:12 Pagina 12 ENGLISH Functional overview - Product illustrations on inside flap Base station front panel (figure 1) 1 Power section a) power on/standby and demo mode button By holding the 'STANDBY-ON' button for 1.5 seconds or longer, the demo mode can be activated: –...
- Seite 13 0912HP_EU 09-12-2003 12:12 Pagina 13 ENGLISH 4 Dolby Pro Logic II section a) button to activate Dolby Pro Logic II and to toggle between ‘MUSIC’ and ‘MOVIE’ mode. – the preferred mode depends on the nature of the audio input signal: –...
- Seite 14 0912HP_EU 09-12-2003 12:12 Pagina 14 ENGLISH 7 Night mode section a) button to activate Night mode – Night mode will reduce the dynamics of the audio signal.This will result in both the loudest and the most silent audio signals becoming clearly audible, even at lower volume levels.
-
Seite 15: Installation
0912HP_EU 09-12-2003 12:12 Pagina 15 ENGLISH Headphone (figure 3) 13 Flexifit™ headband a) adjust the comfort level of the inner headband to your personal preference by simply pushing the adjustment button. Installation Base station power supply 1 Make sure the base station’s rated voltage corresponds to the mains socket voltage. - Seite 16 0912HP_EU 09-12-2003 12:12 Pagina 16 ENGLISH When connecting your audio equipment in this way, you will be able to benefit from the Automatic Audio Signal Routing (AASR) feature. As long as the base station is powered – even in stand-by mode – the audio signal from the audio source will be made available not only to the digital base station but it will be routed through to the rest of your home entertainment set-up.
- Seite 17 0912HP_EU 09-12-2003 12:12 Pagina 17 ENGLISH 10 Dolby Pro Logic II: the ‘Dolby Pro Logic II’ menu field indicator will be illuminated in yellow indicating that Dolby Pro Logic II is possible. Press the Dolby Pro Logic II button to activate Dolby Pro Logic II. Pressing this button repeatedly will allow you to toggle between ‘MUSIC’...
- Seite 18 0912HP_EU 09-12-2003 12:12 Pagina 18 ENGLISH 12 Night mode: this option is not available in case of analogue audio signals. The ‘Night Mode’ menu field indicator is off: NIGHT’ mode cannot be activated. 13 DBB: the Dynamic Bass Boost function is only applicable to headphones connected to the 6.3 mm headphone outputs.
- Seite 19 0912HP_EU 09-12-2003 12:12 Pagina 19 ENGLISH OPTION 2: DIGITAL STEREO OR MULTI CHANNEL SOURCE: Connecting the digital base station to a digital stereo source (CD player with S/PDIF output, etc.) or a digital multichannel source (DVD player with S/PDIF output, etc.) Base station 1 Connect one side of the S/PDIF digital audio cable (included) to the S/PDIF output of the audio source and the other side to the S/PDIF input...
- Seite 20 0912HP_EU 09-12-2003 12:12 Pagina 20 ENGLISH IMPORTANT! • In case of connecting an audio CD player to the HP1500 base station making use of the CD player’s digital outputs: do not up sample the Audio CD digital output signal higher than 44.1 kHz.
- Seite 21 0912HP_EU 09-12-2003 12:12 Pagina 21 ENGLISH 8 Dolby Pro Logic II: the ‘Dolby Pro Logic II’ menu field indicator will be illuminated in yellow in case of a digital stereo signal. In case of a digital multichannel signal, Dolby Pro Logic II will not be illuminated (since it is not a valid option for such signals).
- Seite 22 0912HP_EU 09-12-2003 12:12 Pagina 22 ENGLISH The following tables will illustrate the different combinations of Dolby Pro Logic II, Dolby Digital, DTS and Dolby Headphone and the resulting indication in the display of the base station depending on the nature of the digital audio input signal (i.e.
- Seite 23 0912HP_EU 09-12-2003 12:12 Pagina 23 ENGLISH 11 Night mode: this option is only available in case of digital stereo or digital multichannel audio signals. When the ‘Night Mode’ menu field indicator is on, ‘NIGHT’ mode can be activated. 12 DBB: the Dynamic Bass Boost function is only applicable to headphones connected to the 6.3 mm headphone outputs.
- Seite 24 Philips SACD player Philips SACD players come with a multitude of audio output connectors. Some of the Philips SACD players can even function as a DVD video player. The following will explain the different possibilities of connecting your Philips SACD player to the HP1500 base station.
- Seite 25 – DTS®, up to 5.1 channels IMPORTANT! • In case of connecting a Super Audio CD player to the HP1500 base station making use of the SACD player’s digital outputs: do not upsample the Super Audio CD digital output signal higher than 44.1 kHz.
-
Seite 26: Basic Operation
(DVD player with S/PDIF output, etc.) 1 Switch on your audio source. 2 Switch on the HP1500 base station: the power indicator will change from red to green. 3 Select the input source you wish to listen to (analogue or digital): –... -
Seite 27: Problem Solving
• The audio signal from your DVD player is upsampled: lower the PCM sampling rate through the DVD player’s menu to 48 kHz. • Invalid digital audio signal: the ‘DIGITAL’ indication LED in the HP1500 display window will be illuminated in red. Change the digital audio signal (for exampling: by changing from MP3 to audio CD) or switch to the analogue input signal of the HP1500 base station. -
Seite 28: Maintenance
0912HP_EU 09-12-2003 12:12 Pagina 28 ENGLISH Maintenance • If the headphone will not be used for a longer time, please remove the batteries to prevent leakage and corrosion. • Hearing Safety! Continuous use at a high volume may permanently damage your hearing. •... -
Seite 29: European Regulations
0912HP_EU 09-12-2003 12:12 Pagina 29 ENGLISH Hereby, Philips Consumer Electronics, B.U. Peripherals & Accessories, declares that this digital headphone system (HP1500) is in compliance with the essential requirements and other relevant provisions of Directive 89/336/ECC. European Regulations This product has been designed, tested and manufactured according the European EMC directive 89/336/ECC. - Seite 30 0912HP_EU 09-12-2003 12:12 Pagina 212 www.philips.com This document is printed on chlorine free produced paper Data subject to change without notice Printed in China...
