4. Features
•
compression format: H.264 real-time
•
high resolution recording:
o full frame: 704 x 576 pixels
o 960H: 960 x 576 pixels with 700TVL cameras
•
multiplex: allows live display, recording, playback, backup and network operation
•
backup function: supports USB 2.0 flash drive and network backup
•
powerful mobile surveillance support on all major platforms including iPad, iPhone, BlackBerry, Windows Mobile, Symbian
and Android - Software: see www.eagleeyescctv.com
•
intelligent motion trigger recording:
o advanced motion detection
o scheduled motion detection recording (with 3 adjustable parameters)
•
automatic integrated Dynamic Domain Name Service (DDNS): free service
•
system auto recovery after power reconnected
•
supports daylight-saving function
•
supports manual / timer / motion / alarm recording functions
•
multi-language OSD: English, French, Dutch, German, Portuguese, Spanish, Czech, Hungarian, Greek, Chinese, and
Vietnamese
•
user manual: English
•
quick start manual: English, Dutch, French, Spanish, German
•
USB mouse: incl.
•
optional hard disks (not incl.): HD500GB/S, HD1TB/S, HD2TB/S
•
IR remote control: DVRRC4 (incl.)
•
optional monitor (not incl.): MONSCA4N1
•
optional router (not incl.): EM4542, EM4553, EM4570
5. Overview
Refer to the illustrations on page 2 of this manual.

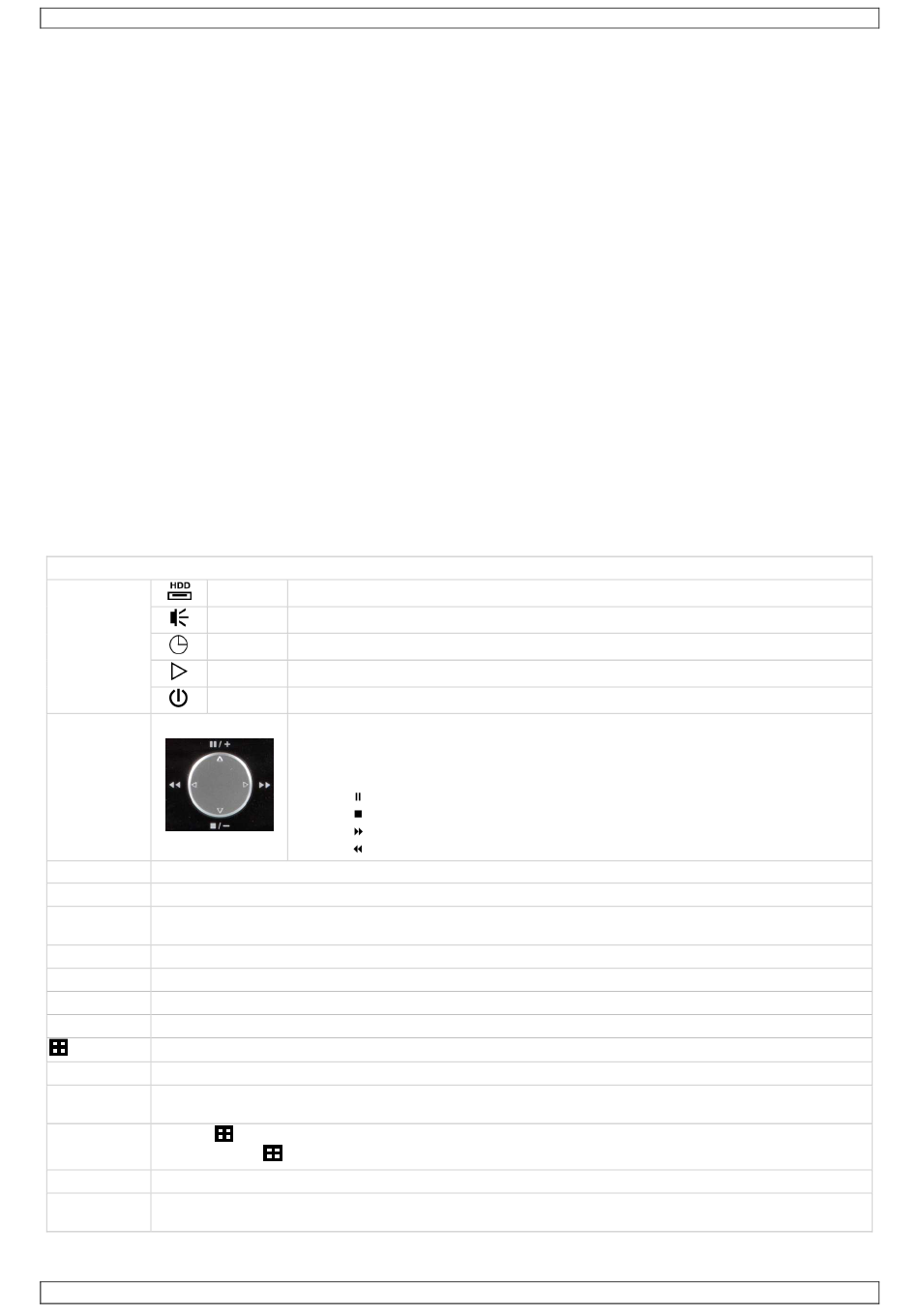

Front panel
HDD
ALARM
LED indications TIMER
PLAY
POWER
Navigation
button
MENU Press to enter the main menu.
ENTER Press to confirm settings.
List the information of the recorded files.
LIST
QUICK SEARCH / RECORD / MOTION / ALARM / TIMER / FULL LIST
PLAY Press to play the recorded video.
SLOW In playback mode, press to play the recorded file slowly.
ZOOM In live or playback mode, press to enlarge the image of the selected channel.
SEQ Press to show all screens sequentially in full screen mode. Press again to quit.
4CH: Press to show the 4 channel display mode.
1–4 Press a button to select the corresponding channel.
= SLOW + ZOOM
AUDIO
Press SLOW and ZOOM simultaneously to select live or play-back sounds.
= SEQ +
P.T.Z.
Press SLOW and
SEARCH Opens the QUICK SEARCH function.
Connect a USB flash drive for video backup to one USB port; connect a USB mouse to the other.
USB port (2 x)
Note: do not connect two USB flash drives or USB mice at the same time.
V. 01 – 03/06/2014
DVR4H5
Reading or recording activities on the hard disk.
An alarm was triggered.
Timed recording is enabled.
The DVR is in playing mode.
DVR power is on.
In settings mode:
•
Press ▲ / ▼ / ◄ / ► to move the cursor accordingly.
•
When changing a setting, press + or – to increase or decrease the setting.
In playback mode:
•
Press to pause playback.
•
Press to stop playback.
•
Press to fast forward.
•
Press to fast rewind.
simultaneously to enter or exit PTZ control mode.
