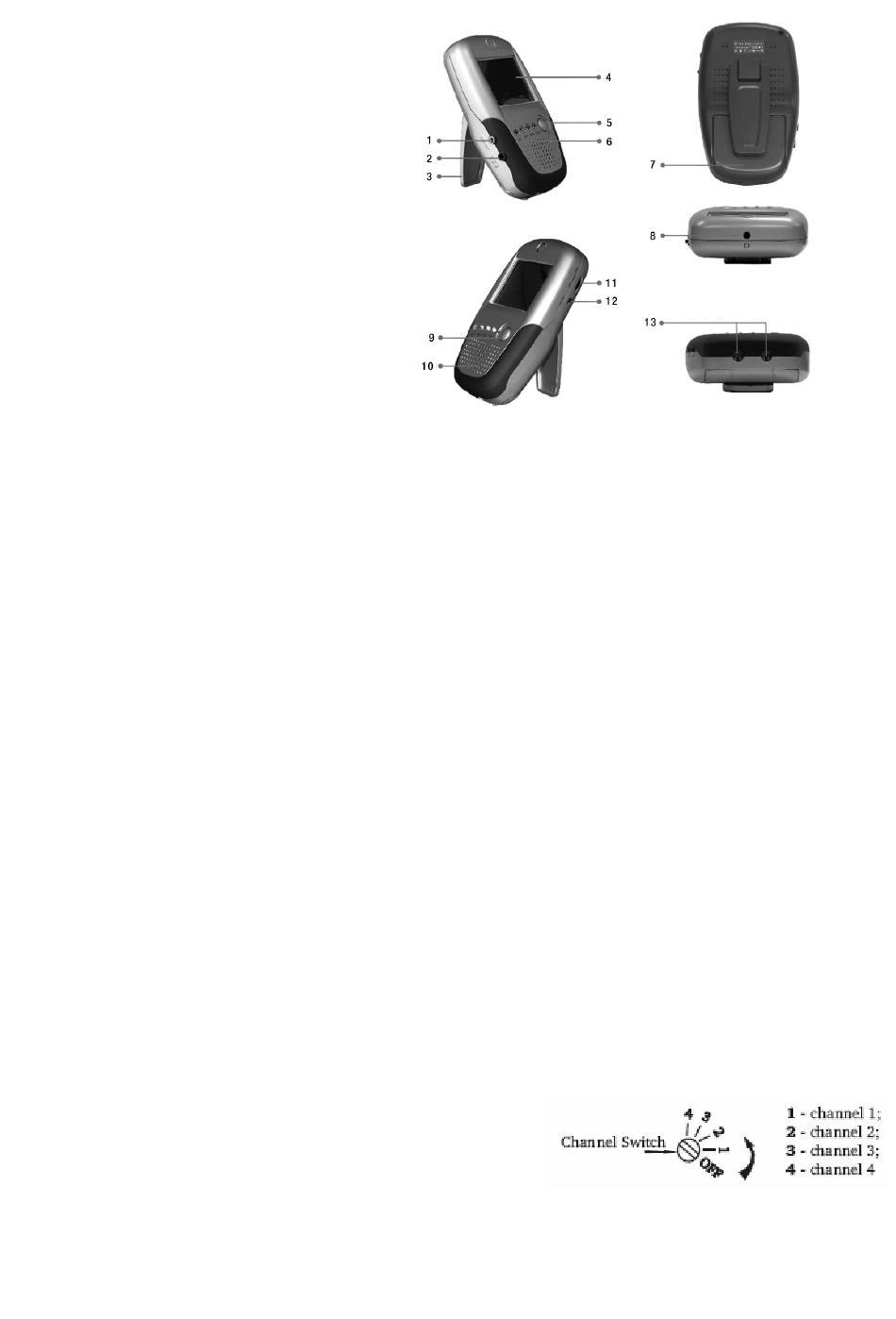

5. Description Receiver (fig. 4)
1. video output
2. power socket
3. holder
4. LCD
5. channel button
6. channel indicator
7. battery cover
8. earphones socket
9. charge indicator
10. speaker
11. volume control
12. power switch
13. charge socket

6. Installation

1. Locate the camera to a specific position and then adjust the angle.
Camera:
2. Turn on the camera by tuning the power switch from OFF to any channel and the power indicator lights up green.
Remark:
The camera with built-in lithium battery has a min. autonomy of 5 hours. If the battery is dead, please recharge it with
the included camera adapter (DC 5V 700mA). The charge indicator lights up red during charging and extinguishes
when the device is fully charged. A full charge takes ± 2 hours.
Receiver:
3. Insert one of the two included lithium batteries in the battery compartment. Respect the polarity indications.
Remarks:
• The receiver can also be powered by adapter (DC 5V 2A)
• The charging process starts when the adapter is plugged in. The charge indicator lights up while the lithium
battery is being charged and turns off when charging is completed
• A full charge takes ± 3 hours and provides an autonomy of ± 70 minutes.
• Charge the battery fully before initial use to prolong its life.
• Do not burn or destroy the battery.
• Do not short-circuit the battery, it may cause fire or electroshocks
4. Slide the power switch to the ON position.
5. Set the volume control to the desired level.
6. Use the channel button to
displayed on the monitor/TV. Use a video cable to connect the receiver with a monitor/TV if you want a clearer
picture.
8. Camera Channel Set-up
Use the channel switch at the back to choose one of the four
available cameras. Select a different camera in case of interference
(see fig.).
set the same channel on the receiver as on the camera .The camera picture is now
