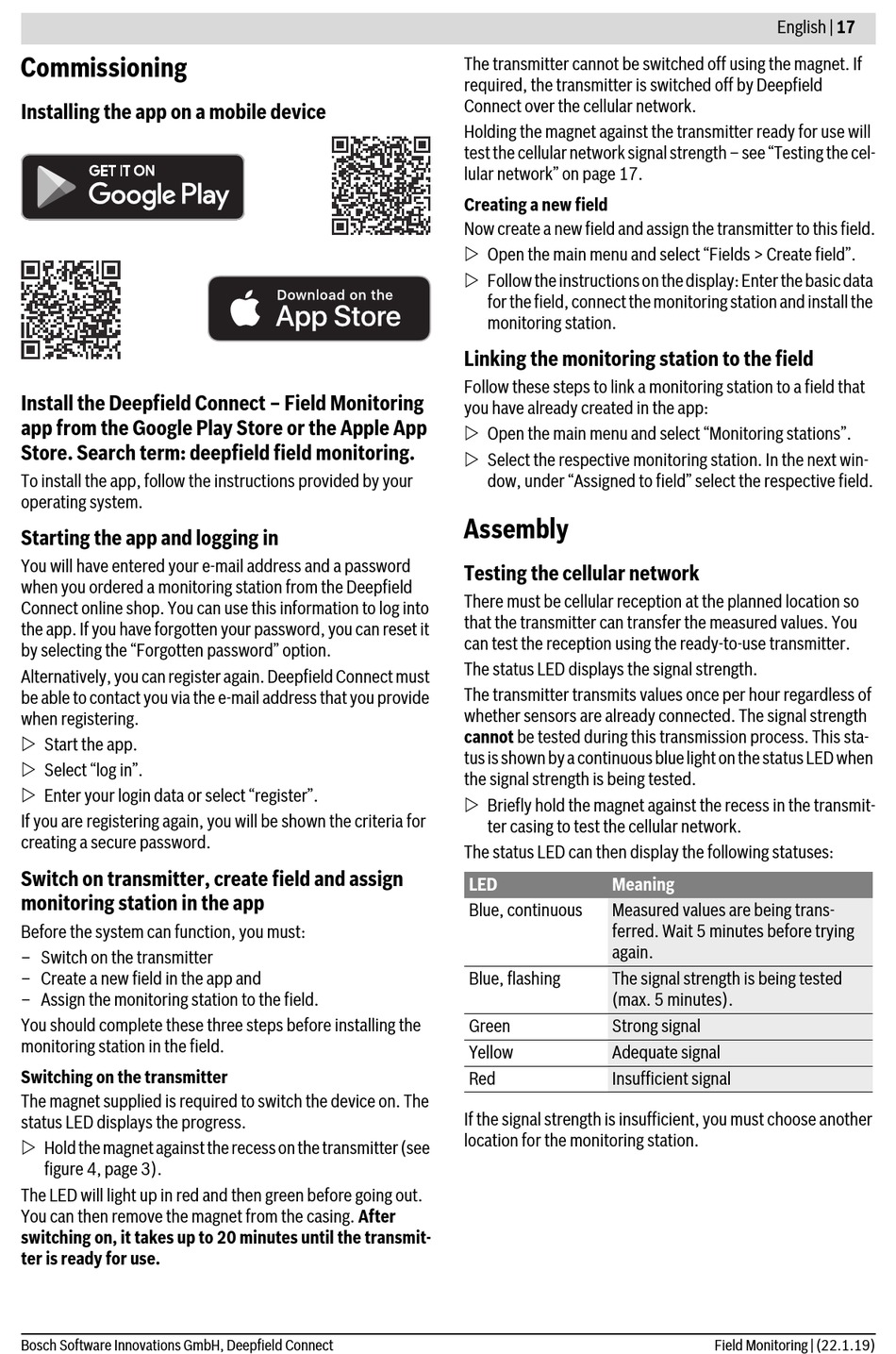

Commissioning

Installing the app on a mobile device
Install the Deepfield Connect – Field Monitoring
app from the Google Play Store or the Apple App
Store. Search term: deepfield field monitoring.
To install the app, follow the instructions provided by your
operating system.
Starting the app and logging in
You will have entered your e-mail address and a password
when you ordered a monitoring station from the Deepfield
Connect online shop. You can use this information to log into
the app. If you have forgotten your password, you can reset it
by selecting the "Forgotten password" option.
Alternatively, you can register again. Deepfield Connect must
be able to contact you via the e-mail address that you provide
when registering.
 Start the app.
 Select "log in".
 Enter your login data or select "register".
If you are registering again, you will be shown the criteria for
creating a secure password.
Switch on transmitter, create field and assign
monitoring station in the app
Before the system can function, you must:
– Switch on the transmitter
– Create a new field in the app and
– Assign the monitoring station to the field.
You should complete these three steps before installing the
monitoring station in the field.
Switching on the transmitter
The magnet supplied is required to switch the device on. The
status LED displays the progress.
 Hold the magnet against the recess on the transmitter (see
figure 4, page 3).
The LED will light up in red and then green before going out.
You can then remove the magnet from the casing. After
switching on, it takes up to 20 minutes until the transmit-
ter is ready for use.
Bosch Software Innovations GmbH, Deepfield Connect
The transmitter cannot be switched off using the magnet. If
required, the transmitter is switched off by Deepfield
Connect over the cellular network.
Holding the magnet against the transmitter ready for use will
test the cellular network signal strength – see "Testing the cel-
lular network" on page 17.
Creating a new field
Now create a new field and assign the transmitter to this field.
 Open the main menu and select "Fields > Create field".
 Follow the instructions on the display: Enter the basic data
for the field, connect the monitoring station and install the
monitoring station.
Linking the monitoring station to the field
Follow these steps to link a monitoring station to a field that
you have already created in the app:
 Open the main menu and select "Monitoring stations".
 Select the respective monitoring station. In the next win-
dow, under "Assigned to field" select the respective field.

Assembly

Testing the cellular network
There must be cellular reception at the planned location so
that the transmitter can transfer the measured values. You
can test the reception using the ready-to-use transmitter.
The status LED displays the signal strength.
The transmitter transmits values once per hour regardless of
whether sensors are already connected. The signal strength
cannot be tested during this transmission process. This sta-
tus is shown by a continuous blue light on the status LED when
the signal strength is being tested.
 Briefly hold the magnet against the recess in the transmit-
ter casing to test the cellular network.
The status LED can then display the following statuses:
LED Meaning
Blue, continuous Measured values are being trans-
ferred. Wait 5 minutes before trying
again.
Blue, flashing The signal strength is being tested
(max. 5 minutes).
Green Strong signal
Yellow Adequate signal
Red Insufficient signal
If the signal strength is insufficient, you must choose another
location for the monitoring station.
