1.3.1

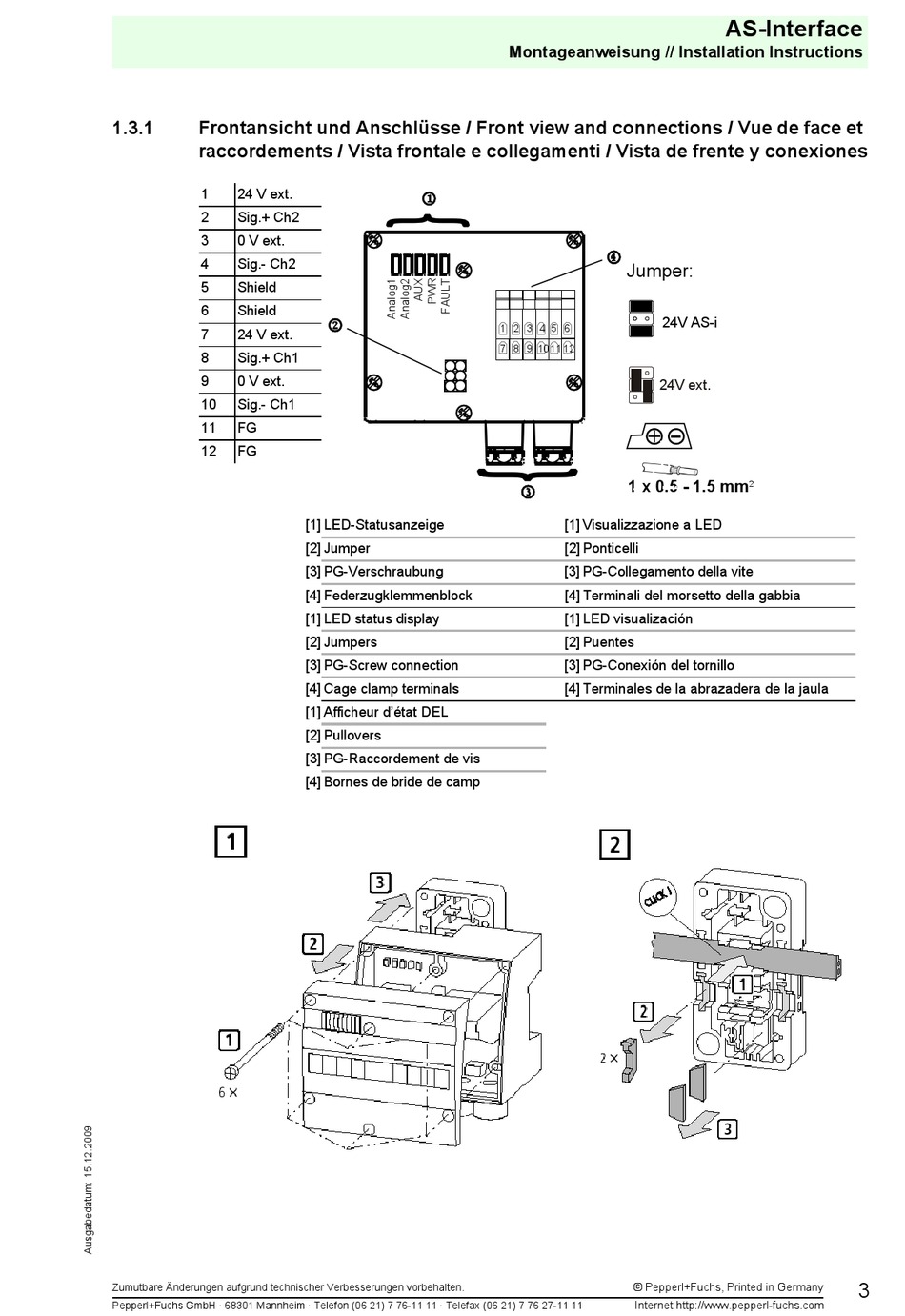

Frontansicht und Anschlüsse / Front view and connections / Vue de face et
raccordements / Vista frontale e collegamenti / Vista de frente y conexiones
1
24 V ext.
2
Sig.+ Ch2
3
0 V ext.
4
Sig.- Ch2
5
Shield
6
Shield
7
24 V ext.
8
Sig.+ Ch1
9
0 V ext.
10
Sig.- Ch1
11
FG
12
FG
Zumutbare Änderungen aufgrund technischer Verbesserungen vorbehalten.
Pepperl+Fuchs GmbH · 68301 Mannheim · Telefon (06 21) 7 76-11 11 · Telefax (06 21) 7 76 27-11 11
1
2
[1] LED-Statusanzeige
[2] Jumper
[3] PG-Verschraubung
[4] Federzugklemmenblock
[1] LED status display
[2] Jumpers
[3] PG-Screw connection
[4] Cage clamp terminals
[1] Afficheur d'état DEL
[2] Pullovers
[3] PG-Raccordement de vis
[4] Bornes de bride de camp
Montageanweisung // Installation Instructions
4
Jumper:
24V AS-i
1 2 3 4
5
6
7 8 9 10
11
12
24V ext.
1 x 0.5 - 1.5 mm²
3
[1] Visualizzazione a LED
[2] Ponticelli
[3] PG-Collegamento della vite
[4] Terminali del morsetto della gabbia
[1] LED visualización
[2] Puentes
[3] PG-Conexión del tornillo
[4] Terminales de la abrazadera de la jaula
© Pepperl+Fuchs, Printed in Germany
Internet http://www.pepperl-fuchs.com
AS-Interface
3
