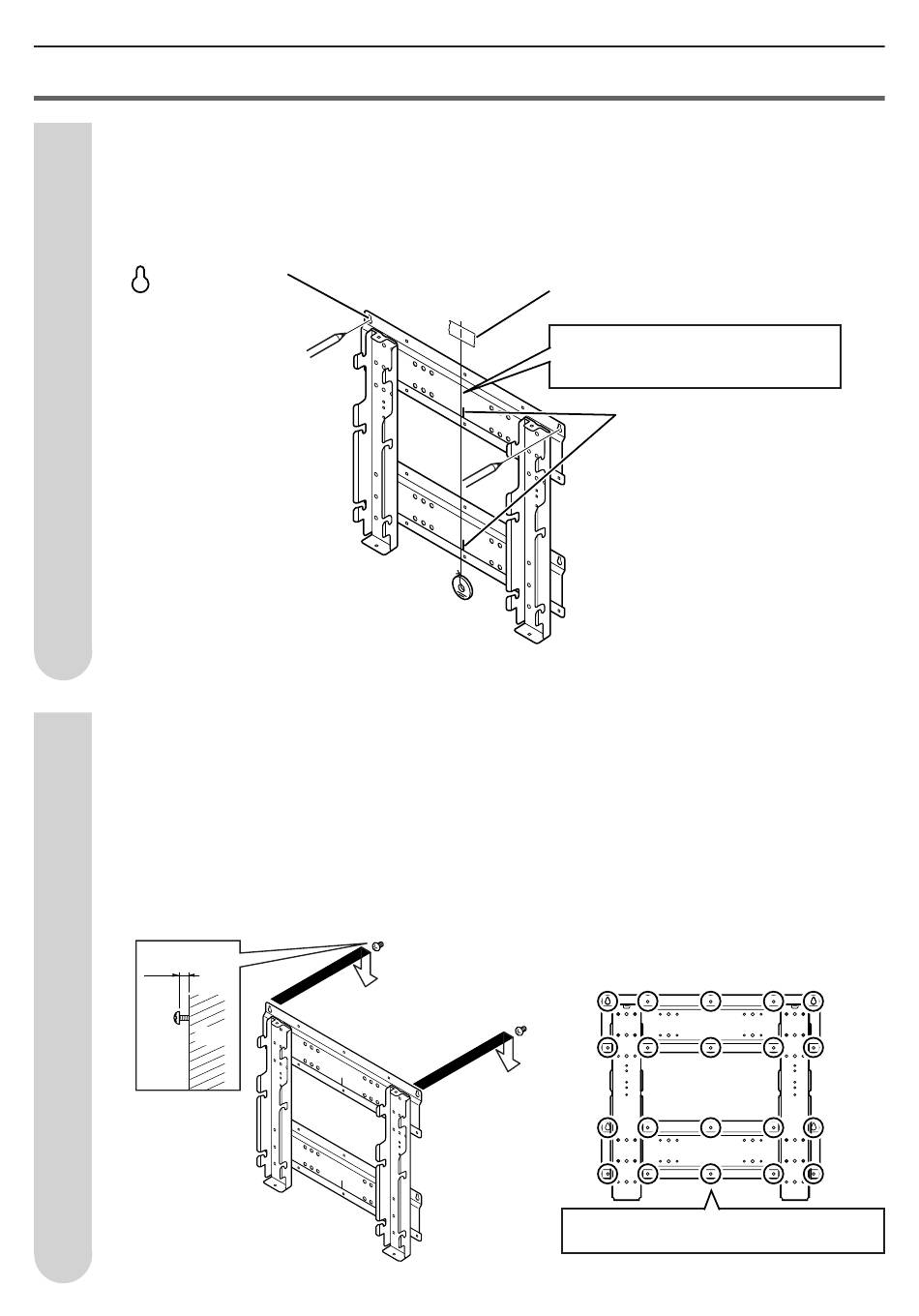

Installing the Based Bracket to the Wall
Determine the location where the based bracket will be installed.
2
Take the coin with the string and align it perpendicular to the based bracket.
Use the vertical reference line on the based bracket to check the vertical position.
Use a pencil, etc., to mark the two screw hole locations.
shaped screw
holes
Use a pencil, etc., to
mark the screw hole
position on the wall
behind the bracket.
Loosely screw in the screws.
3
Temporarily remove the based bracket from the wall and loosely screw in 2 off-the-shelf
screws (6 mm dia.) in the screw hole positions marked on the wall. At this time, the screw
heads should extend several mm above the wall so that the based bracket can be hung on
the screw heads. Hang the based bracket on the installed screws, check to make sure the
bracket is not sagging to the left or right, and then firmly tighten the screws. Use off-the-shelf
screws to secure the remaining screw holes (6 mm dia., 18 screws).
Min. 4mm
E-6
Wall
(Continued)
Cellophane tape, etc.
Align horizontally and vertically until
the string lies on top of the guide line
(vertical reference line).
Guide lines
Fasten the screws in the circled screw
holes (20 holes).
