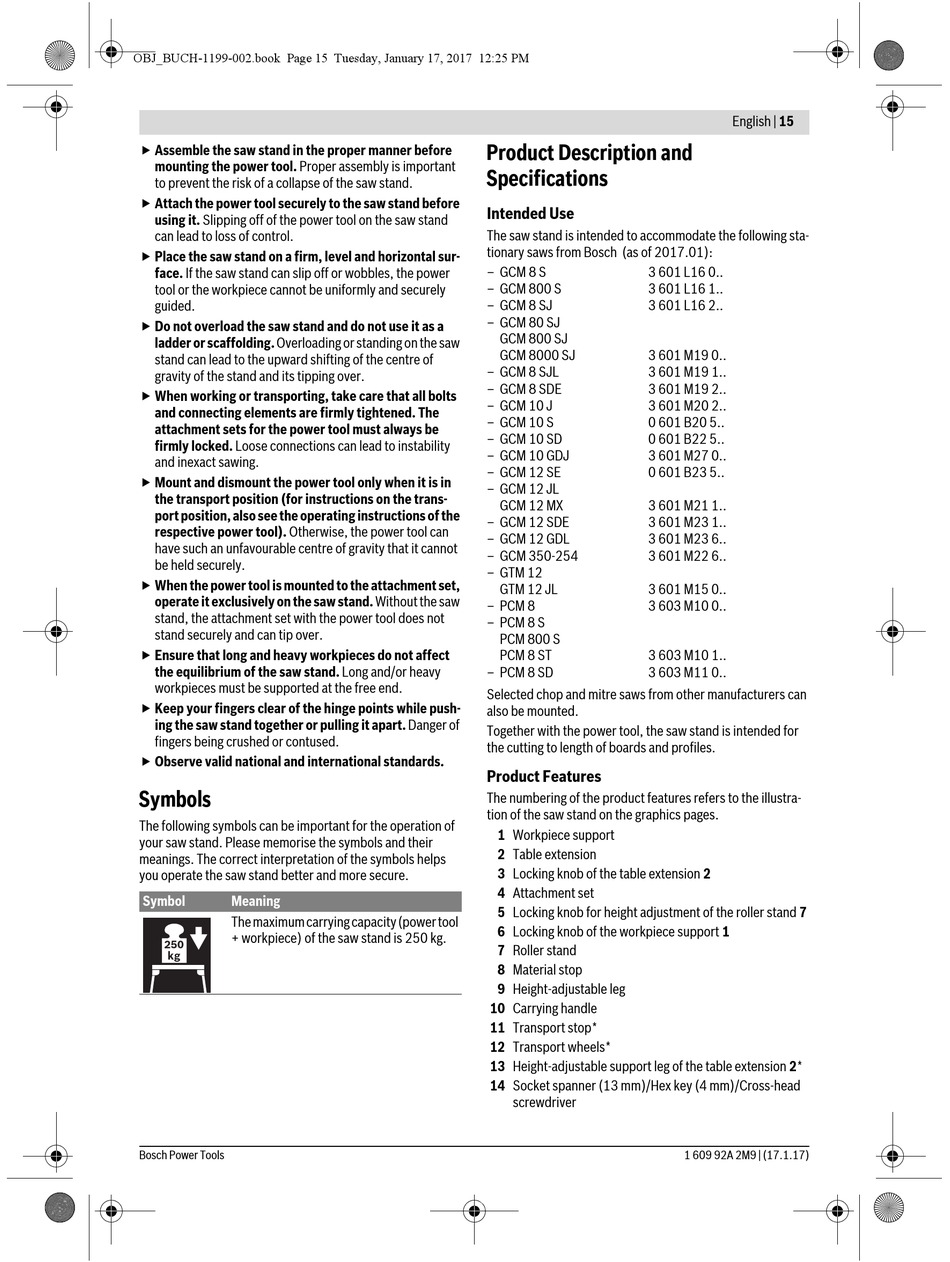

 Assemble the saw stand in the proper manner before
mounting the power tool. Proper assembly is important
to prevent the risk of a collapse of the saw stand.
 Attach the power tool securely to the saw stand before
using it. Slipping off of the power tool on the saw stand
can lead to loss of control.
 Place the saw stand on a firm, level and horizontal sur-
face. If the saw stand can slip off or wobbles, the power
tool or the workpiece cannot be uniformly and securely
guided.
 Do not overload the saw stand and do not use it as a
ladder or scaffolding. Overloading or standing on the saw
stand can lead to the upward shifting of the centre of
gravity of the stand and its tipping over.
 When working or transporting, take care that all bolts
and connecting elements are firmly tightened. The
attachment sets for the power tool must always be
firmly locked. Loose connections can lead to instability
and inexact sawing.
 Mount and dismount the power tool only when it is in
the transport position (for instructions on the trans-
port position, also see the operating instructions of the
respective power tool). Otherwise, the power tool can
have such an unfavourable centre of gravity that it cannot
be held securely.
 When the power tool is mounted to the attachment set,
operate it exclusively on the saw stand. Without the saw
stand, the attachment set with the power tool does not
stand securely and can tip over.
 Ensure that long and heavy workpieces do not affect
the equilibrium of the saw stand. Long and/or heavy
workpieces must be supported at the free end.
 Keep your fingers clear of the hinge points while push-
ing the saw stand together or pulling it apart. Danger of
fingers being crushed or contused.
 Observe valid national and international standards.
Symbols
The following symbols can be important for the operation of
your saw stand. Please memorise the symbols and their
meanings. The correct interpretation of the symbols helps
you operate the saw stand better and more secure.
Symbol Meaning
The maximum carrying capacity (power tool
+ workpiece) of the saw stand is 250 kg.
250
kg
Bosch Power Tools
Product Description and
Specifications

Intended Use

The saw stand is intended to accommodate the following sta-
tionary saws from Bosch (as of 2017.01):
– GCM 8 S 3 601 L16 0..
– GCM 800 S 3 601 L16 1..
– GCM 8 SJ 3 601 L16 2..
– GCM 80 SJ
GCM 800 SJ
GCM 8000 SJ 3 601 M19 0..
– GCM 8 SJL 3 601 M19 1..
– GCM 8 SDE 3 601 M19 2..
– GCM 10 J 3 601 M20 2..
– GCM 10 S 0 601 B20 5..
– GCM 10 SD 0 601 B22 5..
– GCM 10 GDJ 3 601 M27 0..
– GCM 12 SE 0 601 B23 5..
– GCM 12 JL
GCM 12 MX 3 601 M21 1..
– GCM 12 SDE 3 601 M23 1..
– GCM 12 GDL 3 601 M23 6..
– GCM 350-254 3 601 M22 6..
– GTM 12
GTM 12 JL 3 601 M15 0..
– PCM 8 3 603 M10 0..
– PCM 8 S
PCM 800 S
PCM 8 ST 3 603 M10 1..
– PCM 8 SD 3 603 M11 0..
Selected chop and mitre saws from other manufacturers can
also be mounted.
Together with the power tool, the saw stand is intended for
the cutting to length of boards and profiles.

Product Features

The numbering of the product features refers to the illustra-
tion of the saw stand on the graphics pages.
1 Workpiece support
2 Table extension
3 Locking knob of the table extension 2
4 Attachment set
5 Locking knob for height adjustment of the roller stand 7
6 Locking knob of the workpiece support 1
7 Roller stand
8 Material stop
9 Height-adjustable leg
10 Carrying handle
11 Transport stop*
12 Transport wheels*
13 Height-adjustable support leg of the table extension 2*
14 Socket spanner (13 mm)/Hex key (4 mm)/Cross-head
screwdriver
