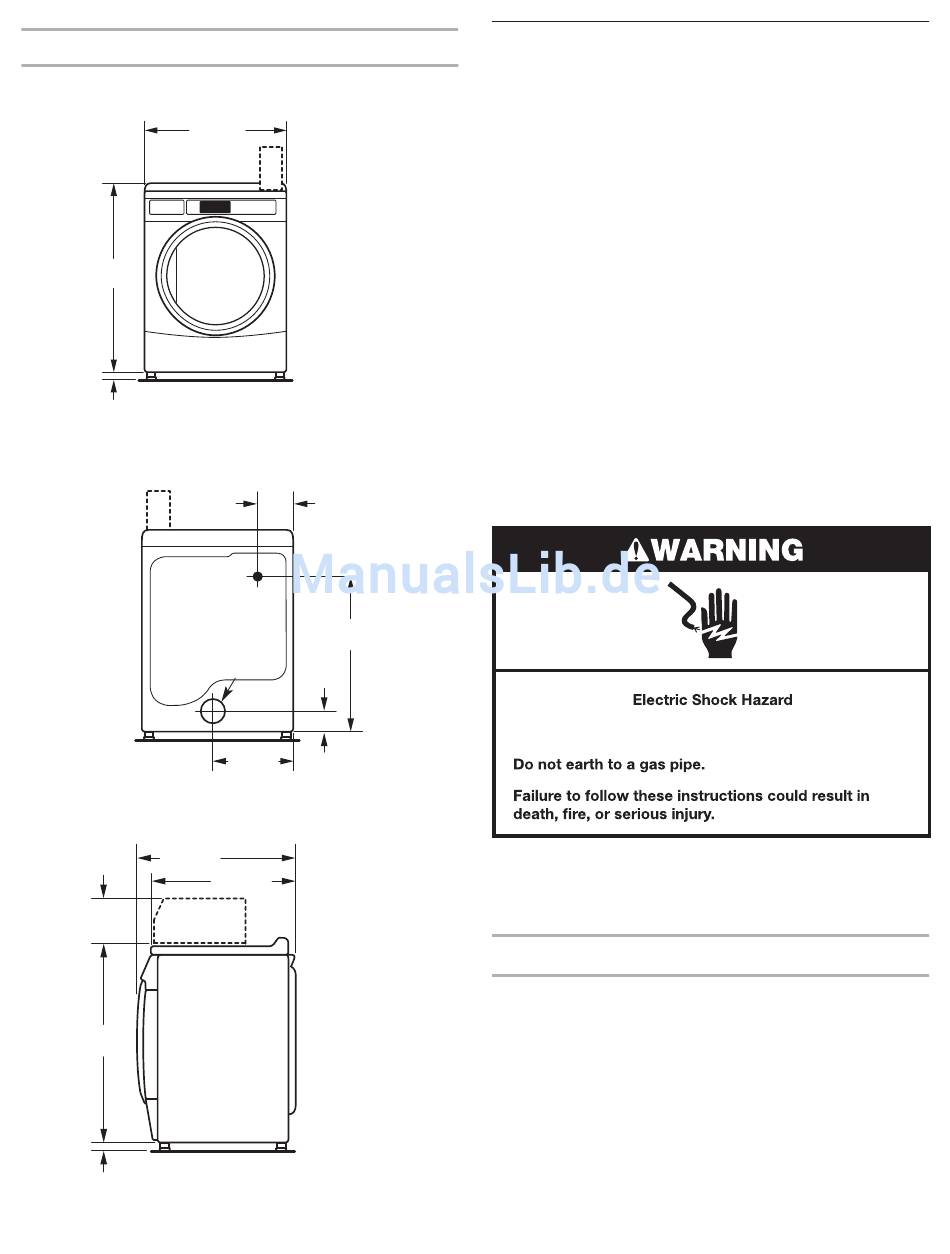

Product Dimensions 686 mm (27") dryer
686 mm
(27")
965 mm
(38")
25 mm
(1")
FRONT VIEW
ELECTRIC
102 mm (4")
BACK VIEW
736 mm
(29")
203 mm
(8")
921 mm
(36
1 / ")
4
25 mm
SIDE VIEW
(1")
159 mm
(6
1 / ")
4
715 mm
(28
1 / ")
8
89 mm
dia.
(3
")
1 /
2
358 mm
(14")
695 mm
(27
/ ")
1
4

Electrical Requirements

This dryer is supplied without an electric cord and plug. It must
be connected by a competent electrician to a single-phase
electricity supply at the voltage shown on the dataplate, using a
suitable fixed wiring installation in accordance with local and
national wiring regulations.
I A 3-wire circular cord of minimum conconductor size 2.5 mm
cross-section area should be used.
I A 30A supply fuse should be used, and a switch having
a contact separation in both poles that provides full
disconnection under over-voltage category III conditions
must be incorporated into the fixed wiring in accordance with
local wiring regulations. The dryer should be positioned so
that the disconnection switch is easily accessible to the user.
I A cord clamp bush is provided on the dryer, and should be
tightened on completion of wiring. The electrical mains
terminals are located behind the small rear access panel
(terminal block cover), and connections should be made in
accordance with the terminal markings. Remember to replace
the terminal access panel (terminal block cover).
NOTE: In accordance with the European EMC Directive
(2004/108/EC), the maximum electricity supply system
impedance to which the electric dryer should be connected
is declared to be 0.29 Ohm + j0.18 Ohm.
This is a 3-wire appliance which must be earthed.
If codes permit and an additional earth bond wire is used, it is
recommended that a qualified electrician determine that the earth
bond path is adequate.
Recommended Earthing Method
I It is your responsibility to contact a qualified electrical installer
to ensure that the electrical installation is adequate and in
conformance with all local codes and ordinances.
