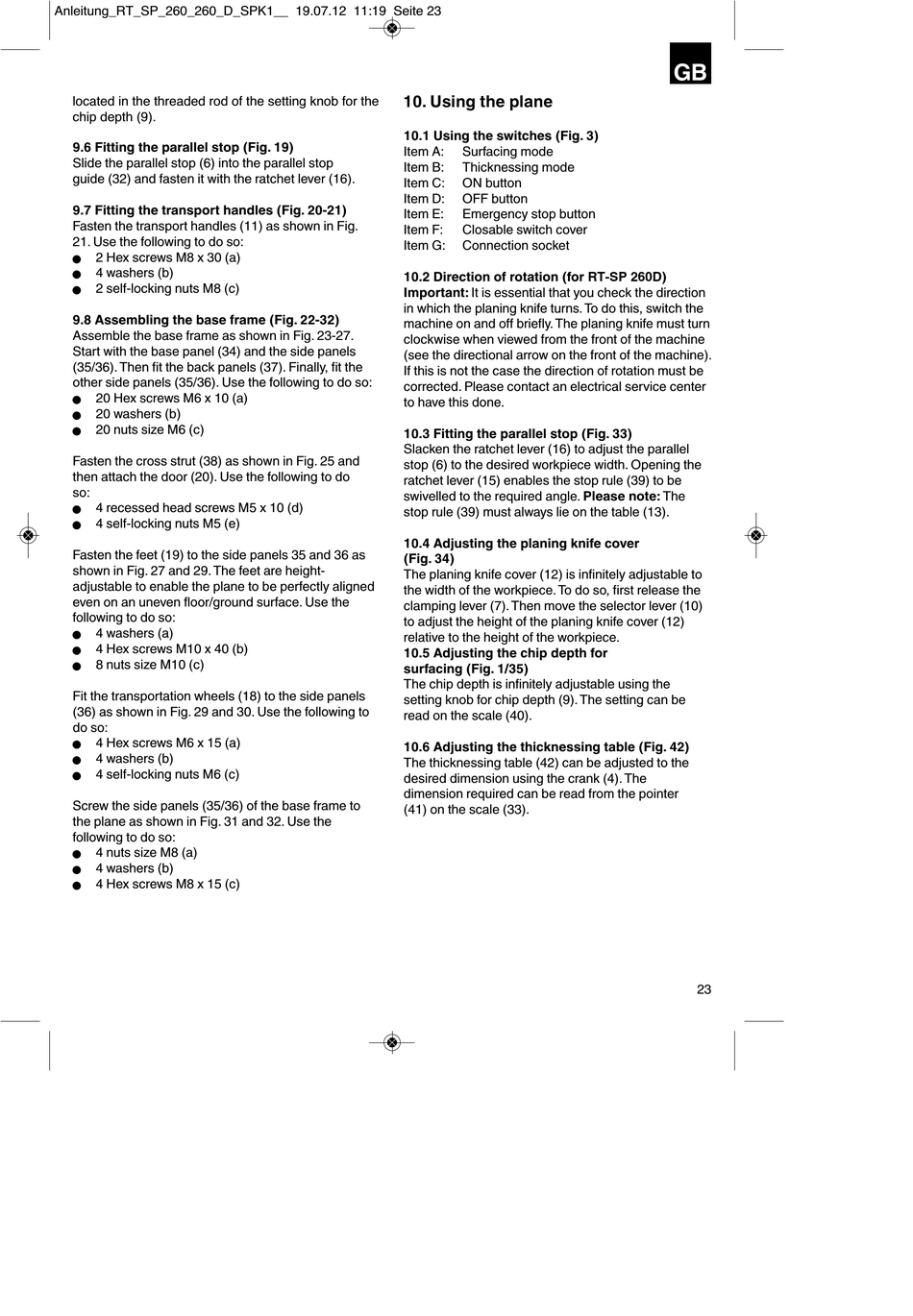

located in the threaded rod of the setting knob for the
chip depth (9).
9.6 Fitting the parallel stop (Fig. 19)
Slide the parallel stop (6) into the parallel stop
guide (32) and fasten it with the ratchet lever (16).
9.7 Fitting the transport handles (Fig. 20-21)
Fasten the transport handles (11) as shown in Fig.
21. Use the following to do so:
2 Hex screws M8 x 30 (a)
n
4 washers (b)
n
2 self-locking nuts M8 (c)
n
9.8 Assembling the base frame (Fig. 22-32)
Assemble the base frame as shown in Fig. 23-27.
Start with the base panel (34) and the side panels
(35/36). Then fit the back panels (37). Finally, fit the
other side panels (35/36). Use the following to do so:
20 Hex screws M6 x 10 (a)
n
20 washers (b)
n
20 nuts size M6 (c)
n
Fasten the cross strut (38) as shown in Fig. 25 and
then attach the door (20). Use the following to do
so:
4 recessed head screws M5 x 10 (d)
n
4 self-locking nuts M5 (e)
n
Fasten the feet (19) to the side panels 35 and 36 as
shown in Fig. 27 and 29. The feet are height-
adjustable to enable the plane to be perfectly aligned
even on an uneven floor/ground surface. Use the
following to do so:
4 washers (a)
n
4 Hex screws M10 x 40 (b)
n
8 nuts size M10 (c)
n
Fit the transportation wheels (18) to the side panels
(36) as shown in Fig. 29 and 30. Use the following to
do so:
4 Hex screws M6 x 15 (a)
n
4 washers (b)
n
4 self-locking nuts M6 (c)
n
Screw the side panels (35/36) of the base frame to
the plane as shown in Fig. 31 and 32. Use the
following to do so:
4 nuts size M8 (a)
n
4 washers (b)
n
4 Hex screws M8 x 15 (c)
n
10. Using the plane
10.1 Using the switches (Fig. 3)
Item A: Surfacing mode
Item B: Thicknessing mode
Item C: ON button
Item D: OFF button
Item E: Emergency stop button
Item F: Closable switch cover
Item G: Connection socket
10.2 Direction of rotation (for RT-SP 260D)
Important: It is essential that you check the direction
in which the planing knife turns. To do this, switch the
machine on and off briefly. The planing knife must turn
clockwise when viewed from the front of the machine
(see the directional arrow on the front of the machine).
If this is not the case the direction of rotation must be
corrected. Please contact an electrical service center
to have this done.
10.3 Fitting the parallel stop (Fig. 33)
Slacken the ratchet lever (16) to adjust the parallel
stop (6) to the desired workpiece width. Opening the
ratchet lever (15) enables the stop rule (39) to be
swivelled to the required angle. Please note: The
stop rule (39) must always lie on the table (13).
10.4 Adjusting the planing knife cover
(Fig. 34)
The planing knife cover (12) is infinitely adjustable to
the width of the workpiece. To do so, first release the
clamping lever (7). Then move the selector lever (10)
to adjust the height of the planing knife cover (12)
relative to the height of the workpiece.
10.5 Adjusting the chip depth for
surfacing (Fig. 1/35)
The chip depth is infinitely adjustable using the
setting knob for chip depth (9). The setting can be
read on the scale (40).
10.6 Adjusting the thicknessing table (Fig. 42)
The thicknessing table (42) can be adjusted to the
desired dimension using the crank (4). The
dimension required can be read from the pointer
(41) on the scale (33).
