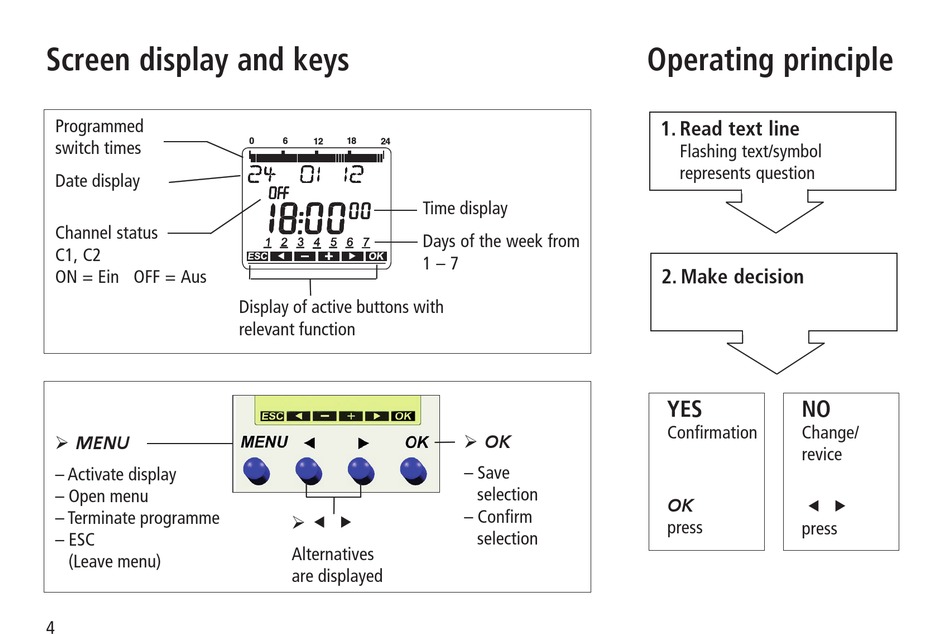

Screen display and keys
Programmed
switch times
Date display
Channel status
C1, C2
ON = Ein OFF = Aus
 MENU
– Activate display
– Open menu
– Terminate programme
– ESC
(Leave menu)
4
0 6 12 18 24
Display of active buttons with
relevant function
  
Alternatives
are displayed
Time display
Days of the week from
1 – 7
 OK
– Save
selection
– Confirm
selection
Operating principle
1. Read text line
Flashing text/symbol
represents question
2. Make decision
bbbb
YES NO
Confirmation Change/
revice
OK
 
bbbb
press
press
