Specifications
( Information in brackets refer to TX—25A3C )
Technische Daten
EURO-—1 Chassis
ORDER NO. SM-93022
Service Manual

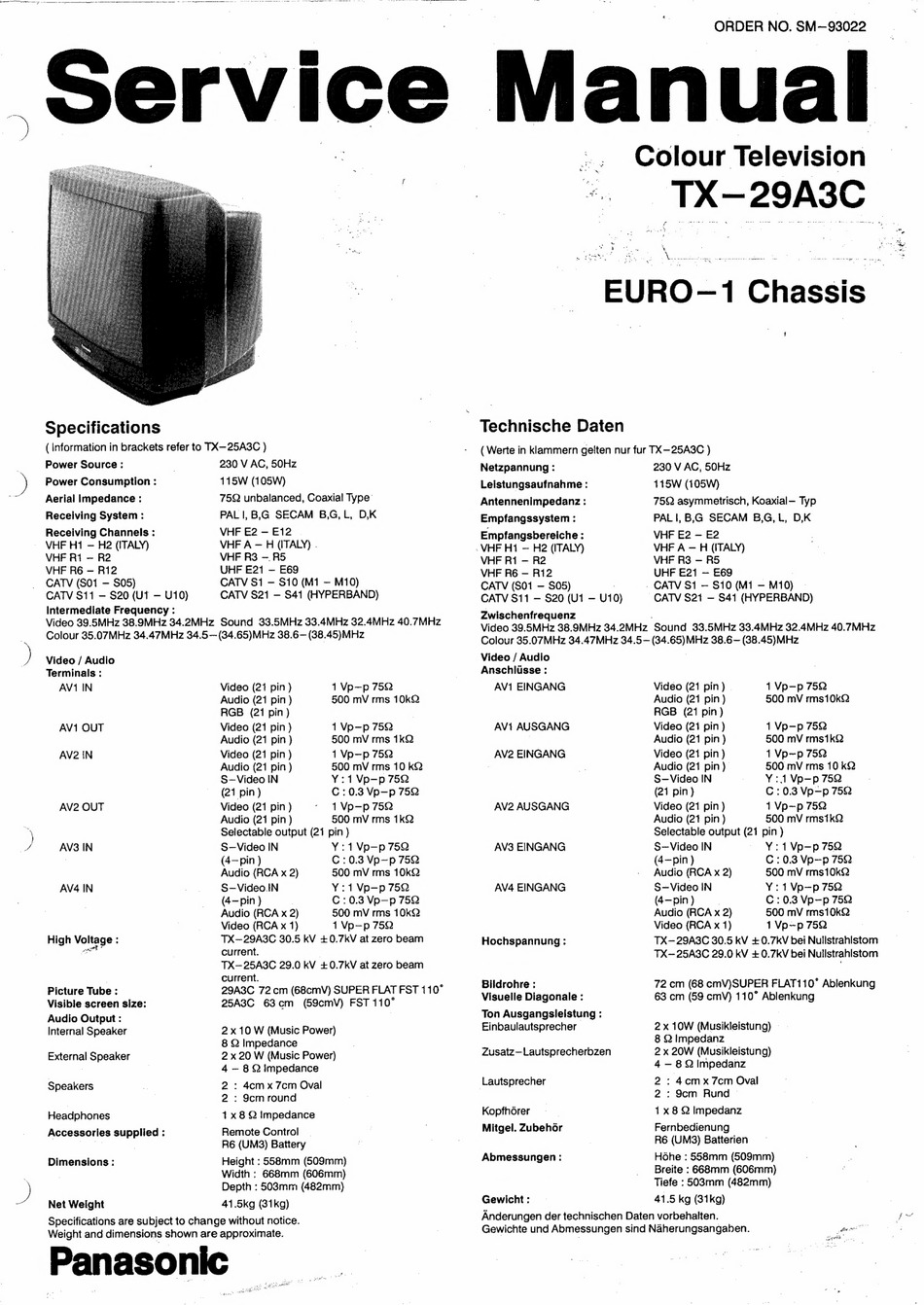

Colour Television
TX-29A3C
2
:
,
sea
Ae cast depiest
suimajerddale Somtihead
tee,
P
Pbsneeis
este Sateen
face Ue
'
Power Source:
Power Consumption :
Aerial Impedance :
Receiving System :
230 V AC, 50Hz
115W (105W)
75Q unbalanced, Coaxial Type'
PAL |,B,G SECAM
B,G,L, D,K
( Werte in klammern gelten nur fur TX—25A8C )
Netzpannung :
230 V AC, 50Hz
Leistungsaufnahme :
115W (105W)
Antennenimpedanz :
752 asymmetrisch, Koaxial— Typ
Receiving Channels :
VHF E2-—E12
|
VHF H1 — H2 (ITALY)
VHF A — H (ITALY) .
VHF R1 — R2
VHF R3 —. R5
VHF R6 — R12
UHF E21 — E69
CATV (S01 — S05)
CATV $11 -— $20 (UT — U10)
Intermediate Frequency :
Video 39.5MHz 38.9MHz 34.2MHz
Sound 33.5MHz 33.4MHz 32.4MHz 40.7MHz
Colour 35.07MHz 34.47MHz 34.5—(34.65)MHz 38.6— (38.45)MHz
CATV S1 — S10 (M1 — M10)
CATV $21 — $41 (HYPERBAND)
Video / Audio
Terminals :
AV1 IN
Video (21 pin)
1 Vp—p 75Q
Audio (21 pin)
500 mV rms 10k22
RGB
(21 pin)
AV1 OUT
Video (21 pin)
1 Vp—p 752
Audio (21 pin }
500 mV rms 1kQ2
AV2 IN
Video (21 pin)
1 Vp—p 752
Audio (21 pin)
500 mV rms 10 k&2
S-Video IN
Y:1Vp—p 75Q
(21 pin)
C:0.3 Vp—p 752
AV2 OUT
Video (21 pin)
-
1Vp—p 75Q
Audio (21 pin }
500 mV rms 1k$2
Selectable output (21 pin )
AV3 IN
S—Video IN
Y:1Vp—p 76Q
(4—pin )
C :0.3 Vp—p 752
Audio (RCA x 2)
500 mV rms 10kQ
AV4 IN
a
S—Video.!N
Y:1Vp—p 75Q
(4—pin )
C : 0.3 Vp—p 75Q
Audio (RCA x 2)
500 mV rms 10k
Video (RCA x 1)
1 Vp—p 75
TX—29A3C 30.5 kV +0.7kV at zero beam
current.
.
TX—25A3C 29.0 kV +0.7kV at zero beam
current.
High vee :
Picture Tube :
Visible screen size:
25A3C
63cm
(59cmV) FST 110°
29A3C 72cm (68cmV) SUPER FLAT FST 110°
CATV (S01 — S05)
CATV $11 — S20 (U1 — U10)
Zwischenfrequenz
Empfangssystem :
PAL |,B,G SECAM
8,G,L, D,K
Empfangsbereiche :
VHF E2 — E2
. VHF H1 — H2 (ITALY)
VHF A — H (ITALY)
VHF R1 — R2
VHF R3 — R5
VHF R6 — R12
UHF E21 — £69
- CATV S1 — S10 (M1 — M10)
CATV S2t — S41 (HYPERBAND)
Video 39.5MHz 38.9MHz 34.2MHz 'Sound 33.5MHz 33.4MHz 32.4MHz 40.7MHz
Colour 35.07MHZ 34.47MHz 34.5 — (34. one 38.6—(38.45)MHz
Video / Audio
Anschlusse :
AV1 EINGANG
Video (21 pin)
1 Vp-p 752
Audio (21 pin)
500 mV rms10k22
RGB
(21 pin)
AV1 AUSGANG
Video (21 pin )
1 Vp-p 75Q
.
Audio (21 pin )
500 mV rms1kQ
AV2 EINGANG
Video (21 pin)
1 Vp~p 752
|
Audio (21 pin)
500 mV rms 10 k22
S—Video IN
Y:1 Vp-p 752
(21 pin)
C:0.3 Vp—p 752
AV2 AUSGANG
Video (21 pin)
1 Vp~p 75Q
Audio (21 pin)
500 mV rmstkQ
Selectable output (21 pin )
AV3 EINGANG
S-Video IN
Y:1Vp—p 75Q
(4—pin)
C: 0.3 Vp-p 752
Audio (RCA x 2)
500 mV rms10k&2
AV4 EINGANG
S-Video IN
Y:1Vp—p 75Q
(4—pin )
;
C:0.3 Vp-p 75
Audio (RCA x 2)
500 mV rms10k&2
Video (RCA x 1)
1 Vp-p 75Q
Hochspannung:
TX-29A3C 30.5 kV + 0.7kV bei Nullstrahistom
TX—25A3C 29.0 kV +0.7kV bei Nullstrahistom
Bildrohre :
72 cm (68 cmV)SUPER FLAT110° Ablenkung
Visuelle Diagonale :
63 cm (59 cmV) 110° Ablenkung
Audio Output :
Internal Speaker
2 x 10 W (Music Power)
8 Q Impedance
Ton Ausgangsleistung :
Einbaulautsprecher
8 02 Impedanz
Zusatz—Lautsprecherbzen
2x 10W
(Musikieistung)
2 x 20W (Musikleistung)
2 x 20 W (Music Power)
External Speaker
4 — 8 Q impedance
Speakers
2: 4cmx 7cm Oval
|
2 : $cm round
Headphones
1 x 8 2 Impedance
Remote Control
Accessories supplied :
R6 (UM3) Battery
Dimensions :
Height : 558mm (509mm)
Width : 668mm (606mm)
Depth : 503mm (482mm)
Net Weight
41.5kg (31kg)
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
Panasonic
4 — 8 Q Impedanz
Lautsprecher
2 :
4cmx7cm Oval
2 : 9cm Rund
—
Kopfhorer
1x 8 Q Impedanz
Mitgel. Zubehor
Fernbedienung
R6 (UM3) Batterien
Abmessungen :
Hohe : 558mm (508mm)
Breite : 668mm (606mm)
Tiefe : 503mm (482mm)
Gewicht :
41.5 kg (31kg)
Anderungen der technischen Daten vorbehalten.
=
