TAPE PLAYER
Power source:
Output power:
Semiconductors:
Dimensions:
Weight:
Tape:
Frequency response:
Signal/noise ratio:
Turn the drum fully in the direction A) shown in Fig. 2—1
and stretch its cord over the parts in the numerical order.
The turn the tuning control shaft fully in the direction®)
shown in Fig. 2—1land fix its pointer as shown in Fig. 2—2.
FOR
A COMPLETE
DESCRIPTION
OF THE OPERATION
OF THIS UNIT,
PLEASE REFER TO THE OPERATION (OWNER'S) MANUAL.

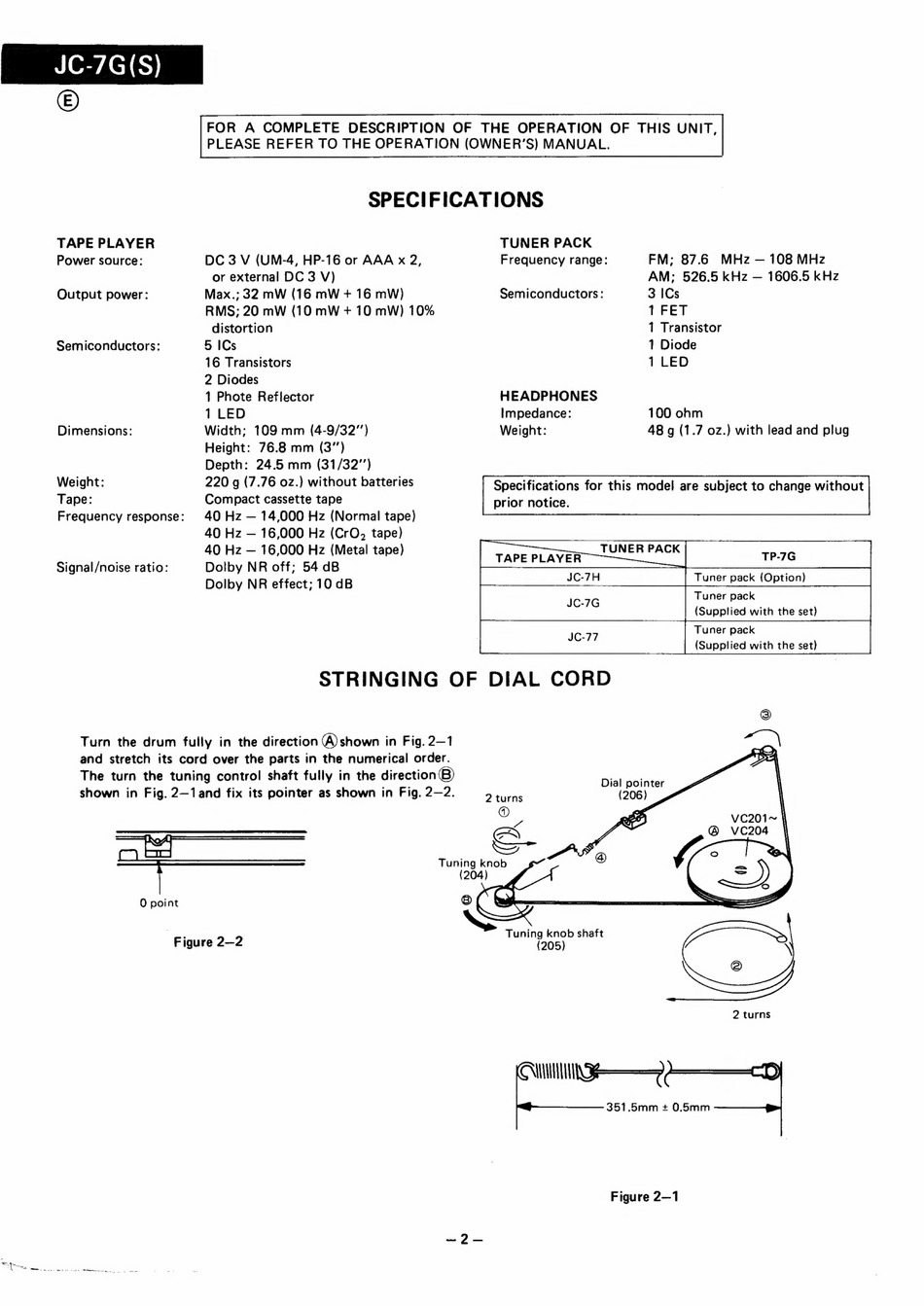

SPECIFICATIONS
DC 3 V (UM-4, HP-16 or AAA x 2,
or external DC 3 V)
Max.; 32 mW (16 mW + 16 mW)
RMS; 20 mW (10 mW + 10 mW) 10%
distortion
5 ICs
16 Transistors
2 Diodes
1 Phote Reflector
1 LED
Width;
109 mm (4-9/32")
Height: 76.8 mm (3")
Depth:
24.5 mm (31/32")
220 g (7.76 oz.) without batteries
Compact cassette tape
40 Hz — 14,000 Hz (Normal tape)
40 Hz — 16,000 Hz (CrO, tape)
40 Hz — 16,000 Hz (Metal tape)
Dolby NR off; 54 dB
Dolby NR effect; 10 dB
TUNER PACK
Frequency range:
FM; 87.6
MHz — 108 MHz
AM; 526.5 kHz — 1606.5 kHz
Semiconductors:
3 ICs
1 FET
1 Transistor
1 Diode
1 LED
HEADPHONES
Impedance:
100 ohm
Weight:
48 g (1.7 oz.) with lead and plug
Specifications for this model are subject to change without
prior notice.
TAPE PLAYER = UNE REACK
TP-7G
Tuner pack (Option)
Tuner pack
JC-7G
JC-77
Tuner pack |
(Supplied with the set)
STRINGING
OF DIAL CORD
———
0 point
Figure 2—2
Tuning knob
(204)
Dial pointer
2 turns
(206) }
Tuning knob shaft
2 turns
NMS?
351.5mm
+ 0.5mm
Figure 2—1
