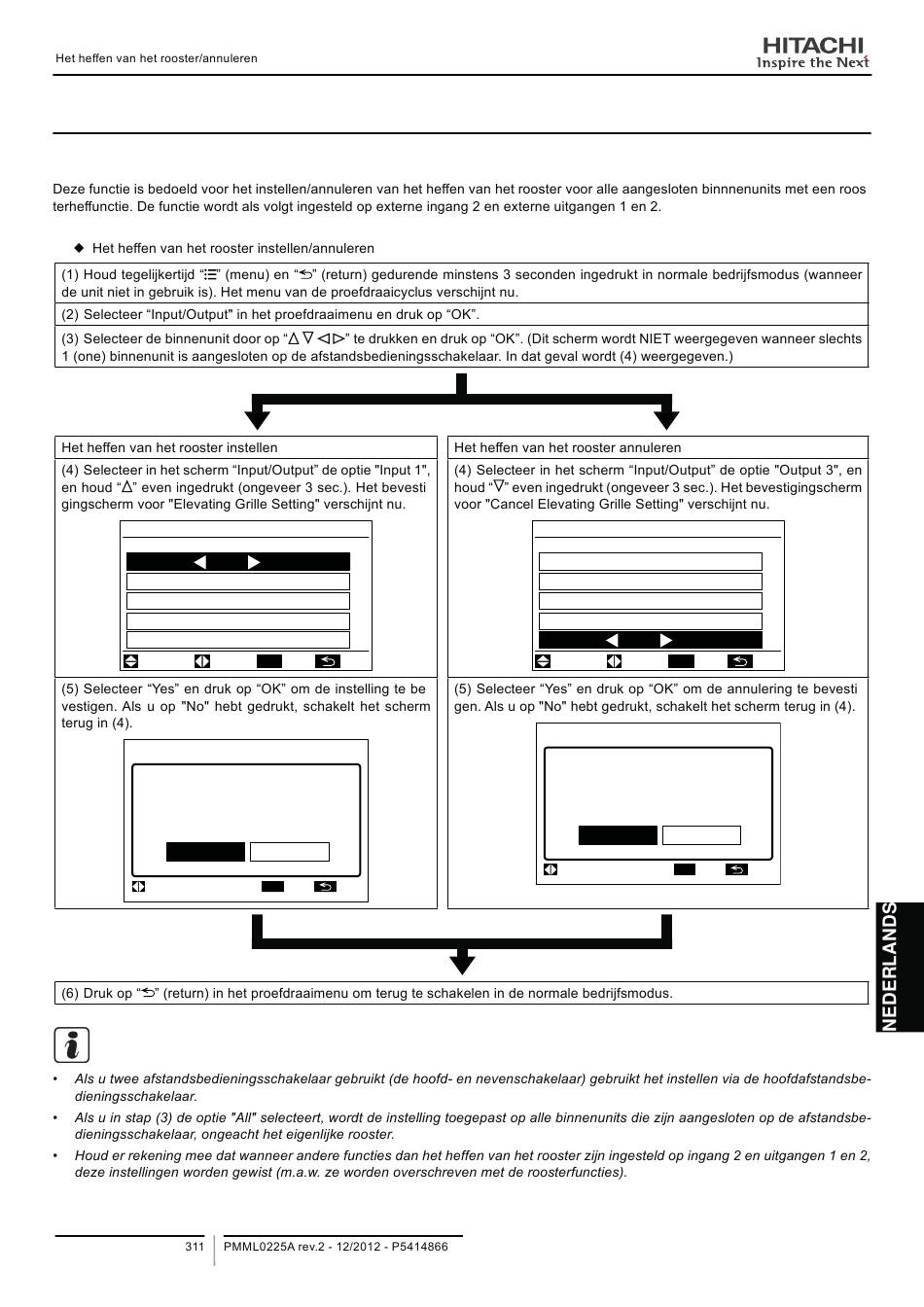

7 HET HEFFEN VAN HET ROOSTER/ANNULEREN
Input/Output:01-03
Item Setting
Input 1 00
Input 2 00
Output1 01
Output2 00
Output3 00
SEL. ADJ
Elevating Grille Setting:01-03
Set input/output setting
for elevating grille?
Yes
SEL.
O P M E R K I N G
-
Connector
CN3 1-2
CN3 2-3
CN7 1-2
CN7 1-3
CN8 1-2
OK ENT. RTN.
-
No
OK ENT. RTN.
Input/Output:01-03
Item Setting Connector
Input 1 00 CN3 1-2
Input 2 00 CN3 2-3
Output1 01 CN7 1-2
Output2 00 CN7 1-3
Output3 00 CN8 1-2
SEL. ADJ OK ENT.
Cancel Elevating Grille Setting:01-03
Cancel input/output setting
for elevating grille?
Yes No
SEL. OK ENT.
-
RTN.
-
