Electrical connection
6.2.2 CYK11 and fixed cable sensor
The cable colors correspond to those of the sensors so direct through-cabling is possible.
Some fixed cable sensors work with the Memosens operating voltage and are connected
like a Memosens sensor (e.g. CLS50D). Before commissioning, check which power supply
your sensor works with and connect the sensor accordingly.

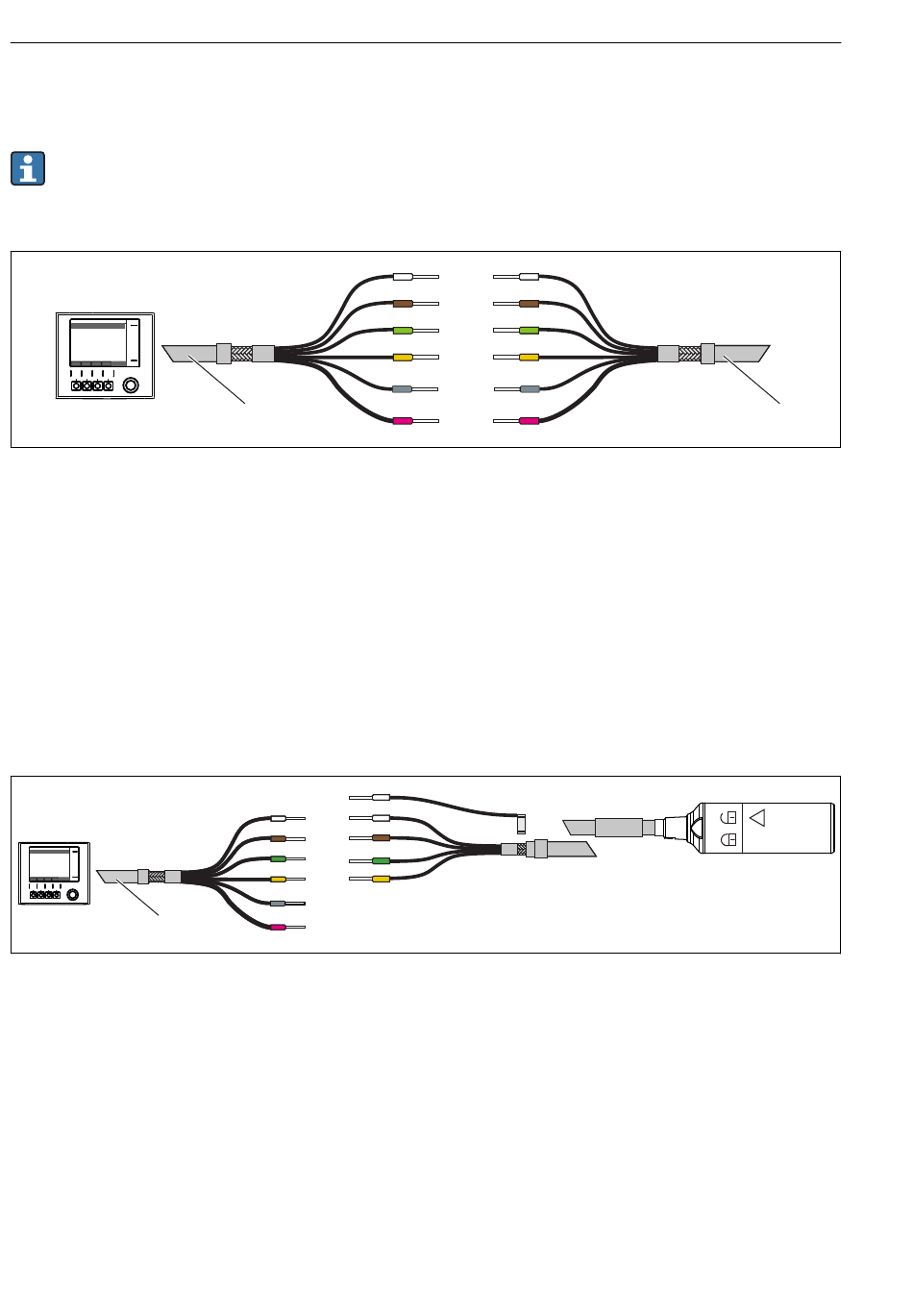

 8 Electrical connection, CYK11 and fixed cable sensor
1 CYK11
2 Fixed cable sensor
6.2.3 CYK11 as extension for CYK10
The "GY" and "PK" wires are not required here. Route these to potentially isolated terminals.
Do not leave them exposed in the cable box!
The shields of both cables must be connected. In the case of the cable-cable junction box, this
is performed automatically via the shield contact in the cable glands.
1
 9 Electrical connection, CYK11 as extension for CYK10
1 CYK11
32
1
WH WH
BN BN
GN GN
YE YE
GY GY
PK PK
WH
BN
GN
YE
GY
PK
/ Y E G N
2
A0031084
A0031074
