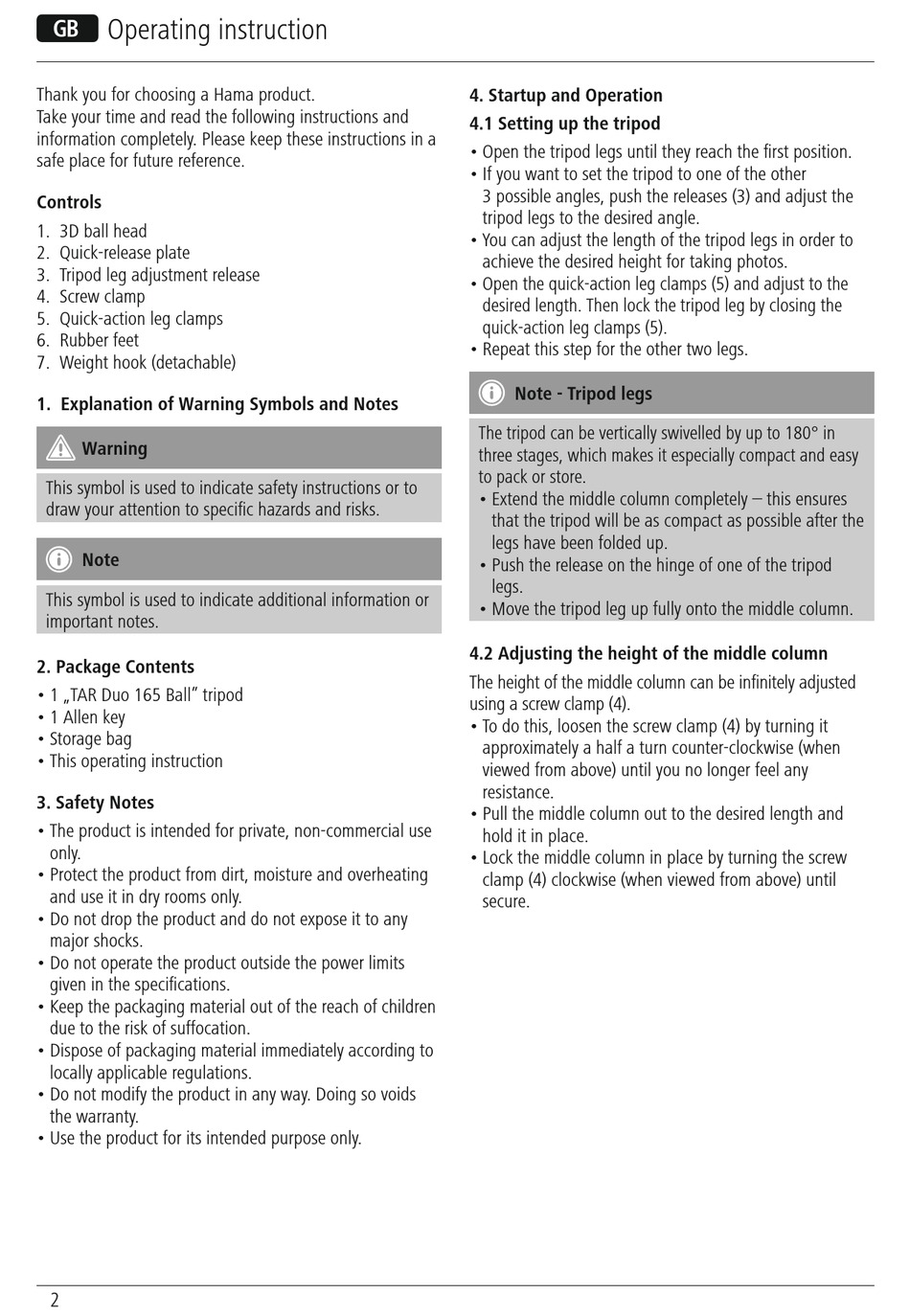

G Operating instruction
Thank you for choosing a Hama product.
Take your time and read the following instructions and
information completely. Please keep these instructions in a
safe place for future reference.
Controls
1. 3D ball head
2. Quick-release plate
3. Tripod leg adjustment release
4. Screw clamp
5. Quick-action leg clamps
6. Rubber feet
7. Weight hook (detachable)

1. Explanation of Warning Symbols and Notes

Warning
This symbol is used to indicate safety instructions or to
draw your attention to specific hazards and risks.
Note
This symbol is used to indicate additional information or
important notes.
2. Package Contents
• 1 „TAR Duo 165 Ball" tripod
• 1 Allen key
• Storage bag
• This operating instruction
3. Safety Notes
• The product is intended for private, non-commercial use
only.
• Protect the product from dirt, moisture and overheating
and use it in dry rooms only.
• Do not drop the product and do not expose it to any
major shocks.
• Do not operate the product outside the power limits
given in the specifications.
• Keep the packaging material out of the reach of children
due to the risk of suffocation.
• Dispose of packaging material immediately according to
locally applicable regulations.
• Do not modify the product in any way. Doing so voids
the warranty.
• Use the product for its intended purpose only.
2
4. Startup and Operation

4.1 Setting up the tripod

• Open the tripod legs until they reach the first position.
• If you want to set the tripod to one of the other
3 possible angles, push the releases (3) and adjust the
tripod legs to the desired angle.
• You can adjust the length of the tripod legs in order to
achieve the desired height for taking photos.
• Open the quick-action leg clamps (5) and adjust to the
desired length. Then lock the tripod leg by closing the
quick-action leg clamps (5).
• Repeat this step for the other two legs.
Note - Tripod legs
The tripod can be vertically swivelled by up to 180° in
three stages, which makes it especially compact and easy
to pack or store.
• Extend the middle column completely – this ensures
that the tripod will be as compact as possible after the
legs have been folded up.
• Push the release on the hinge of one of the tripod
legs.
• Move the tripod leg up fully onto the middle column.
4.2 Adjusting the height of the middle column
The height of the middle column can be infinitely adjusted
using a screw clamp (4).
• To do this, loosen the screw clamp (4) by turning it
approximately a half a turn counter-clockwise (when
viewed from above) until you no longer feel any
resistance.
• Pull the middle column out to the desired length and
hold it in place.
• Lock the middle column in place by turning the screw
clamp (4) clockwise (when viewed from above) until
secure.
