ZEITRAUM SIMPLE COMFORT Aufbauanleitung Seite 2

SIMPLE COMFORT / BUTTON
Assembly instructions 05/2021
TOOLS:
allen key SW4 und SW5 (enclosed), crosstip screwdriver
8x XS steel bolts
8x connector housings
8x grub screws
1x countersunk bolt (M8x50)
24x confirmat screws

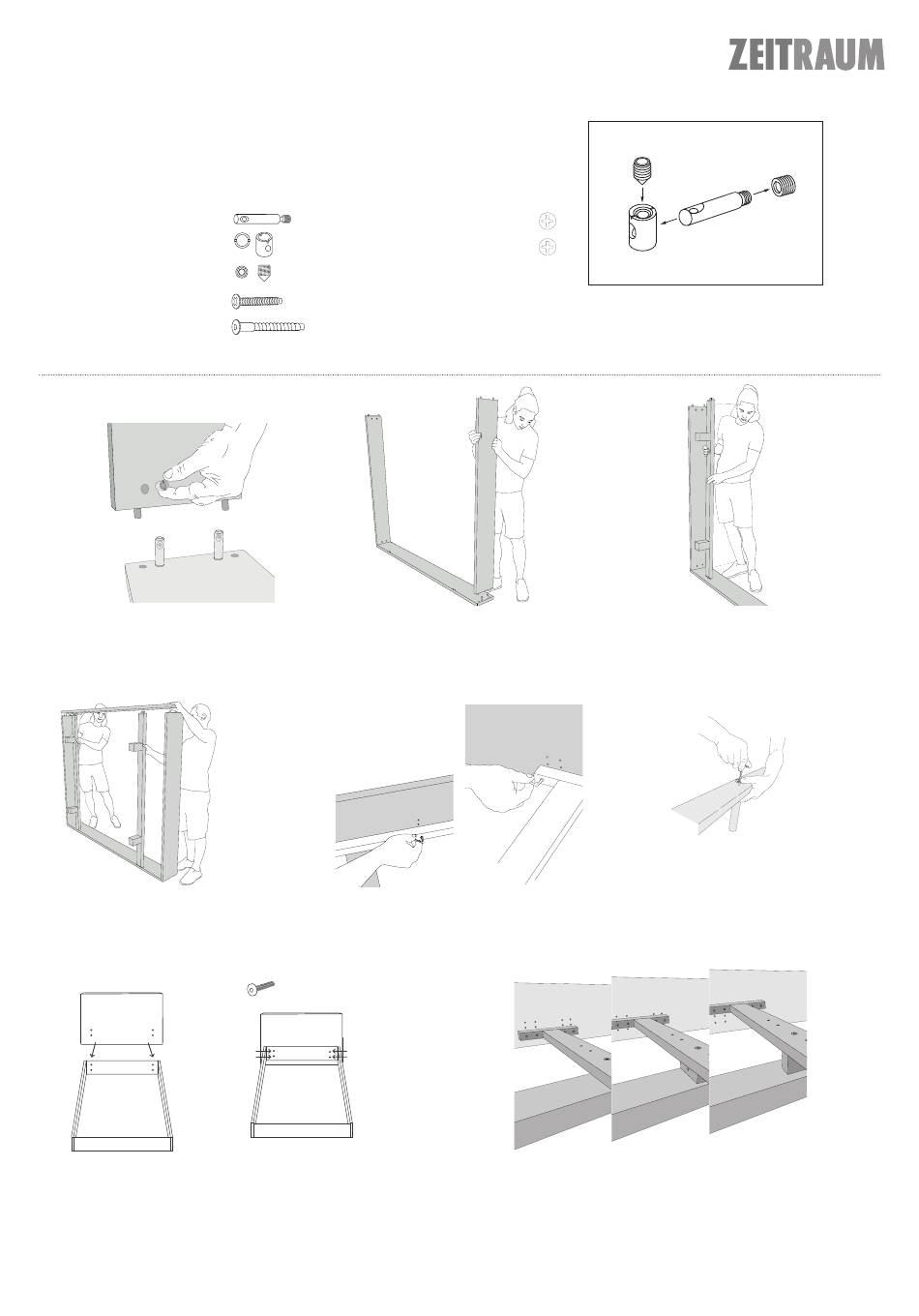

1. Screw the bolts into the side rails and insert
the connector housing into the head and foot
sections. Align bolts and housing correctly!
4. Connect and fix the second side rail.
7. Position upholstered headboard behind the bed frame.
Screw countersunk screws (M8x60) through the frame into
the provided holes.
ZEITRAUM GmbH Äußere Münchner Straße 2
•
2x countersunk bolts (5x60)
2x countersunk bolts (5x80)
2x center feet (13/17 cm), adjustable
2x distance block
4x countersunk bolts (M8x60)
Please assemble the bed on a soft surface (e.g. a carpet or blanket) to avoid damages.
2. Attach the head and foot sections to the
side rail and fix them with grub screws.
5. Fix the side supports using confirmat
screws. For mattresses 140 cm or wider,
fasten the center rail.
D-82515 Wolfratshausen Tel + 49 (0) 8171 – 418130
• •
Watch this video for further information on the metal fitting:
https://www.youtube.com/watch?v=ioIUTDqtvgE
3. Attach the two bed feet to the crossbars
and mount them to the bed side.
6. Choose the correct center feet and con-
nect it to the center rail with the counter-
sunk screw (M8x50). Mind the right length.
without spacer block: insertion depth 14,5 cm
horizontal spacer block: insertion depth 12,5 cm
standing spacer block: insertion depth 10,5 cm
Use the countersunk screws in the correct length (5x60/80)
to fix the spacer block.
