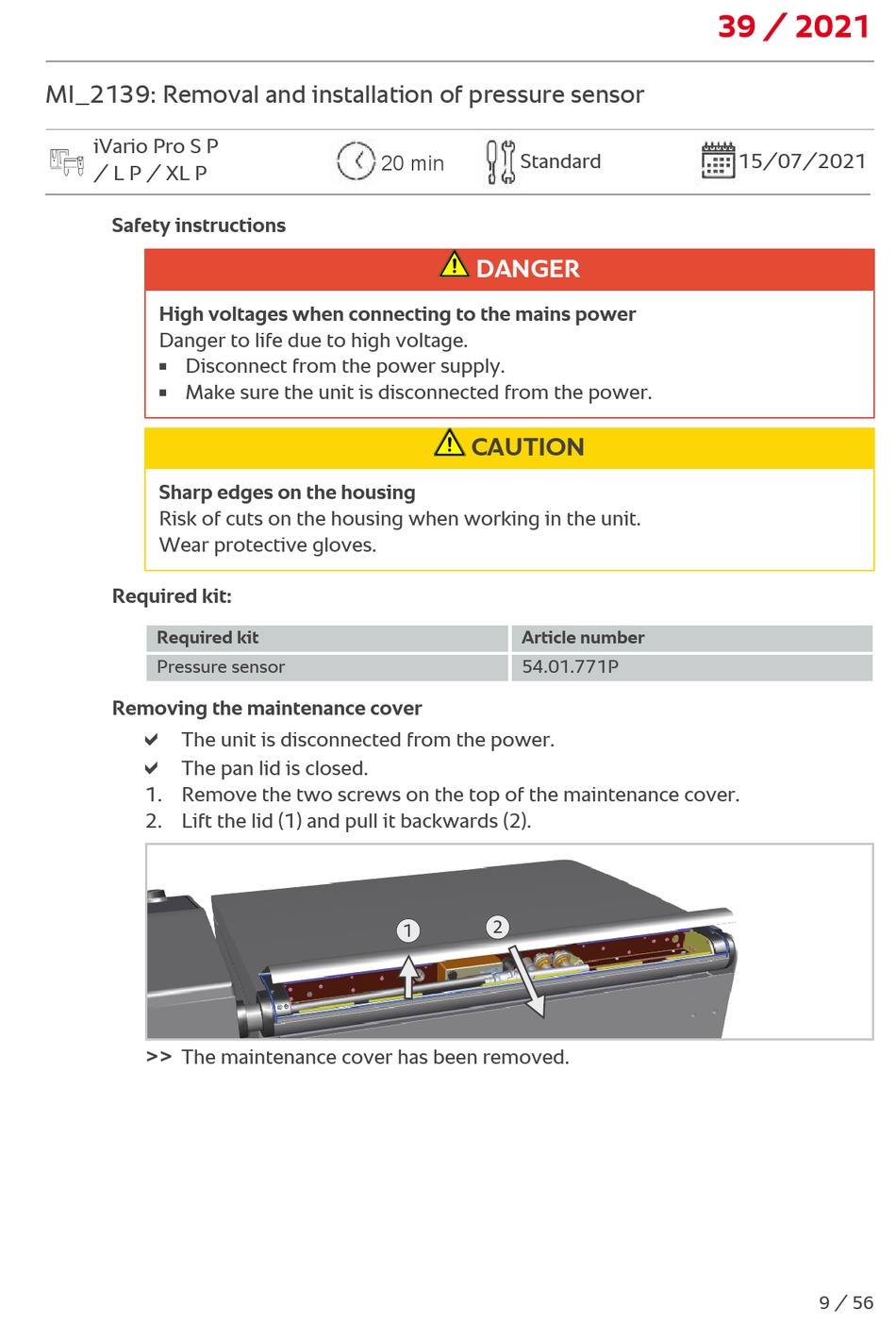

MI_2139: Removal and installation of pressure sensor
iVario Pro S P
/ L P / XL P
1 MI_2139: Removal and installation of pressure sensor
Safety instructions
High voltages when connecting to the mains power
Danger to life due to high voltage.
Disconnect from the power supply.
n
Make sure the unit is disconnected from the power.
n
Sharp edges on the housing
Risk of cuts on the housing when working in the unit.
Wear protective gloves.
Required kit:
Required kit
Pressure sensor
Removing the maintenance cover
a
The unit is disconnected from the power.
a
The pan lid is closed.
1. Remove the two screws on the top of the maintenance cover.
2. Lift the lid (1) and pull it backwards (2).
>>
The maintenance cover has been removed.
Standard
20 min
DANGER
CAUTION
Article number
54.01.771P
2
1
39 / 2021
15/07/2021
9 / 56
