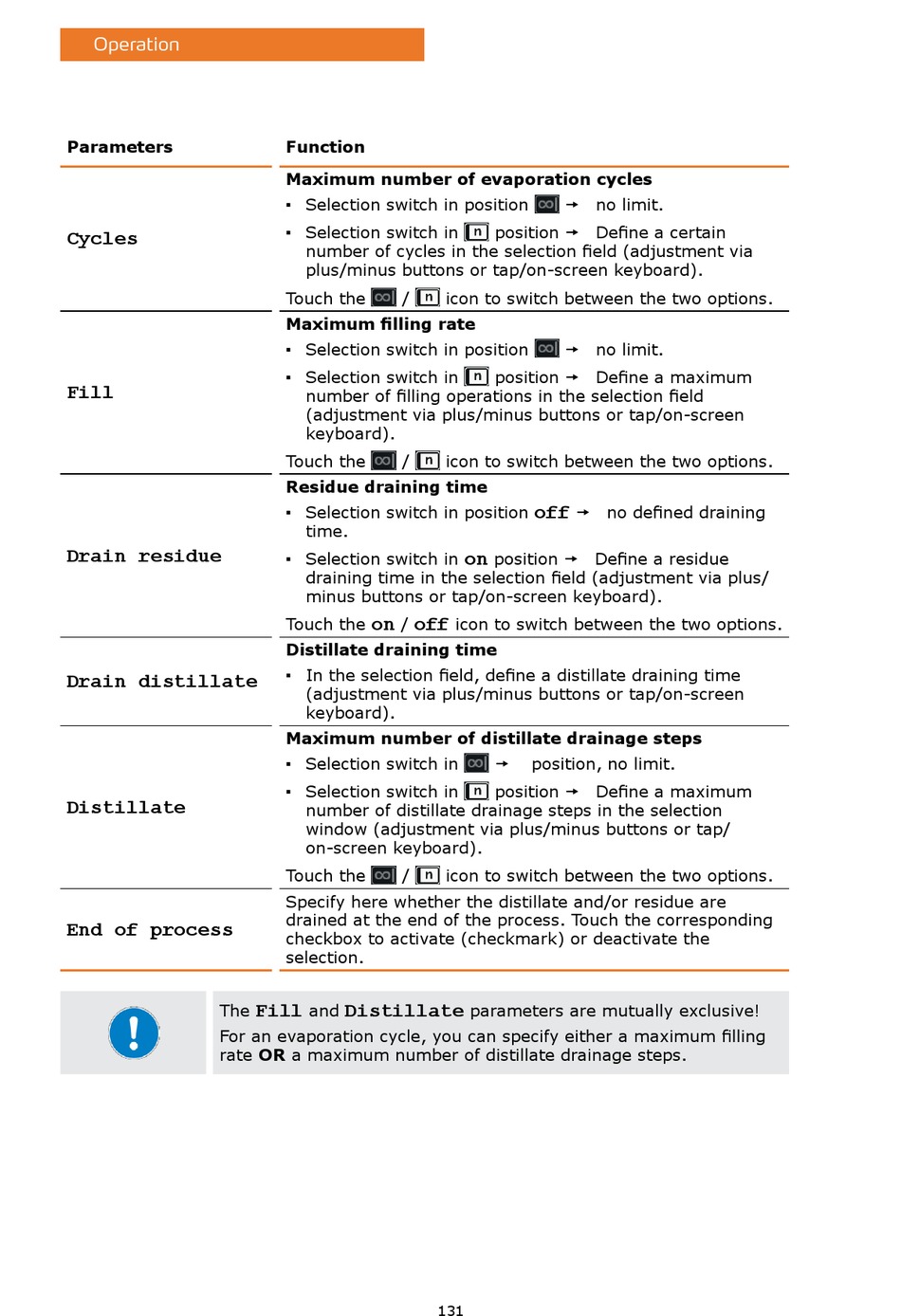

Heidolph Hei-VOLUME Distimatic Pro Betriebsanleitung Seite 131

Operation
Parameters
Cycles
Fill
Drain residue
Drain distillate
Distillate
End of process
The
For an evaporation cycle, you can specify either a maximum filling
rate OR a maximum number of distillate drainage steps.
Function
Maximum number of evaporation cycles
▪ Selection switch in position
▪ Selection switch in
number of cycles in the selection field (adjustment via
plus/minus buttons or tap/on-screen keyboard).
Touch the /
Maximum filling rate
▪ Selection switch in position
▪ Selection switch in
number of filling operations in the selection field
(adjustment via plus/minus buttons or tap/on-screen
keyboard).
Touch the /
Residue draining time
▪ Selection switch in position
time.
▪ Selection switch in
draining time in the selection field (adjustment via plus/
minus buttons or tap/on-screen keyboard).
on off
Touch the /
Distillate draining time
▪ In the selection field, define a distillate draining time
(adjustment via plus/minus buttons or tap/on-screen
keyboard).
Maximum number of distillate drainage steps
▪ Selection switch in
▪ Selection switch in
number of distillate drainage steps in the selection
window (adjustment via plus/minus buttons or tap/
on-screen keyboard).
Touch the /
Specify here whether the distillate and/or residue are
drained at the end of the process. Touch the corresponding
checkbox to activate (checkmark) or deactivate the
selection.
Fill Distillate
and
 no limit.
position  Define a certain
icon to switch between the two options.
 no limit.
position  Define a maximum
icon to switch between the two options.
off
 no defined draining
on
position  Define a residue
icon to switch between the two options.
position, no limit.

position  Define a maximum
icon to switch between the two options.
parameters are mutually exclusive!
