USER INSTRUCTIONS / FUNCTIONS

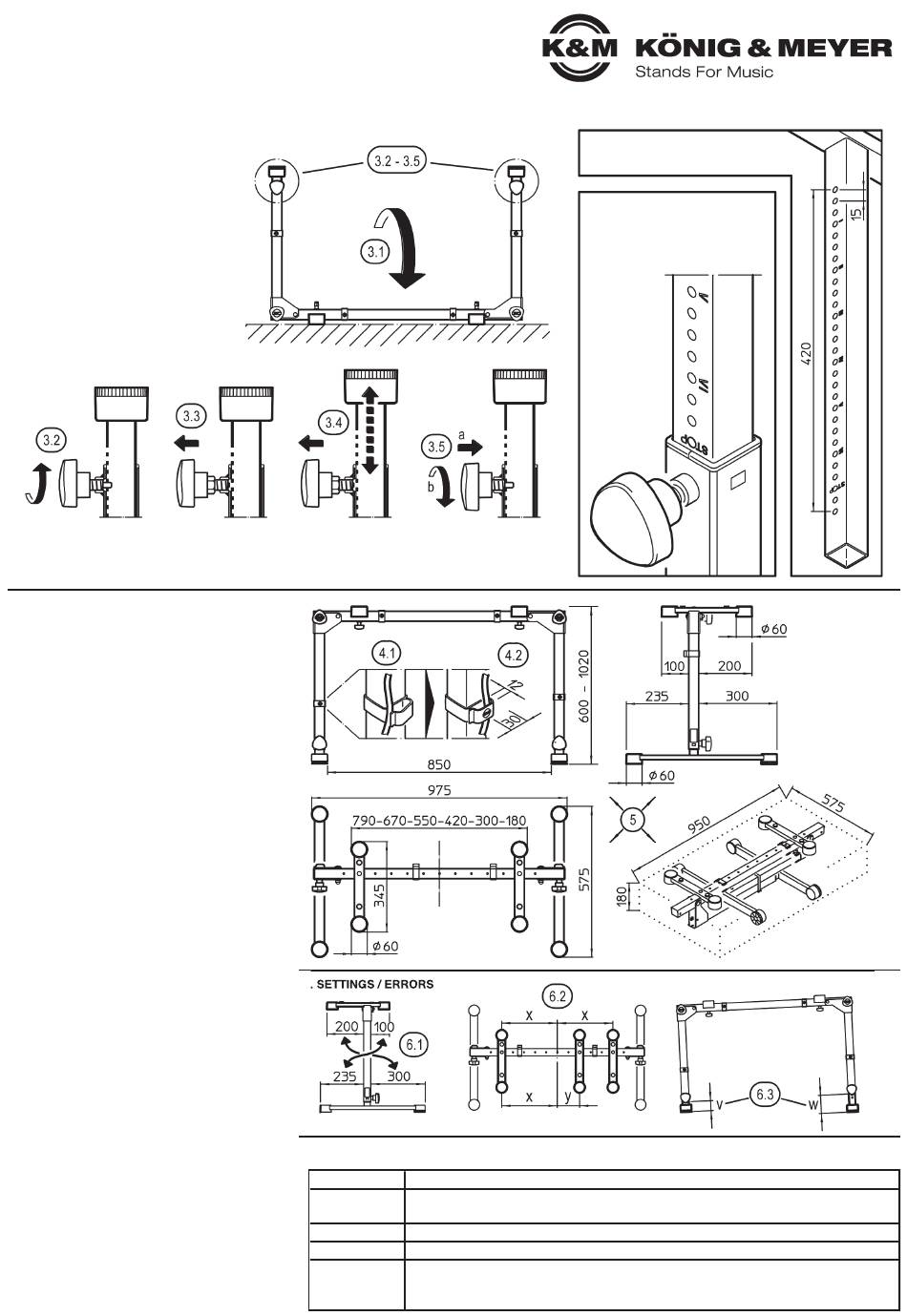

3. HEIGHT ADJUSTMENT
3.
of the BASE TUBES
Recommended procedure is to adjust
one tube after the other by :
3.1 Turning the keyboard table over and
3.1
placing it on the supports
3.2 Loosen spring-loaded clamping knob k
3.2
slightly
3.3 Pull handle of the clamping screw
3.4 Extend respectively retract base tube
3.5 Engage the bolts and tighten the
3.5
spring-loaded clamping knob k
NOTE:
For reasons of security both base tubes
must always have the same height.
Unscrew spring-
Pull handle until the
loaded clamping
safety bolts are no
knob k slightly
longer engaged
4. FIXING CABLES
The assembly of the cable clamps is illustrated and
described in chapter 2.10.
4.1 Simply push the cable through the slot of the cable
4.1
clamp
4.2 The cable clamps measures 12 x 30 mm inside
5. DIMENSIONS
HEIGHT:
600 - 1020 mm (in 15 mm increments)
STAND:
width 975mm, depth 575 mm
SUPPORT:
width max. 790 mm, depth 345 mm
TRANSPORT: 950 x 575 x 180 mm (min. folding size)
6. SETTINGS / ERRORS
Incorrect settings may compromise the security of
the installation and must be corrected:
6.1 The longer part of the support arms must not be
6.1
placed across the short part of the base tubes.
6.2 The two supports should not be placed off-centre
6.2
(x:y), but symmetrically to the middle (x:x).
6.3 Both stand tubes must always have equal heights
6.3
(see chapter 3).
CHECK, MAINTAIN
- Incorrect settings during maintenance can cause
-
health hazards arising from: -edges, -loosened threads,
-
-movable parts, etc. To avoid this, take due care and work
-
where necessary with protective equipment (e.g. gloves)
- Clean with a damp cloth. Do not use abrasive
-
cleaning agents
FAULT-FINDING (F) and REPAIR (R)
F: The base cannot be fully unfolded
F:
R: Unscrew the spring-loaded clamping knob 2.17
F: R:
until the thread no longer protrudes into the inside
F: R:
of the tube 2.16
F: Keyboard table wobbles
F:
R: Check surface; align adjustment plate 2.12
F: Keyboard wobbles
F:
B: Check keyboard bottom side;
F: B:
If necessary, reset support arms c
F: Keyboard table stands lopsided
F:
R: Adjust base tubes to same height (see 6.3)
F: Instrument is off-centre
F:
R: Correct position of support arms if
F: R:
necessary 6.1 and 6.2
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
18820-019-55/76/91 Rev.06 03-80-384-00 5/22
Keep handle pulled
Click safety bolt in the
and retract or
desired borehole and
extend the tubes
retighten spring-loaded
clamping knob
6. SETTINGS / ERRORS
TECHNISCHE DATEN / SPEZIFIKATIONEN
Colour variants
18820-019-55 black, -76 pure white, -91 ruby red
Tubes, angle: steel, powder coated / Screws, washers: galvanized
Material
Plastic parts: PA, PE, PC, TPE, PU, POM
Packaging
Single cardboard: 970 x 630 x 75 mm
Weight
10.8 kg
18811 Stacker 1, 18822 Stacker 2, 18814 Adapter, 18805 Sheet music and concept holder,
Accessories
18817 Universal holder, 18815 Laptop holder, 18806 Trolley for Keyboard Stands,
(optional)
18829 Carrying case,197... Tablet PC holders, 211... Boom arms
The height of the table can be adjusted in
29 steps with a distance of 15 mm each.
Every fourth borehole of the tubes
is marked with a roman numeral;
this making it much easier to adjust
both tubes to the required equal
height.
The STOP
