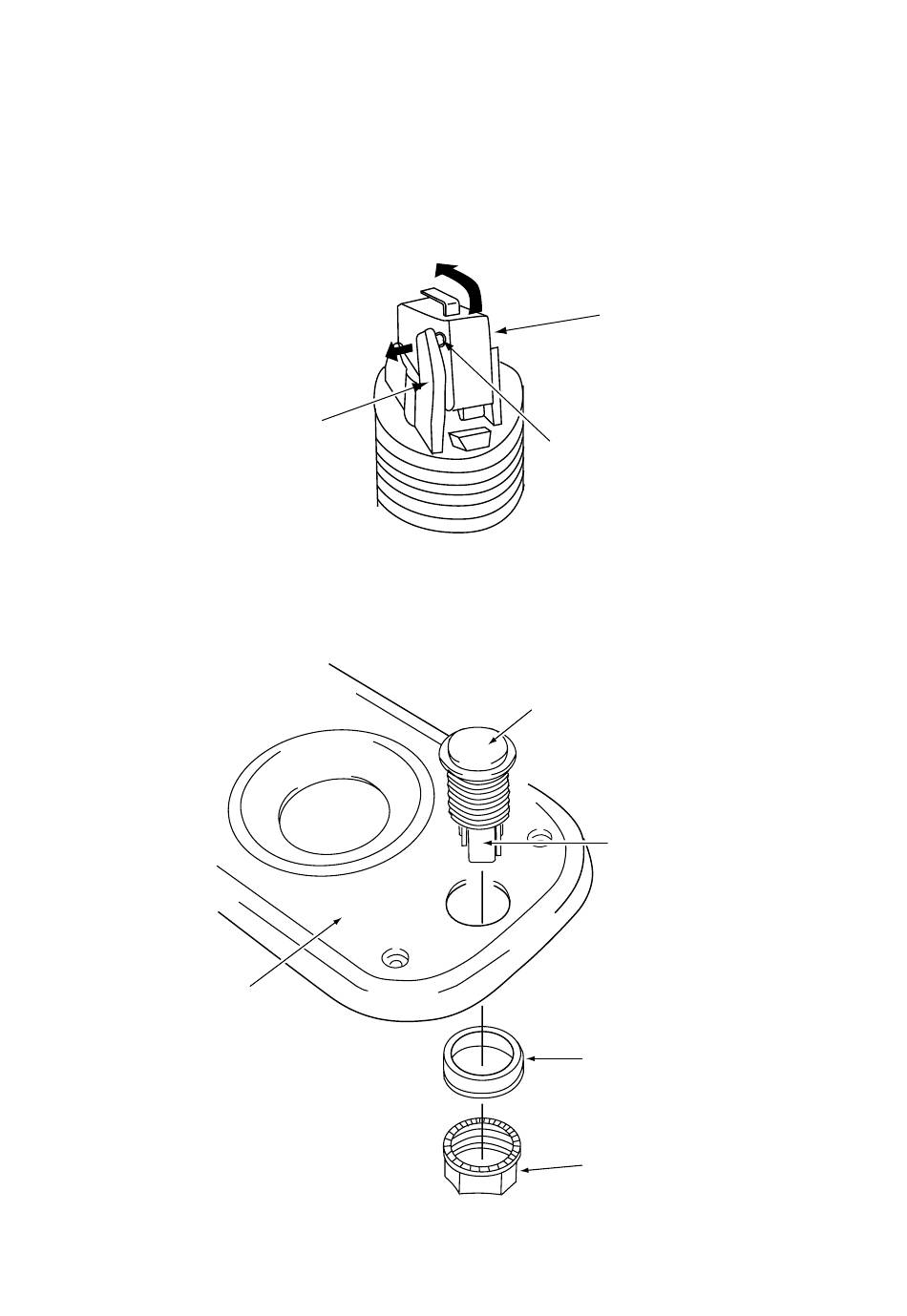

Replacing the Start Switch

1. Remove the Joystick Assy.
2. Disconnect the connectors from the microswitch.
3. Pull the long retaining arm away from the microswitch to disengage the lug and
tilt the microswitch backwards.
Long retaining arm
3. To remove the Button assy from the Joystick Cover remove the retaining nut and
adaptor washer and lift the Button assy out from the top.
Joystick cover
4. Reassemble in reverse order.
(see 8-6 page 67)
Start button assy
Page 70
Microswitch
Lug
Microswitch
Adapter washer
Retaining nut
