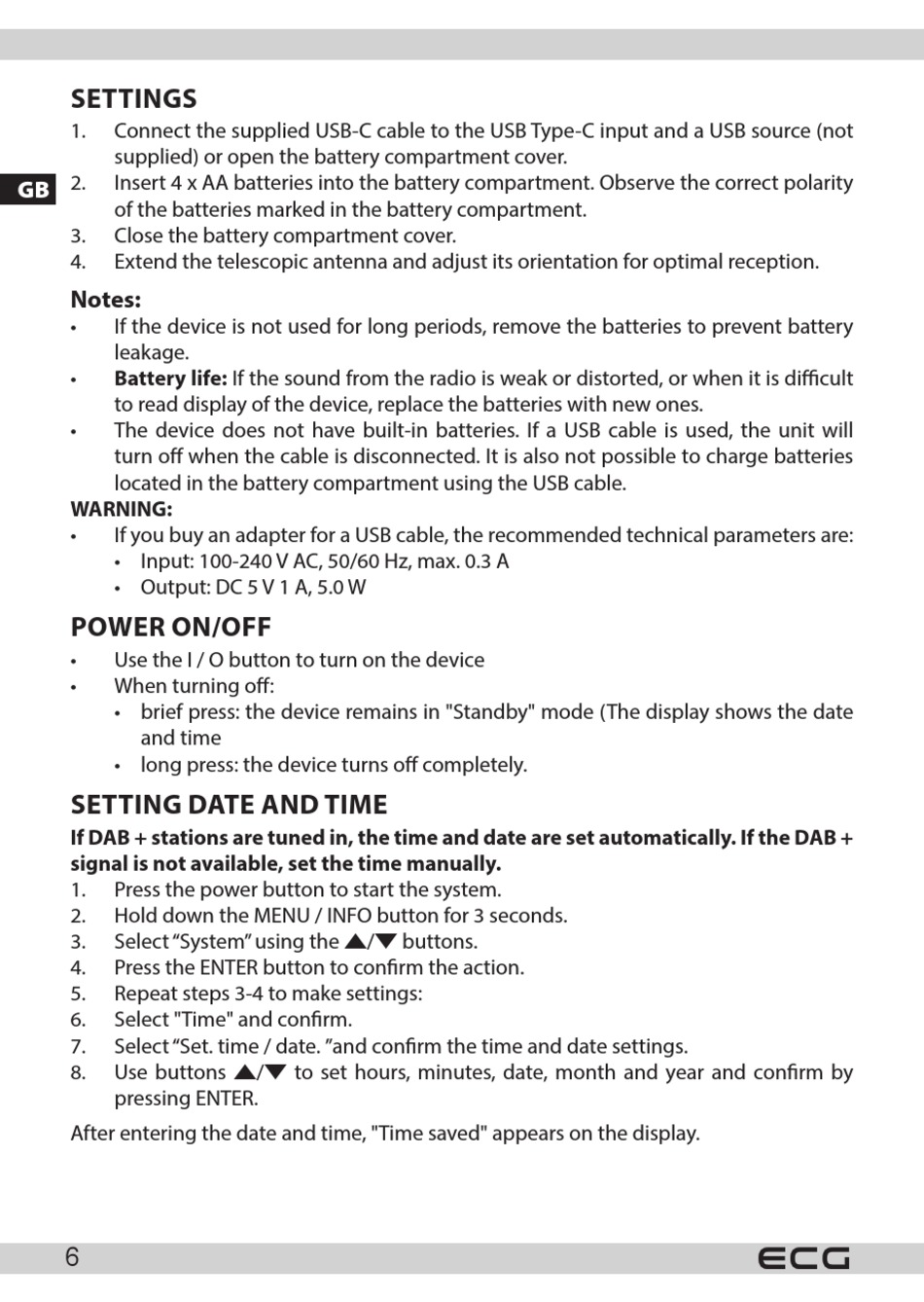

SETTINGS
1. Connect the supplied USB-C cable to the USB Type-C input and a USB source (not
supplied) or open the battery compartment cover.
2. Insert 4 x AA batteries into the battery compartment. Observe the correct polarity
GB
of the batteries marked in the battery compartment.
3. Close the battery compartment cover.
4. Extend the telescopic antenna and adjust its orientation for optimal reception.
Notes:
• If the device is not used for long periods, remove the batteries to prevent battery
leakage.
Battery life: If the sound from the radio is weak or distorted, or when it is difficult
•
to read display of the device, replace the batteries with new ones.
• The device does not have built-in batteries. If a USB cable is used, the unit will
turn off when the cable is disconnected. It is also not possible to charge batteries
located in the battery compartment using the USB cable.
WARNING:
• If you buy an adapter for a USB cable, the recommended technical parameters are:
• Input: 100-240 V AC, 50/60 Hz, max. 0.3 A
• Output: DC 5 V 1 A, 5.0 W

POWER ON/OFF

• Use the I / O button to turn on the device
• When turning off:
• brief press: the device remains in "Standby" mode (The display shows the date
and time
• long press: the device turns off completely.

SETTING DATE AND TIME

If DAB + stations are tuned in, the time and date are set automatically. If the DAB +
signal is not available, set the time manually.
1. Press the power button to start the system.
2. Hold down the MENU / INFO button for 3 seconds.
3. Select "System" using the v/V buttons.
4. Press the ENTER button to confirm the action.
5. Repeat steps 3-4 to make settings:
6. Select "Time" and confirm.
7. Select "Set. time / date. "and confirm the time and date settings.
8. Use buttons v/V to set hours, minutes, date, month and year and confirm by
pressing ENTER.
After entering the date and time, "Time saved" appears on the display.
6
