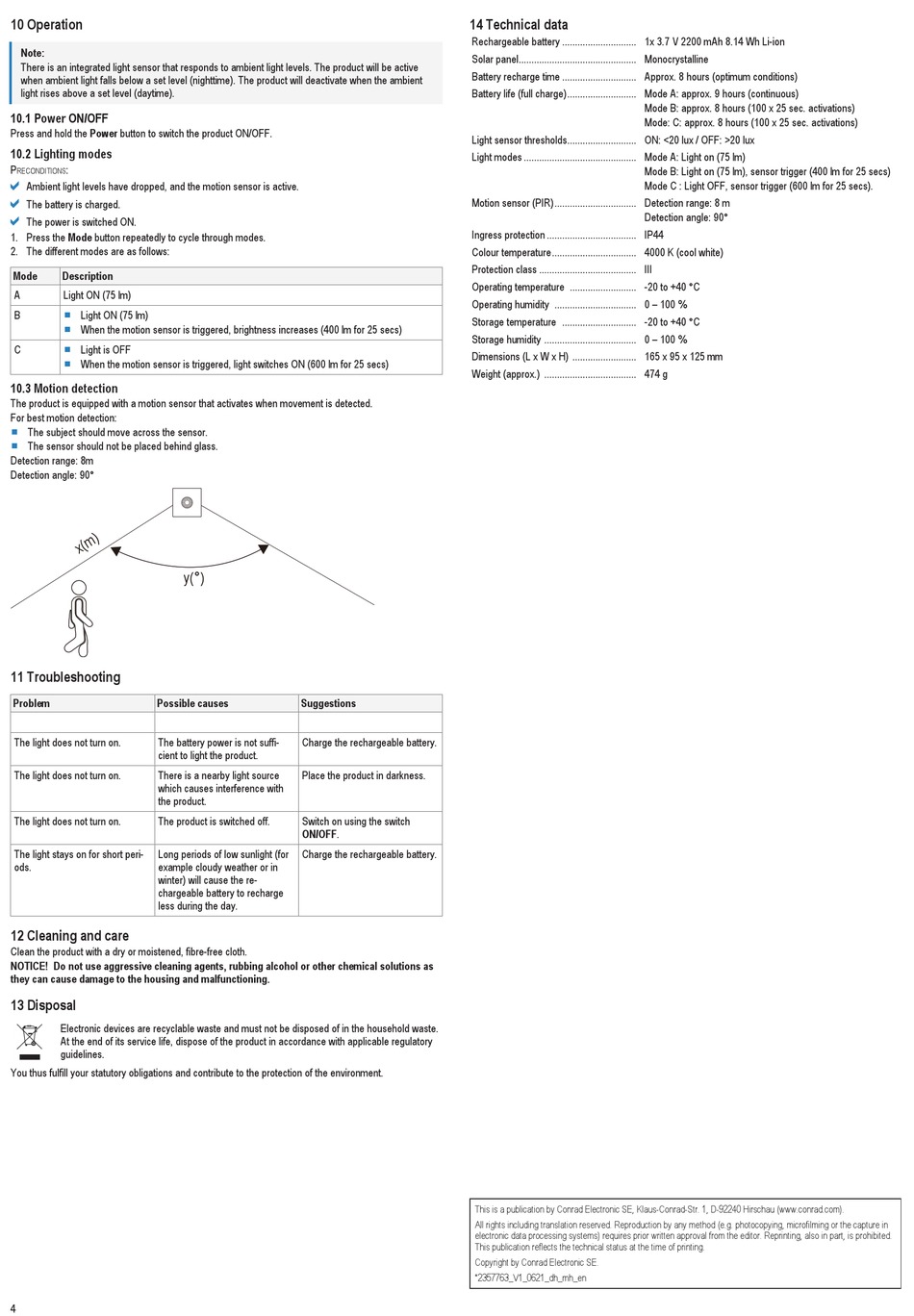

10 Operation

Note:
There is an integrated light sensor that responds to ambient light levels. The product will be active
when ambient light falls below a set level (nighttime). The product will deactivate when the ambient
light rises above a set level (daytime).
10.1 Power ON/OFF
Press and hold the Power button to switch the product ON/OFF.
10.2 Lighting modes
P :
RECONDITIONS
a
Ambient light levels have dropped, and the motion sensor is active.
a
The battery is charged.
a
The power is switched ON.
1. Press the Mode button repeatedly to cycle through modes.
2. The different modes are as follows:
Mode Description
A Light ON (75 lm)
■
B Light ON (75 lm)
■
When the motion sensor is triggered, brightness increases (400 lm for 25 secs)
■
C Light is OFF
■
When the motion sensor is triggered, light switches ON (600 lm for 25 secs)
10.3 Motion detection
The product is equipped with a motion sensor that activates when movement is detected.
For best motion detection:
■
The subject should move across the sensor.
■
The sensor should not be placed behind glass.
Detection range: 8m
Detection angle: 90°

11 Troubleshooting

Problem Possible causes
The light does not turn on. The battery power is not suffi-
cient to light the product.
The light does not turn on. There is a nearby light source
which causes interference with
the product.
The light does not turn on. The product is switched off.
The light stays on for short peri- Long periods of low sunlight (for
ods. example cloudy weather or in
winter) will cause the re-
chargeable battery to recharge
less during the day.
12 Cleaning and care
Clean the product with a dry or moistened, fibre-free cloth.
NOTICE! Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions as
they can cause damage to the housing and malfunctioning.
13 Disposal
Electronic devices are recyclable waste and must not be disposed of in the household waste.
At the end of its service life, dispose of the product in accordance with applicable regulatory
guidelines.
You thus fulfill your statutory obligations and contribute to the protection of the environment.
4
y(°)
Suggestions
Charge the rechargeable battery.
Place the product in darkness.
Switch on using the switch
ON/OFF.
Charge the rechargeable battery.

14 Technical data

Rechargeable battery ............................. 1x 3.7 V 2200 mAh 8.14 Wh Li-ion
Solar panel.............................................. Monocrystalline
Battery recharge time ............................. Approx. 8 hours (optimum conditions)
Battery life (full charge)........................... Mode A: approx. 9 hours (continuous)
Light sensor thresholds........................... ON: <20 lux / OFF: >20 lux
Light modes ............................................ Mode A: Light on (75 lm)
Motion sensor (PIR)................................ Detection range: 8 m
Ingress protection ................................... IP44
Colour temperature................................. 4000 K (cool white)
Protection class ...................................... III
Operating temperature .......................... -20 to +40 °C
Operating humidity ................................ 0 – 100 %
Storage temperature ............................. -20 to +40 °C
Storage humidity .................................... 0 – 100 %
Dimensions (L x W x H) ......................... 165 x 95 x 125 mm
Weight (approx.) .................................... 474 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in
electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited.
This publication reflects the technical status at the time of printing.
Copyright by Conrad Electronic SE.
*2357763_V1_0621_dh_mh_en
Mode B: approx. 8 hours (100 x 25 sec. activations)
Mode: C: approx. 8 hours (100 x 25 sec. activations)
Mode B: Light on (75 lm), sensor trigger (400 lm for 25 secs)
Mode C : Light OFF, sensor trigger (600 lm for 25 secs).
Detection angle: 90°
