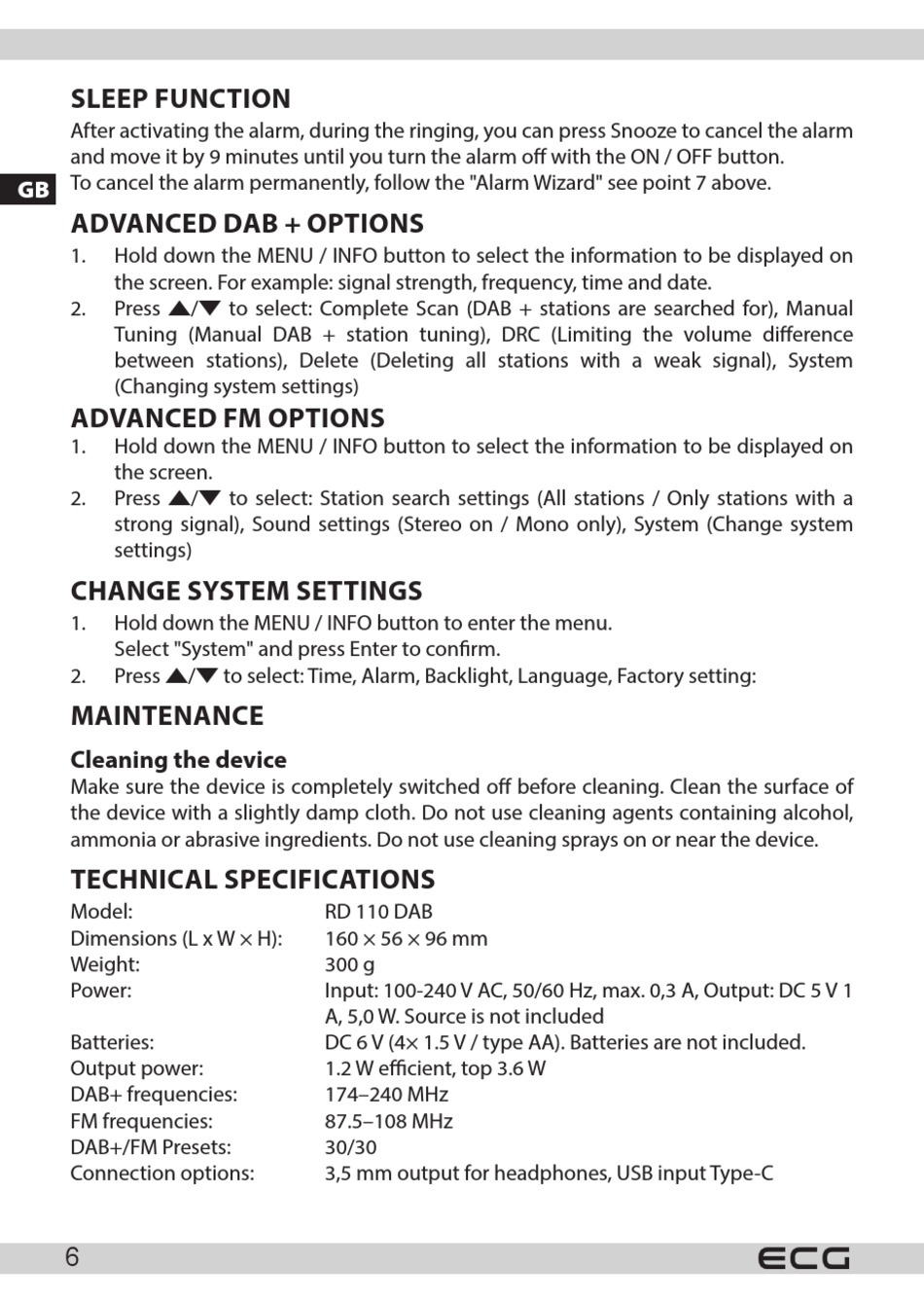

Sleep Function; Maintenance; Technical Specifications - Ecg Rd 110 Dab Bedienungsanleitung

SLEEP FUNCTION

After activating the alarm, during the ringing, you can press Snooze to cancel the alarm
and move it by 9 minutes until you turn the alarm off with the ON / OFF button.
To cancel the alarm permanently, follow the "Alarm Wizard" see point 7 above.
GB
ADVANCED DAB + OPTIONS
1. Hold down the MENU / INFO button to select the information to be displayed on
the screen. For example: signal strength, frequency, time and date.
2. Press v/V to select: Complete Scan (DAB + stations are searched for), Manual
Tuning (Manual DAB + station tuning), DRC (Limiting the volume difference
between stations), Delete (Deleting all stations with a weak signal), System
(Changing system settings)
ADVANCED FM OPTIONS
1. Hold down the MENU / INFO button to select the information to be displayed on
the screen.
2. Press v/V to select: Station search settings (All stations / Only stations with a
strong signal), Sound settings (Stereo on / Mono only), System (Change system
settings)
CHANGE SYSTEM SETTINGS
1. Hold down the MENU / INFO button to enter the menu.
Select "System" and press Enter to confirm.
2. Press v/V to select: Time, Alarm, Backlight, Language, Factory setting:

MAINTENANCE

Cleaning the device
Make sure the device is completely switched off before cleaning. Clean the surface of
the device with a slightly damp cloth. Do not use cleaning agents containing alcohol,
ammonia or abrasive ingredients. Do not use cleaning sprays on or near the device.

TECHNICAL SPECIFICATIONS

Model:
Dimensions (L x W × H):
Weight:
Power:
Batteries:
Output power:
DAB+ frequencies:
FM frequencies:
DAB+/FM Presets:
Connection options:
6
RD 110 DAB
160 × 56 × 96 mm
300 g
Input: 100-240 V AC, 50/60 Hz, max. 0,3 A, Output: DC 5 V 1
A, 5,0 W. Source is not included
DC 6 V (4× 1.5 V / type AA). Batteries are not included.
1.2 W efficient, top 3.6 W
174–240 MHz
87.5–108 MHz
30/30
3,5 mm output for headphones, USB input Type-C
