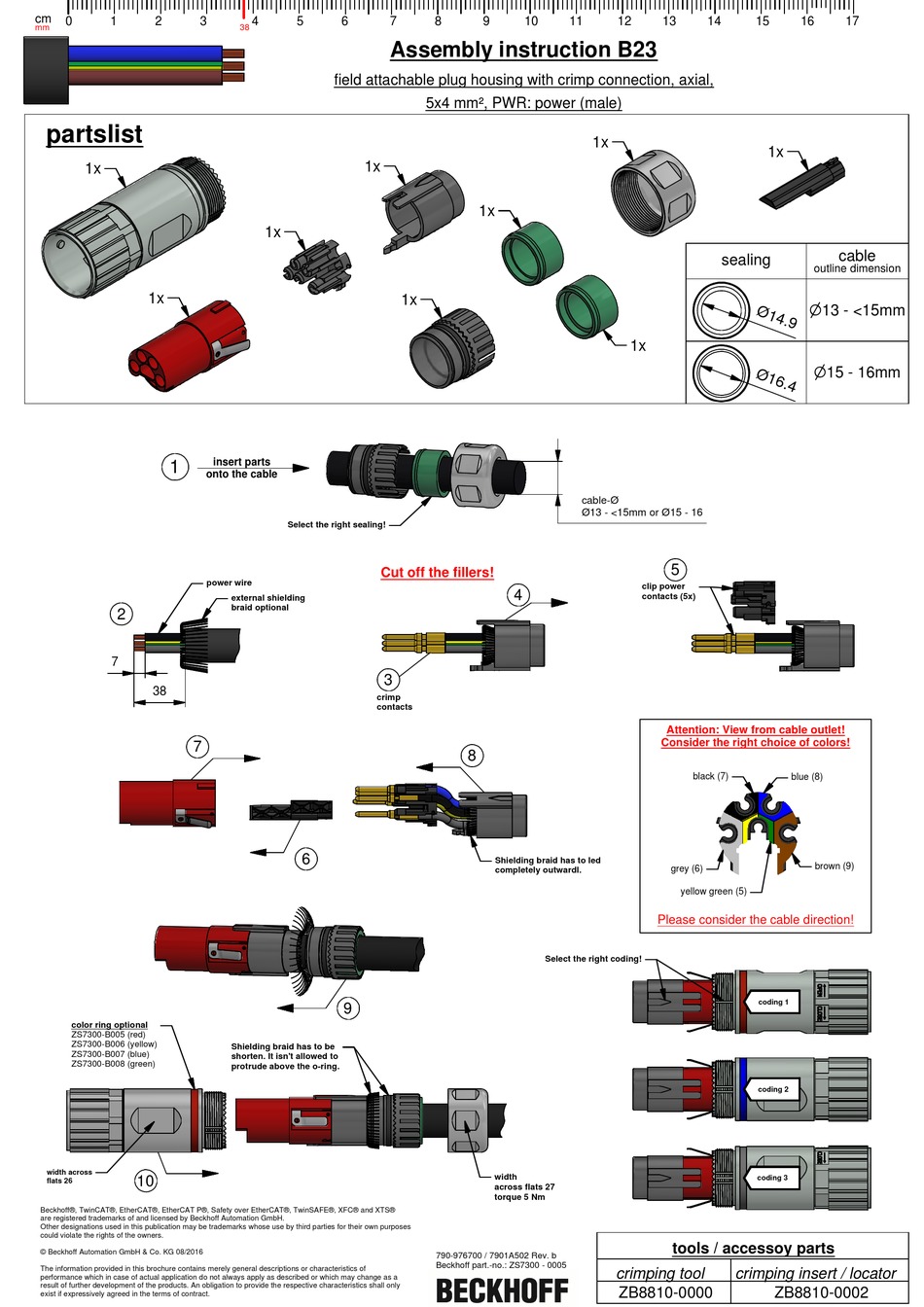

Beckhoff B23 Montageanleitung Seite 2

cm
0 1 2 3
mm
partslist
1x
1x
1
onto the cable
power wire
2
7
38
7
color ring optional
ZS7300-B005 (red)
ZS7300-B006 (yellow)
ZS7300-B007 (blue)
ZS7300-B008 (green)
width across
10
flats 26
Beckhoff®, TwinCAT®, EtherCAT®, EtherCAT P®, Safety over EtherCAT®, TwinSAFE®, XFC® and XTS®
are registered trademarks of and licensed by Beckhoff Automation GmbH.
Other designations used in this publication may be trademarks whose use by third parties for their own purposes
could violate the rights of the owners.
© Beckhoff Automation GmbH & Co. KG 08/2016
The information provided in this brochure contains merely general descriptions or characteristics of
performance which in case of actual application do not always apply as described or which may change as a
result of further development of the products. An obligation to provide the respective characteristics shall only
exist if expressively agreed in the terms of contract.
4 5 6
38
field attachable plug housing with crimp connection, axial,
1x
1x
insert parts
Select the right sealing!
Cut off the fillers!
external shielding
braid optional
3
crimp
contacts
6
9
Shielding braid has to be
shorten. It isn't allowed to
protrude above the o-ring.
7 8 9 10
Assembly instruction B23
5x4 mm², PWR: power (male)
1x
1x
4
8
Shielding braid has to led
completely outwardl.
Select the right coding!
width
across flats 27
torque 5 Nm
790-976700 / 7901A502 Rev. b
Beckhoff part.-no.: ZS7300 - 0005
11 12 13 14
1x
sealing
1x
cable-Ø
Ø13 - <15mm or Ø15 - 16
5
clip power
contacts (5x)
Attention: View from cable outlet!
Consider the right choice of colors!
black (7)
grey (6)
yellow green (5)
Please consider the cable direction!
tools / accessoy parts
crimping tool crimping insert / locator
ZB8810-0000
15 16 17
1x
cable
outline dimension
n
13 - <15mm
n
15 - 16mm
blue (8)
brown (9)
coding 1
coding 2
coding 3
ZB8810-0002
