Configuration examples

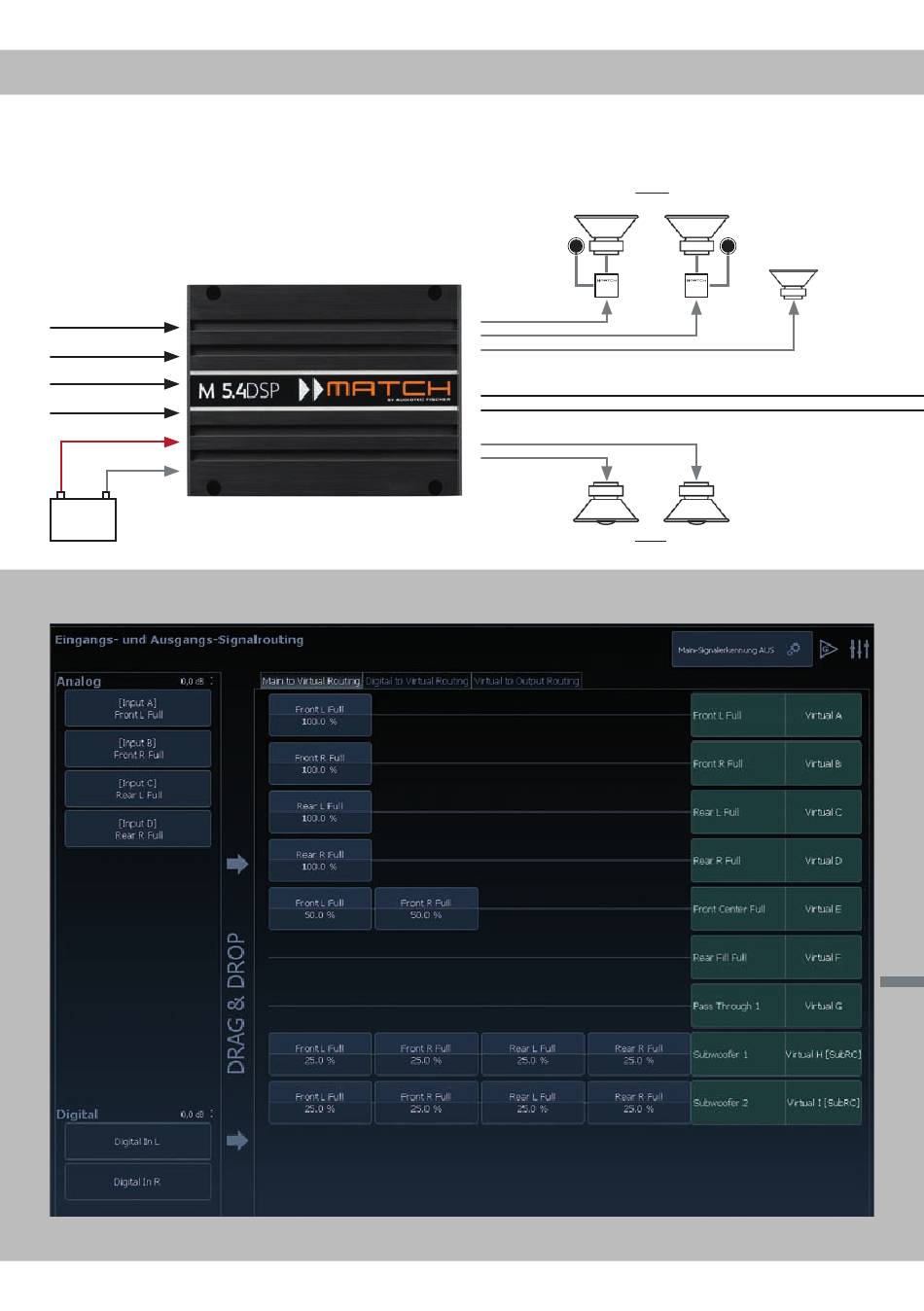

Example 3: HighPower mode 7-channel application with additional 2-channel amplifier and virtual
Application example with MATCH M 2.1AMP for BMW and Mercedes sound systems: Fullrange front system,
4-channel connec-
tion from car radio
Front L Full
Front R Full
Rear L Full
Rear R Full
+ 12 V
GND
12 V battery power supply
+ -
(see page 40)
Channel routing with Virtual Channel Processing in the DSP PC-Tool for configuration example 3
* With activated VCP, subwoofer channel E can also be used with other speakers.
44
Front
Passive system
A
B
E*
Speaker Output
F
G
Speaker Output
C
D
Rear
Coaxial or passive system
Center
2 ch Line Output 2 ch Line Output
