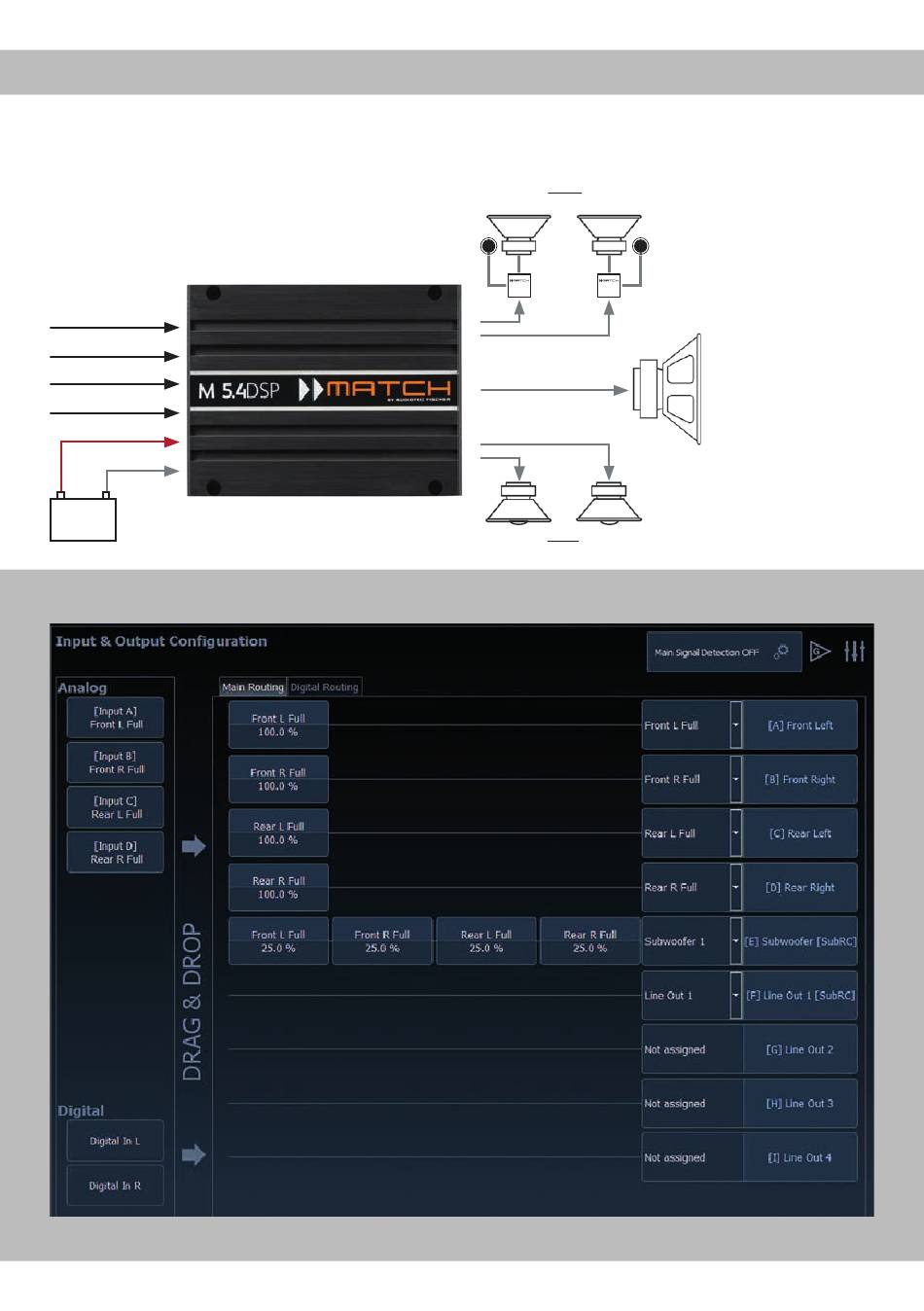

Example 2: HighPower mode 5-channel application with fullrange front system, fullrange rear
system and plug & play subwoofer without Virtual Channel Processing (VCP)
Front L Full
Front R Full
Rear L Full
Rear R Full
+ 12 V
GND
12 V battery power supply
+ -
(see page 40)
Channel routing without Virtual Channel Processing in the DSP PC-Tool for configuration example 2
For further applications please contact your MATCH specialist dealer.
Front
Passive system
A
B
E
C
D
Rear
Coaxial or passive system
MATCH Plug & Play
subwoofer like e.g.
PP 7S-D
(Connection with
enclosed adapter cable,
see page 37)
