Installation with a MATCH Plug & Play cable harness

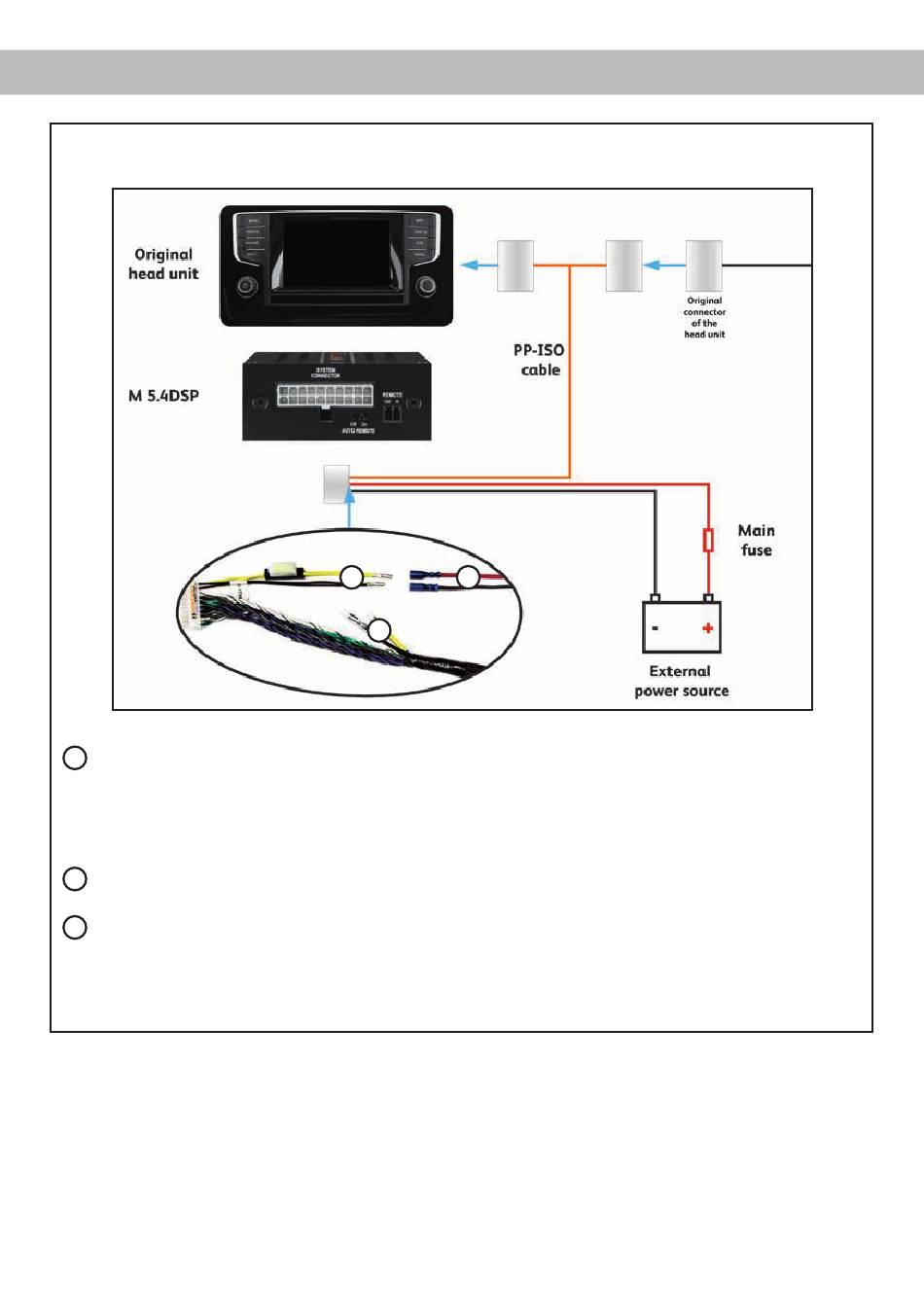

Fig. 5: Direct power supply – requirement for operating in "HighPower" mode
This side of the cable harness will be directly connected to the car´s battery. Therefore you have to
3
separate intended cable joints of the harness.
Yellow wire: +12 Volts wire for connecting the M 5.4DSP to the positive terminal of the car´s battery.
Black wire: ground wire for connecting the M 5.4DSP to the negative terminal of the battery or
directly to the car´s chassis.
After separating the cable joints the unused open wire ends (4) have to be properly insulated with
4
tape or other appropriate material.
Power supply to the car´s battery. The +12 Volts wire and the ground wire have to be connected
I
or soldered up to the respective joints of the PP-ISO cable harness. Afterwards it is important to
insulate the two wires separately.
