You can now reconnect the car battery. If one
of the cable extensions PP-EC 11, PP-EC 25
or PP-EC 40 will be used, the separate power
supply has to be connected to the extension
cable.
Note – Cars equipped with MOST bus:
In cars equipped with MOST bus structure it is
mandatory to unplug the fiber-optic cable from

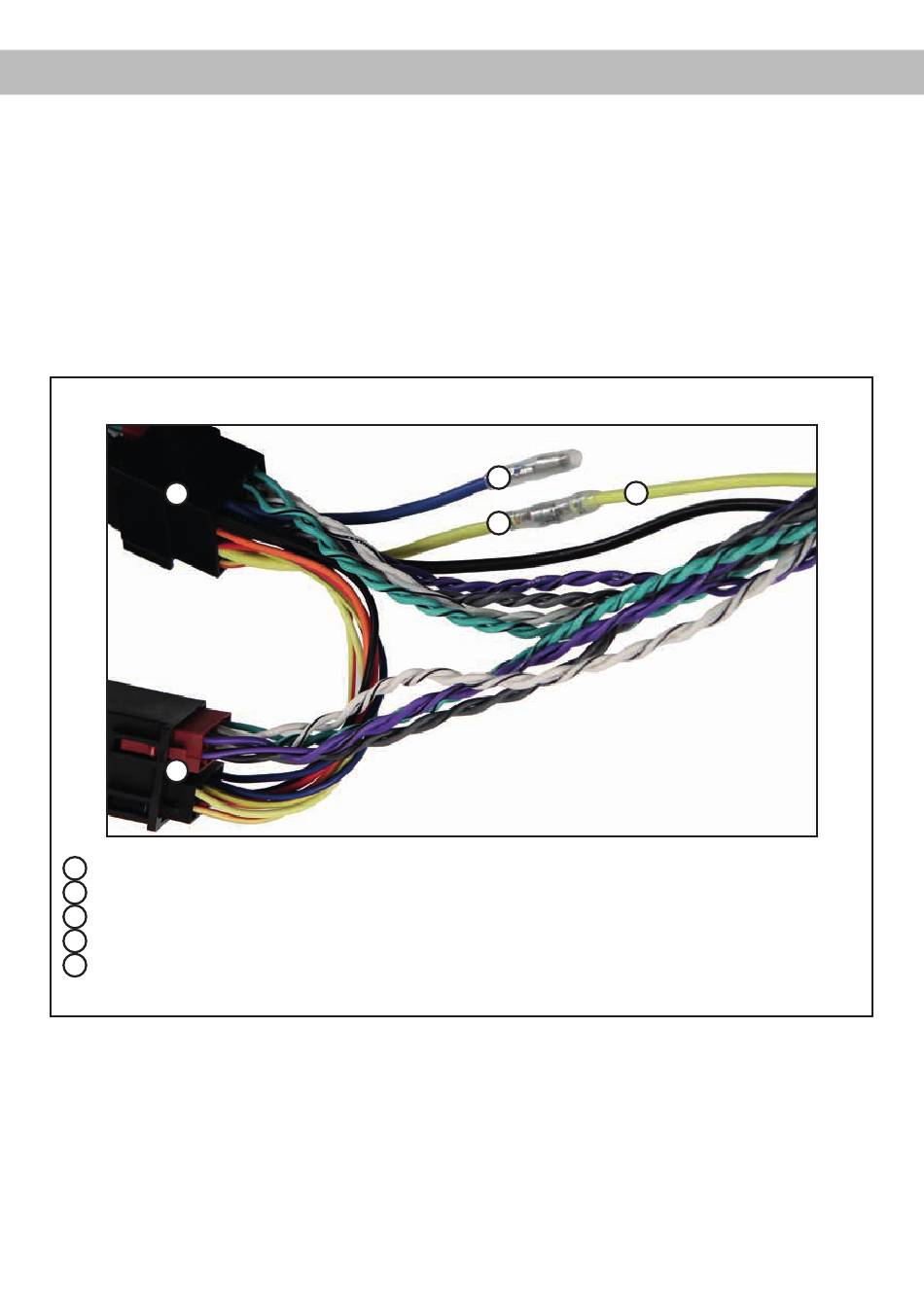

Fig. 4: Switching of permanent plus and switched plus terminal
1
2
ISO female connector of the PP-ISO cable harness.
1
ISO male connector of the PP-ISO cable harness.
2
Yellow wire - ex works connected to the power supply cable of the amplifier.
F
Blue wire - ex works left open.
G
+12 Volts power wire of the amplifier – make sure that this is connected to constant plus terminal of
H
your car.
the original car radio connector and insert it into
the car radio connector of the MATCH cable har-
ness which has a dedicated recess for this.
G
H
F
