Installation

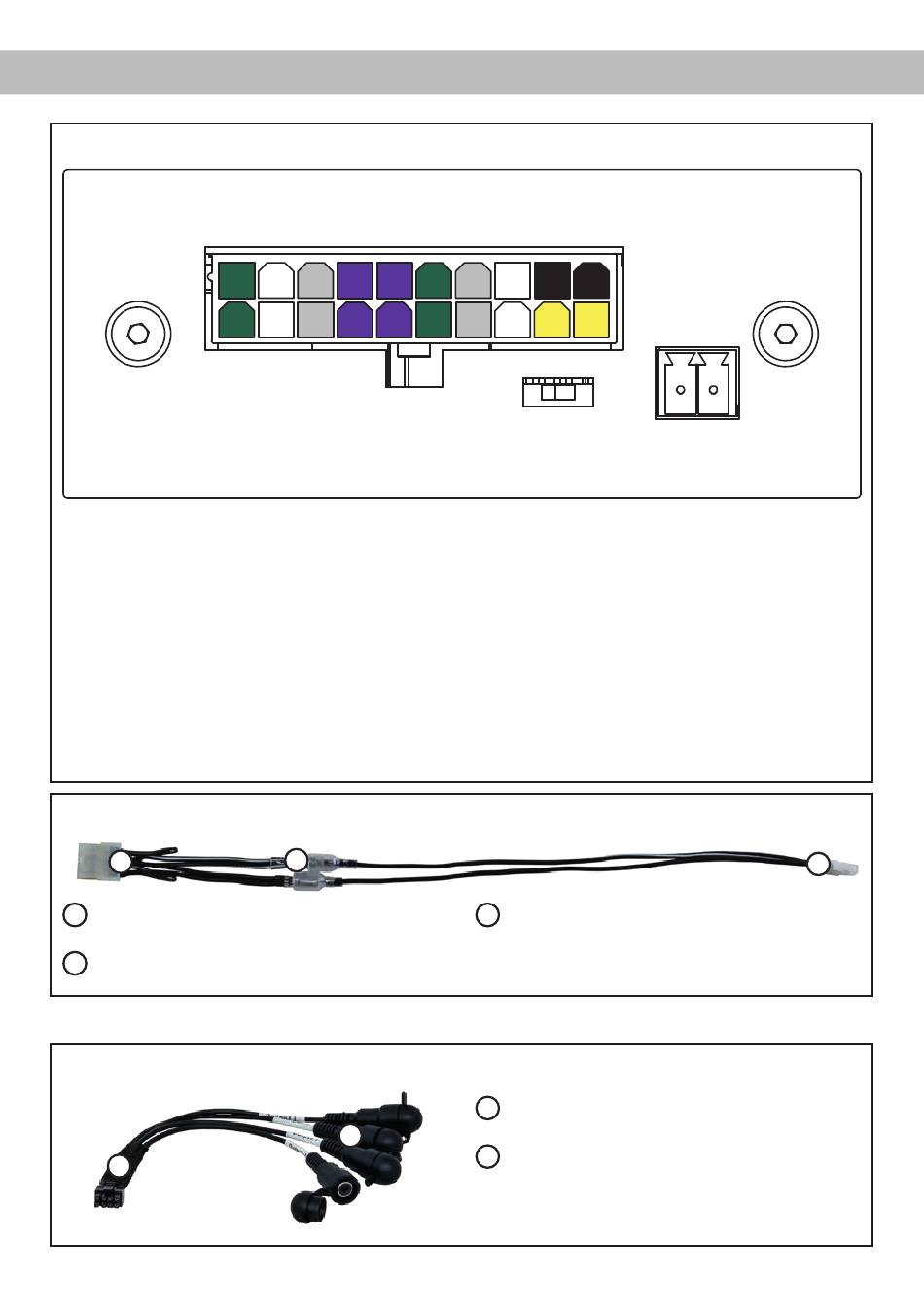

Fig. 1: Pin configuration of the system connector
1.
Highlevel loudspeaker input rear left (-) / C
2.
Highlevel loudspeaker input front left (-) / A
3.
Highlevel loudspeaker input front right (-) / B
4.
Highlevel loudspeaker input rear right (-) / D
5.
Loudspeaker output rear right (-) / D
6.
Loudspeaker output rear left (-) / C
7.
Loudspeaker output front right (-) / B
8.
Loudspeaker output front left (-) / A
9.
Ground
10.
Ground
Fig. 2: Subwoofer connection cable
1
8-pole Molex connector for connecting a
1
MATCH Plug & Play subwoofer
ASIA-connector
2
Fig. 3: Line Output-to-RCA / Cinch cable
4
34
SYSTEM
CONNECTOR
3 4 5
1 2
13 14 15
11 12
2
5
6 9 10
7 8
19 20
16 17 18
Off On
AUTO REMOTE
11.
Highlevel loudspeaker input rear left (+) / C
12.
Highlevel loudspeaker input front left (+) / A
13.
Highlevel loudspeaker input front right (+) / B
14.
Highlevel loudspeaker input rear right (+) / D
15.
Loudspeaker output rear right (+) / D
16.
Loudspeaker output rear left (+) / C
17.
Loudspeaker output front right (+) / B
18.
Loudspeaker output front left (+) / A
19.
+12 Volts
20.
+12 Volts
2-pole Molex connector for connection to the
3
Subwoofer Output of the M 5.4DSP
MicroFit connector for connection to the Line
4
Output F - I of the M 5.4DSP
RCA / Cinch connector for connecting addi-
5
tional amplifiers
REMOTE
Out In
