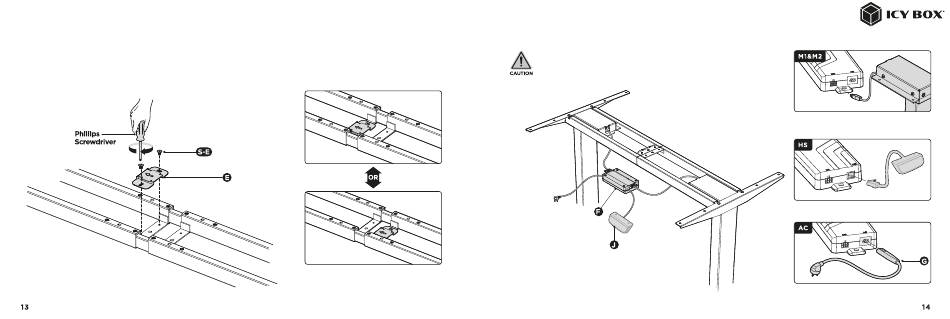

Assembling the fixing plate
• Align the mounting holes on the fixing plate with the screw holes as shown.
• Attach the fixing plate (E) in the center of the crossbar with 2 screws (S-1) using a Phillips screwdriver.
Note: The arrow on the fixing plate indicates the direction of sliding in the control box. Follow the direction of the
arrow to mount the control box in the next step.
The fixing plate can be attached to either the right side
or the left side.
Attaching the control box
• Turn over the desk frame with the crossbar facing up. At least two people are
required when turning over the desk frame. If only one person turns over the
desk frame, serious bodily injuries might occur.
• Connect the cords, control box and motors.
Note:
• Please make sure the slot on the control box (F) is facing upwards.
There is no corresponding relation between the motor connections
and the lifting columns.
• The illustration of the touch controller is only an example and may
differ from the actual product.
Connect the two motor cords to the two ports marked
"M1" and "M2" (one on each side of the control box).
Connect the controller (J) J cord to the port marked "HS".
Insert the power plug (G) in the port marked "AC".
