2. Introduction & Specification
5.
1.
2.
3.

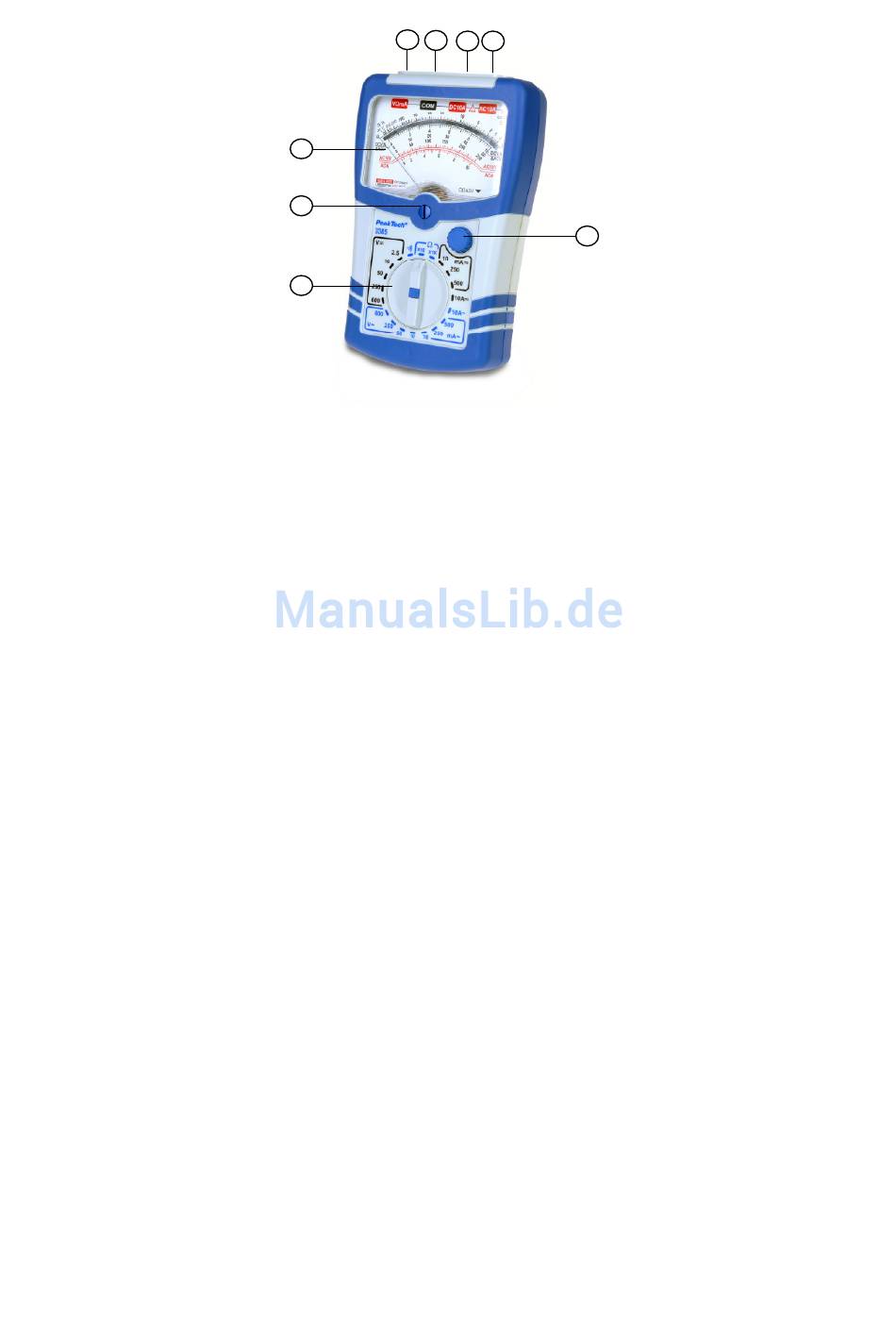

1. Pointer
2. Meter Mechanical Zero ADJ
If the meter pointer does not indicate zero after the
instrument's power has been off, rotate zero adjustment
screw until pointer is exactly on zero on the left side of dial.
3. Range Selector Knob
The single knob range switch has 20 positions. It may be
turned in either direction to obtain any desired range and
circuit position.
4. 0 Ω ADJ
Every time, adjust the "0" Ω SDJ to see that the pointer
indicates zero when the meter is in each Ω range.
5. "V/Ω/mA input terminal
6. "COM" input terminal
7. "DC10A" input terminal
8. "AC10A" input terminal
6.
7. 8.
4.
