SIMPLE HI
assembly instruction 02/2021
Tools:
Allen screw SW4 und SW5 (enclosed), crosstip screwdriver
8x XS bolts
8x connector housing
8x grub screws
1x countersunk bolt (M8x50)
24x confirmat screws

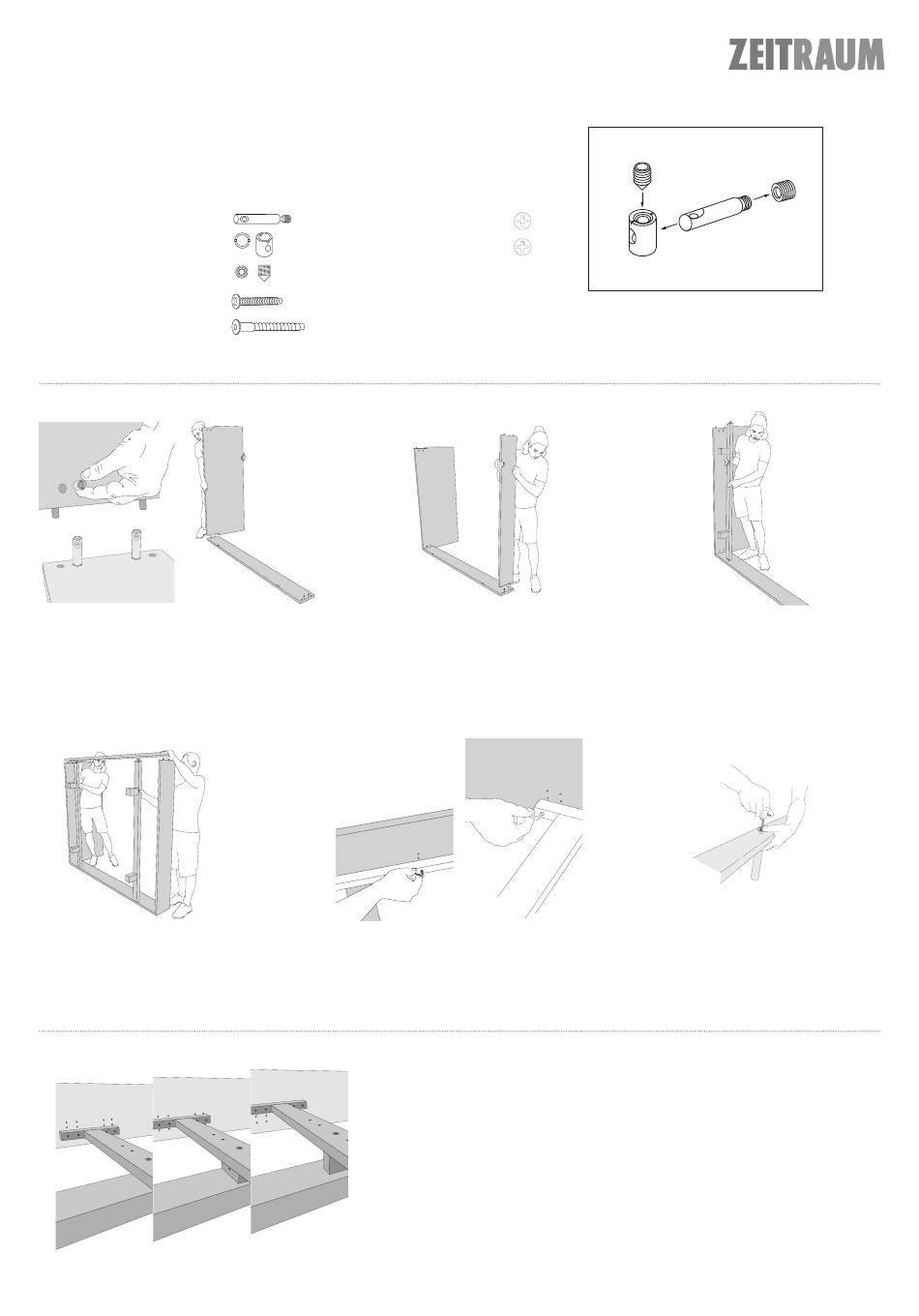

1. Screw the bolts into the long sides and insert
the connector housing into the head and foot
sections. Align the bolts and housing correctly!
4. Connect and fix the second sidepiece.
ZEITRAUM GmbH
Äußere Münchner Straße 2
•
2x countersunk bolts (5x60)
2x countersunk bolts (5x80)
1x middle base
2x distance block
Please do the setup of the bed on a soft surface(e.g. a carpet or blanket) to avoid damages.
2. Attach the head and foot sections and fix
them with grub screws.
5. Fix the side support files and the middle
plank with the confirmat screws.
without spacer block: insertion depth 14,5 cm
horizontal spacer block: insertion depth 12,5 cm
standing spacer block: insertion depth 10,5 cm
D-82515 Wolfratshausen
Tel + 49 (0) 8171 – 418130
•
•
Funktionsvideo:
https://www.youtube.com/watch?v=ioIUTDqtvgE
3. Slot the two bed feet on the cross-
bars and mount them on the bed side.
6. Screw in the middle base into the
center bar with the countersunk screw.
Mind to use the right length.
