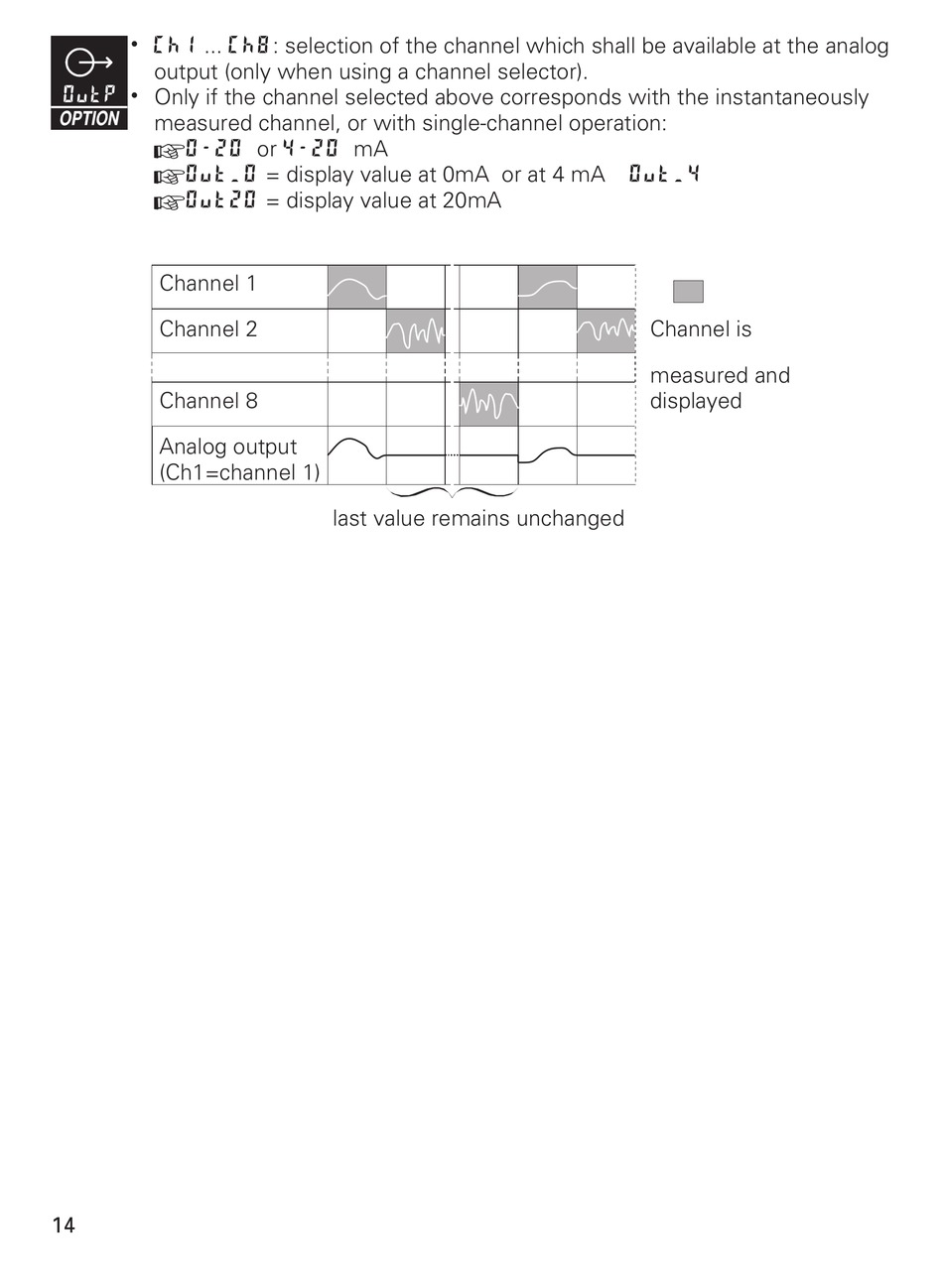

w Ch1 ... Ch8: selection of the channel which shall be available at the analog
output (only when using a channel selector).
w Only if the channel selected above corresponds with the instantaneously
measured channel, or with single-channel operation:
0-20 or 4-20 mA
+
Out_0 = display value at 0mA or at 4 mA
+
Out20 = display value at 20mA
+
Channel 1
Channel 2
Channel 8
Analog output
(Ch1=channel 1)
14
last value remains unchanged
Out_4
Channel is
measured and
displayed
