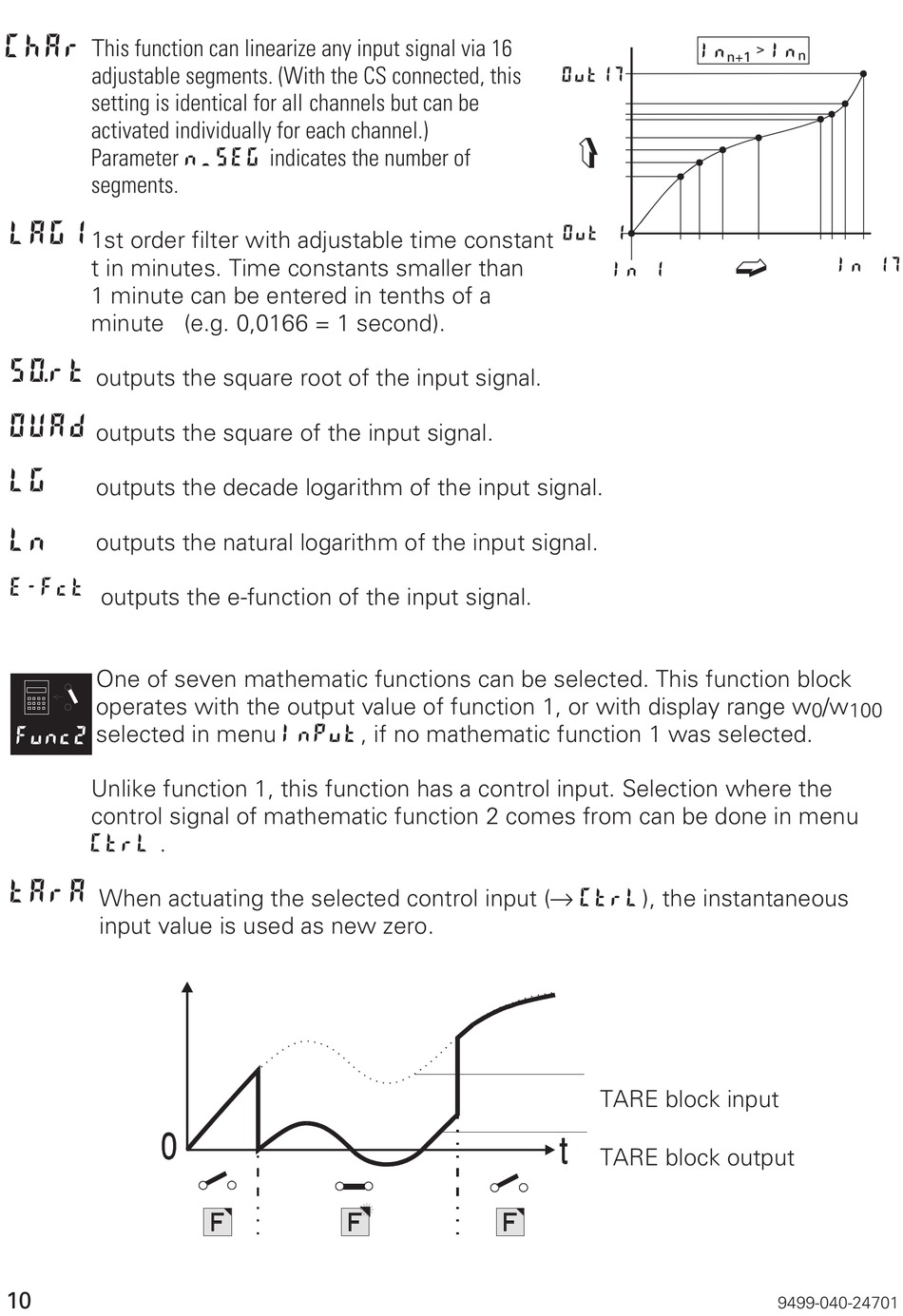

ChAr
This function can linearize any input signal via 16
adjustable segments. (With the CS connected, this
setting is identical for all channels but can be
activated individually for each channel.)
Parameter n_SEG indicates the number of
segments.
LAG1
1st order filter with adjustable time constant
t in minutes. Time constants smaller than
1 minute can be entered in tenths of a
minute (e.g. 0,0166 = 1 second).
SQrt
outputs the square root of the input signal.
OUAd
outputs the square of the input signal.
LG
outputs the decade logarithm of the input signal.
Ln
outputs the natural logarithm of the input signal.
E-Fct
outputs the e-function of the input signal.
One of seven mathematic functions can be selected. This function block
operates with the output value of function 1, or with display range w
selected in menu Input, if no mathematic function 1 was selected.
Unlike function 1, this function has a control input. Selection where the
control signal of mathematic function 2 comes from can be done in menu
Ctrl .
tArA
When actuating the selected control input (Ä Ctrl), the instantaneous
input value is used as new zero.
10
TARE block input
TARE block output
/w
0 100
