Sachs PSM69-48-002-01-22 Einbau- Und Montageanleitung Seite 37

Performance-Gewindefahrwerke
Performance Coilover Kits
Kit-Nr.: PSM69-48-002-01-22

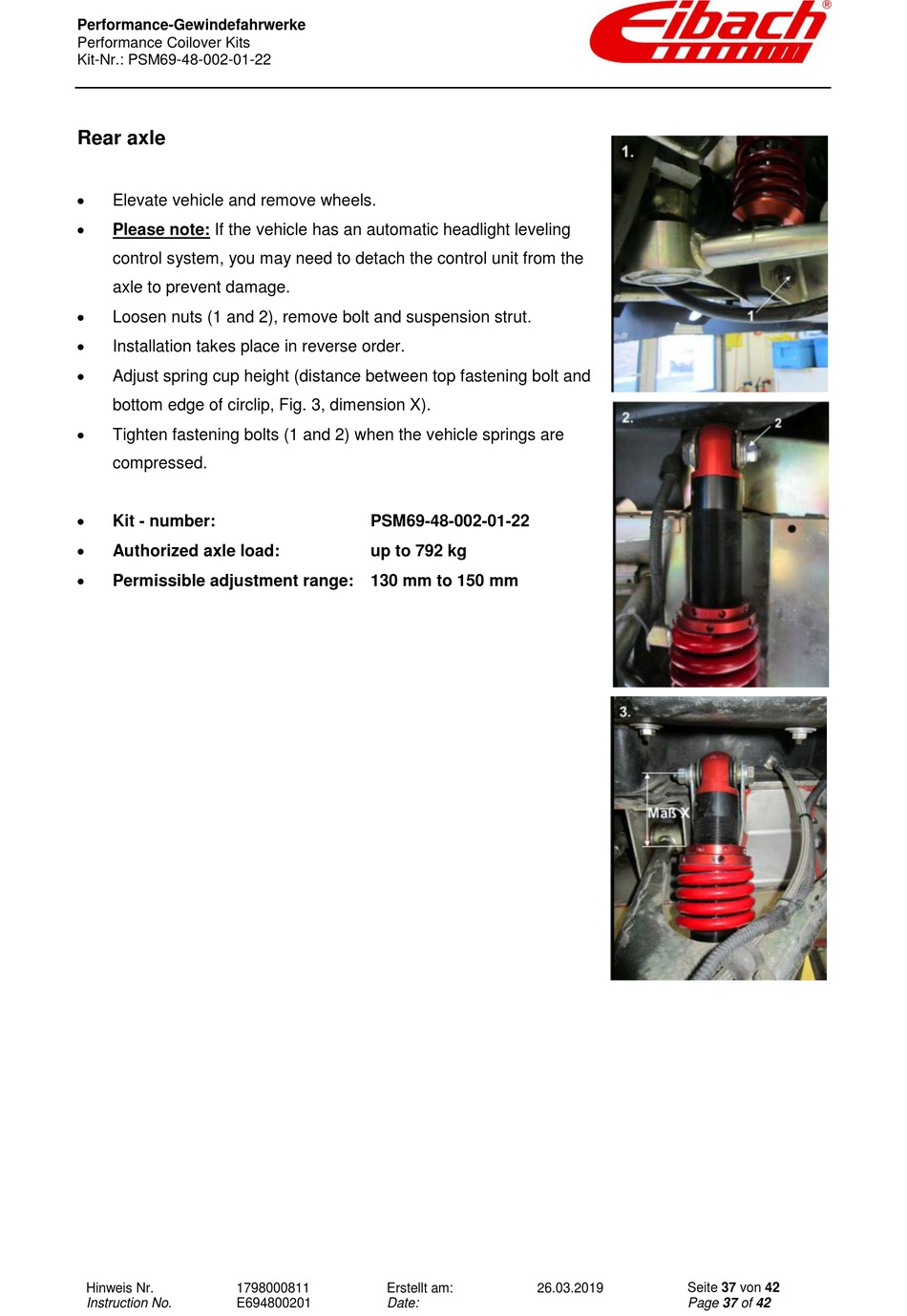

Rear axle

Elevate vehicle and remove wheels.

Please note: If the vehicle has an automatic headlight leveling
control system, you may need to detach the control unit from the
axle to prevent damage.

Loosen nuts (1 and 2), remove bolt and suspension strut.

Installation takes place in reverse order.

Adjust spring cup height (distance between top fastening bolt and
bottom edge of circlip, Fig. 3, dimension X).

Tighten fastening bolts (1 and 2) when the vehicle springs are
compressed.

Kit - number:

Authorized axle load:

Permissible adjustment range: 130 mm to 150 mm
Hinweis Nr. 1798000811
Instruction No. E694800201
PSM69-48-002-01-22
up to 792 kg
Erstellt am: 26.03.2019
Date:
Seite 37 von 42
Page 37 of 42
