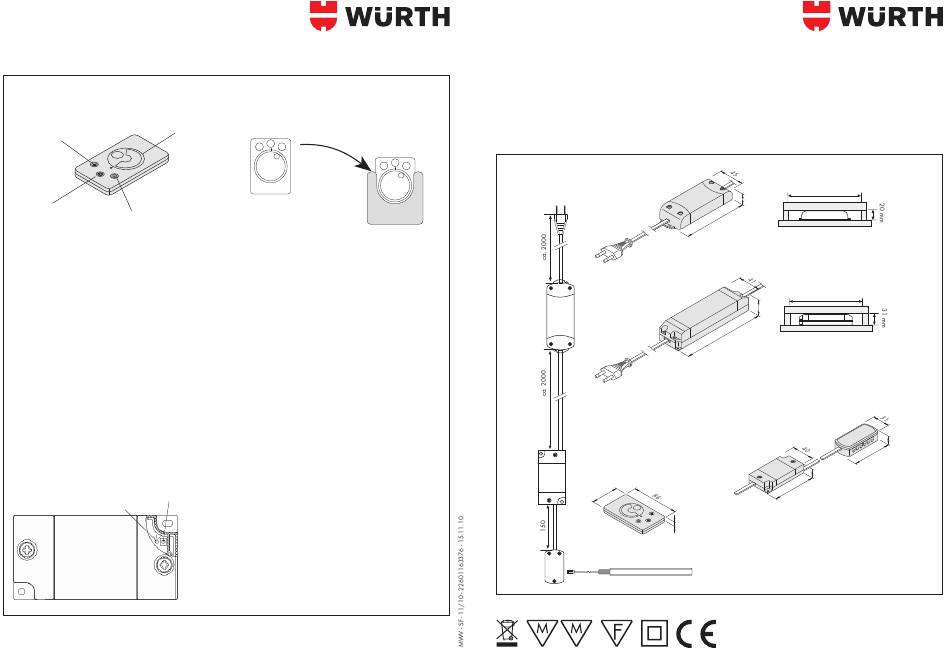

Würth LD2 Montageanleitung

Function of the Radio Telecontrol
dim range
minimum dim level
0–100%
(approx. 10%)
On/Off
maximale dim level
(100%)
The radio telecontrol has a remote distance of max. 15 m. The radio controller has
a memory function of the performance before a disconnection from the mains.
After reestablish the mains connection the luminaires operate in the performance
before the power failure.
New Installation when the remote controller needs to be replaced
1. Screw off the cover on the outlet of the radio controller.
2. Connect the LED transformer to the mains.
3. Push the "Sturdy Button" in the radio controller with a sharpen object such as screwdriver or refill for a ballpoint pen.
The indicator lamp turns on blue.
4. Take out the battery.
5. Waiting for about 10s, put the battery (1 x Lithium Battery CR2032 3,0 V) in the radio telecontrol. The indicator
lamp flashes and turns off.
6. After finish above steps, the indicator lamp is still on. It means learning is failed. Please repeat the process again.
7. The LED luminaires can now be controlled with the radio telecontrol.
Follow these instructions to adjust further radio controllers to the same radio telecontrol.
Sturdy Button
indicator lamp
Specifi ed dimensions not binding. Subject to technical changes.
Adolf Würth GmbH & Co. KG · 74650 Künzelsau, Germany · T +49 7940 15-0 · F +49 7940 15-1000 · www.wuerth.com
Attention: After 1 Minute the board is locked.
To unlock, press one of the 3 buttons.
To preserve the radio telecontrol use the enclosed
holder. The holder can be glued with adhesive sheet
or fastened with screws.
MONTAGEANLEITUNG LED-TRANSFORMATOR
Typ: LD2 mit Funkdimmer
Dimmbarer elektronischer Sicherheitstransformator 24V DC
für LED mit LD2-Stecksystem mittels Funkfernbedienung
Komponenten
LED 15 W 24 VDC (Leistung 1–15 W)
LED 30 W 24 VDC (Leistung 1–30 W)
Bei der Auslösung des integrierten Überlastschutzes infolge einer Überlastung
des Transformators schaltet sich der Transformator nach kurzer Zeit automatisch
wieder ein (Auto – Reset).
LED Funk-Controller 24 VDC (Leistung 1–30 W)
Übertragungsfrequenz 2,4 GHz
5 0
Handsender
Werden andere als die angegebenen LED Leuchten eingesetzt werden keine Gewährleistungen übernommen.
min. 300 x 300 mm
2 0
Trafo
1 1 1
Sekundär-Leitung max. 5 m
min. 300 x 200 mm
3 1
Trafo
1 5 1
Sekundär-Leitung max. 5 m
1 6
7 8
12fach Verteiler
8
z.B. LED Stick
Prim. Sec.
220–240 V∼ 24 V DC konstant
50–60 Hz
5
1 6 ,
7 0
