C-Qual™

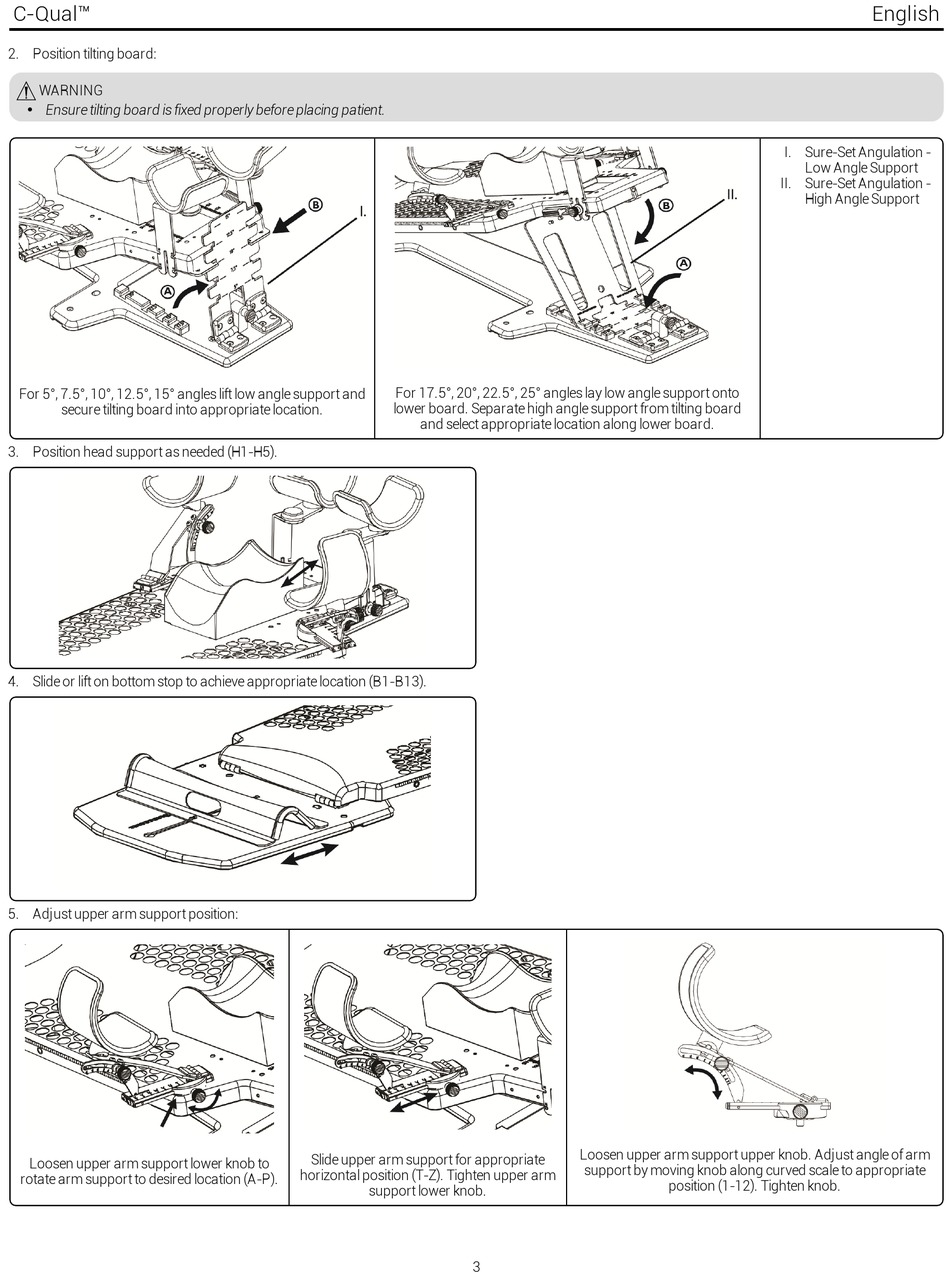

2. Position tilting board:
WARNING
Ensure tilting board is fixed properly before placing patient.
l
For 5°, 7.5°, 10°, 12.5°, 15° angles lift low angle support and
secure tilting board into appropriate location.
3. Position head support as needed (H1-H5).
4. Slide or lift on bottom stop to achieve appropriate location (B1-B13).
5. Adjust upper arm support position:
Loosen upper arm support lower knob to
rotate arm support to desired location (A-P).
For 17.5°, 20°, 22.5°, 25° angles lay low angle support onto
lower board. Separate high angle support from tilting board
and select appropriate location along lower board.
Slide upper arm support for appropriate
horizontal position (T-Z). Tighten upper arm
support lower knob.
3
Loosen upper arm support upper knob. Adjust angle of arm
support by moving knob along curved scale to appropriate
position (1-12). Tighten knob.
English
I. Sure-Set Angulation -
Low Angle Support
II. Sure-Set Angulation -
High Angle Support
