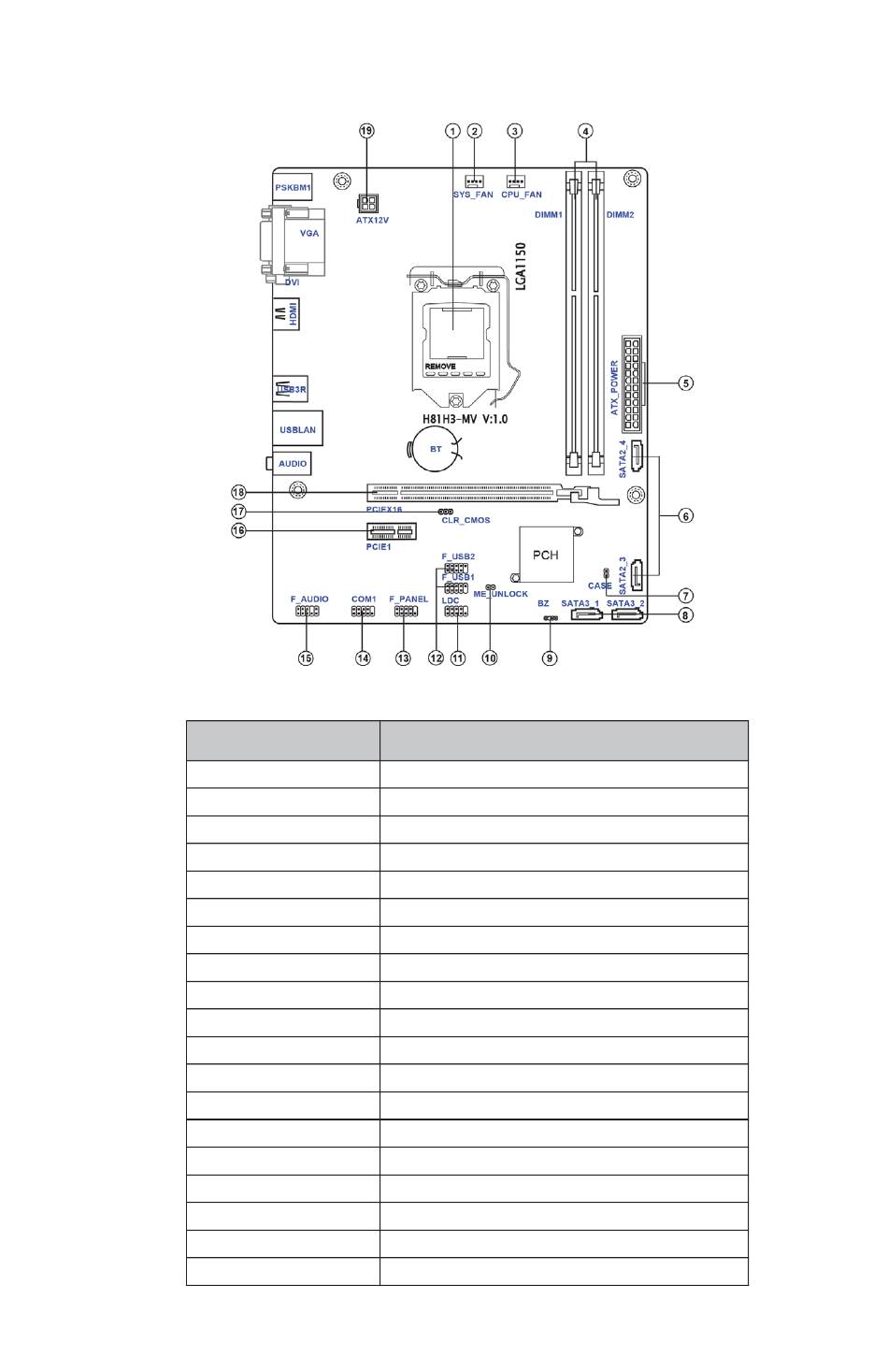

Motherboard Components

Table of Motherboard Components
LABEL
1. CPU Socket
2. SYS_FAN
3. CPU_FAN
4. DIMM_1~2
5. ATX_POWER
6. SATA3~4
7. CASE
8. SATA1~2
9. BZ
10. ME_UNLOCK
11. LDC
12. F_USB1~2
13. F_PANEL
14. COM1
15. F_AUDIO
16. PCIE1
17. CLR_CMOS
18. PCIEX16
19. ATX12V
COMPONENTS
LGA1150 Haswell socket
4-pin System cooling fan connector
4-pin CPU cooling fan connector
240-pin DDR3 Module slots
Standard 24-pin ATX power connector
Serial ATA 3.0 Gb/s connectors
CASE open header
Serial ATA 6.0 Gb/s connectors
Buzzer header
ME unlock header-for factory use only
Debug Card Header
Front Panel USB 2.0 header
Front panel switch/LED header
Onboard serial port header
Front panel audio header
PCI Express x1 slot
Clear CMOS jumper
PCI Express slot for graphics interface
4-pin +12V power connector
H81H3-MV USER MANUAL
3
