QUICK INSTALLATION GUIDE
2-PORT/ 4-PORT DUAL MONITORS DP1.2 USB KVM
SWITCH W/ AUDIO & MIC
63652I/63654I
Thank you for purchasing the InLine® 2/4 Port Dual Monitors
DP1.2 USB KVM Switch! With our highly reliable and quality pro-
duct, user can enjoy countless benefits from using it.
INTRODUCTION
The Dual Monitors DP1.2 KVM Switch is designed specifically for
sharing two monitors/ flat panel displays between two/ four multi-
media computers with dual head DP display. With KVM-Switch,
you can fully control two/ four dual head PCs using only one key-
board, mouse and dual monitor/ flat panel displays. This dual
monitor DP KVM switch supports 3840 x 2160/4K 60Hz for your
maximum convenience in adapting to your display requirements.
With the TTU Emulation Technology, which embodies itself within
a new ASIC chip, the dual monitors DP USB KVM switch is capable
of a complete versatility in dealing with the functional requirements
of all types of advanced keyboards and mice. It features two chan-
nels stereo sound for theater audio experience and its audio&mic
switching function offers you uninterrupted multimedia experience
while performing KVM switching. Multi-platform support for PC
and Mac is available.
Package content:
1x KVM switch unit 2-port / 4-port
2x KVM cable set for 63652I / 4x cable set for 63654I
1x Quick Installation Guide
1x Power Adapter DC9V
INSTALLATION
1. Connect the shared USB keyboard, mouse, two monitors,
speaker/headphone and microphone to corresponding ports
on console section of the KVM Switch. Note that the two left
side white USB ports are for keyboard and mouse and two
blue USB 3.0 ports for other USB devices.

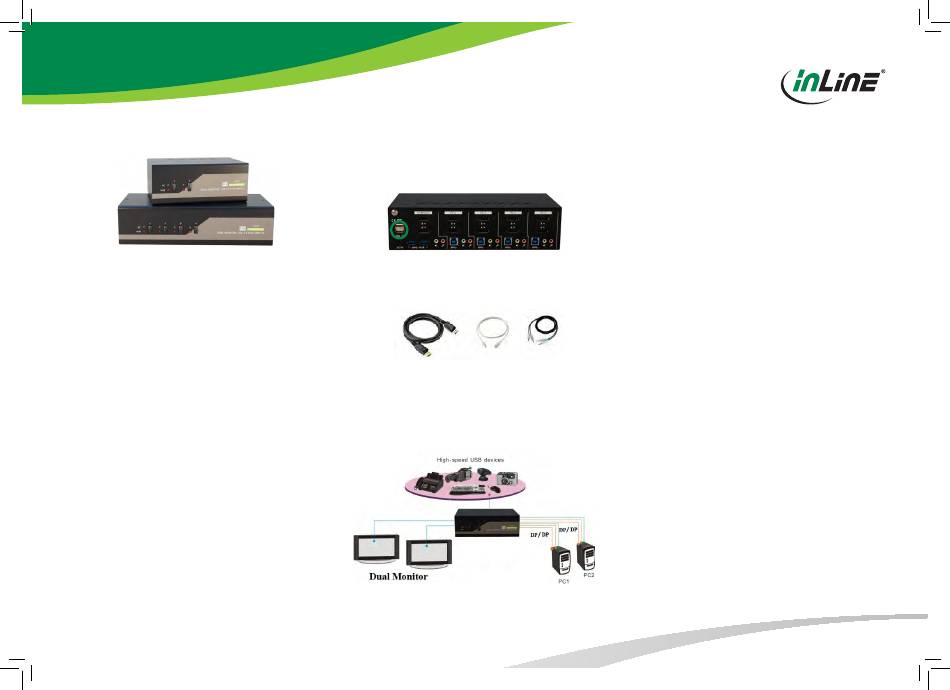

63654I – Rear View
2. Connect each KVM PC port to a computer, using two DP1.2
video cable (male to male), one USB cable (type A to type B)
and one audio&mic combo cable (male to male).
Connect each of your USB devices to the USB hub ports (on
3.
the left).
4. Power up you KVM Switch by connecting the external power
adapter to it.
You can now begin to use the KVM switch.
Connection Illustration
EASY OPERATION
A keyboard hotkey sequence consists of at least three specific ke-
ystrokes: See Quick Reference Sheet
Hotkey sequence = [ScrLk]* + [ScrLk]* + Command key(s)
* User-definable = SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK
Hotkey preceding sequence configuration: For users who want to
use a preceding sequence other than two consecutive Scroll Locks,
there is also one convenient way to configure it.
(1) Hit ScrollLock + ScrollLock + H, then two beeps will signal rea-
diness for new preceding sequence selection [or Press and hold
down the last front-panel button (Button 2 or Button 4) until you hear
two beeps, then release the button.]
(2) Select and press the key you would like to use as your preceding
sequence (SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK) keys
are available for selection and you'll hear a beep for selection con-
firmation. Now you can use the new preceding sequence to execute
your hotkey commands.
Note: Each keystroke within a hotkey sequence should be pres-
sed within two seconds. Otherwise, the hotkey sequence will not
be validated.
DISCLAIMER
1. Edition English 08/2019
Documentation © 2019 INTOS ELECTRONIC AG
All rights reserved. No part of this manual may be reproduced in
any form or duplicated or processed using electronic, mechanical
or chemical processes without the publisher´s written consent. It
is possible that this manual may still contain typographical defects
or printing errors. However, the information in this manual is revie-
wed regularly and corrections will be made in the next edition. We
accept no liability for technical or typographical errors and their
consequences. All trademarks and industrial property rights are
acknowledged. Changes in the sense of technical progress can
be made without prior notice. Our products, including packaging,
are not toys; they may contain small parts and sharp objects. Keep
away from children, please.
