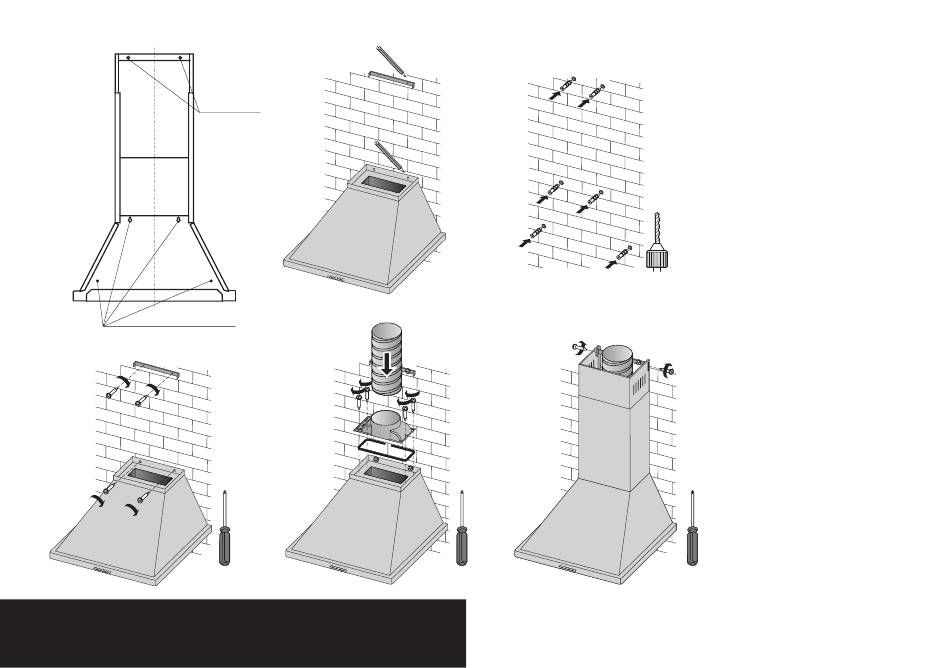

INSTALLATION OF EXTRACTOR FAN TO THE WALL
Mounting points
32
Mounting
points
EN
1. Mount the back surface
of the cooking hood to
the wall by the means of
the screws with dowels
from the installation kit.
2. Install the adapter of air
duct onto the cooking
hood by the means of
screws with use of seal
from installation kit.
3. Connect the air duct
to the adapter of the
cooking hood. Take out
another end of an air duct
to the air-shaft. Ensure
that chinks are absent in
the connections.
4. Install casings of an air
duct and fix them with
screws from installation
kit.
