Einhebelmischbatterie für Waschtisch und Bidet
1. Spülen der Rohrleitungen!
2. Stiftschraube in das Gehäuse einschrauben.
3. Zugstange in das Waschtischgehäuse einschieben.
4. Einhebelmischbatterie mit untergelegter Formgummidichtung auf
das Becken aufsetzen.
5. Befestigungsscheibe über die Stiftschraube schieben und Armatur
mit der Mutter (SW 12) befestigen.
6. Flexschläuche mit den Eckventilen verbinden.
Dabei ist der rechte Anschluß für Kaltwasser und der linke
Anschluß für Warmwasser vorzusehen.(...8135 hinterer Anschluss
Kaltwasser, vorderer Anschluss Warmwasser)
7. Dichtheit der Anschlüsse und Funktion der Armatur sind zu
prüfen.
Einhebelmischbatterie für Wanne-Brause und Dusche
1. Spülen der Rohrleitungen!
2. S-Anschluß einschrauben und ausrichten.
3. Dichtring in Überwurfmutter einlegen, Armatur befestigen
und Rosette an die Wand schieben.
4. Dichtheit der Anschlüsse und Funktion der Armatur sind
zu prüfen.
Kartuscheneinstellung
Die enthaltene Begrenzung der Wassermenge und der Temperatur ist
im Anlieferungszustand außer Funktion. Bei gewünschter Nutzung
dieser Funktionen, sind zur Einstellung der Hebel und die
Schraubkappe abzunehmen und die Begrenzung wie in Abb.1
gezeigt voerzunehmen.
Reinigung/Wechsel Luftsprudler bei ... 8135 010
Mit dem mitgelieferten Imbusschlüssel SW1,5 die Schraube am
Auslauf lösen und mit der mitgelieferten Zugplatte den Luftsprudler
herausziehen. Luftsprudler reinigen oder neuen vorsichtig wieder ein-
setzten und die Schraube einschrauben, bis diese bündig mit dem
Auslauf abschliesst.
Zur Beachtung !:
Einhebelmischer mit Schwenkauslauf 304 8135 und 304 8107 010
sind Sonderarmaturen hinsichtlich des auswechselbaren Rechteck-
luftsprudlers
Bestellnummer: 399 8386 000
Durchfluss 4 l/min
Flexschlaucheinbau / flex hose fixing
richtig/right
falsch/wrong
richtig/right
Installationshinweise - Installation instructions
...8051/8052 010
... 8078 010/ ... 8105 010
...8108 010
falsch/wrong
... 8243 010
... 8135 010
... 8114 010/ ... 8194 010
... 8113 010/ ... 8144 010
G 1/2
72
156
Installation of single lever mixer for basin
1. Flush the incoming lines!
2. Screw studbolts into faucet body.
3. Push pop-up-rod into faucet body.
4. Drop single lever mixer with the inserted o-ring onto the sink.
5. Push fastening disc over the studbolts and tighten the fitting with
the nut (SW 12).
6. Connect the flex hoses to the isolating valves.
Right is for cold water, left is for hot water.(...8135 back connectin
cold water, connection front hot water)
7. Please control tightness and functioning of faucet!
Installation of single lever mixer for bath and shower mixer
1. Flush the incoming lines!
2. Screw on S-connections and align these.
3. Insert sealing ring into screw cap, tighten the faucet and
push the rosette on the wall.
4. Please control tightness and functioning of faucet!
Cartridge setting
You are able to set the waterflow and temperature with the
cartridge. These options are set to a neutral position when the pro-
duct is shipped. If you wish to make use of these options, please first
remove handle and screw cap from the mixer.
See drawing no.1
Aerator exchang or cleaning by .. 8135 010
You must unscrew the screw on the spout, with the included allen
wrench SW1, 5. And now remove the aerator down with the supplied
key. Aerator clean or new aerator insert. Mounting the screw only until
they are flush with the spout.
Betriebsbedingungen / Operation conditions:
Kartuscheneinstellung - Cartridge setting

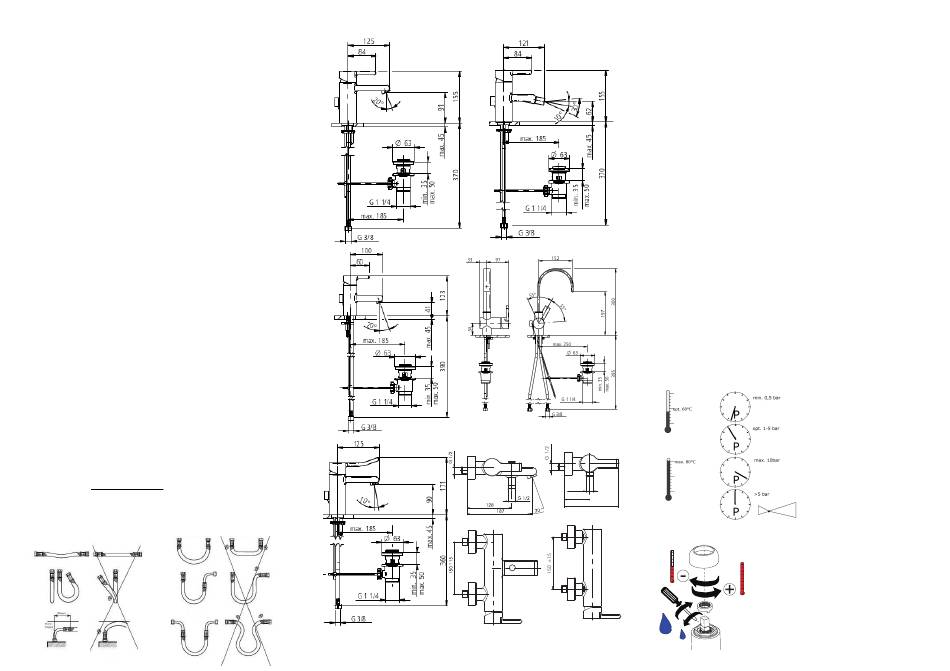

Abb. 1
drawing no. 1
