12.1

Dimensional drawings

8020354.14CS | SICK
Subject to change without notice
24,6 Ø 5,2
4
2
1
3
10
5
12,9
6,4
6
21

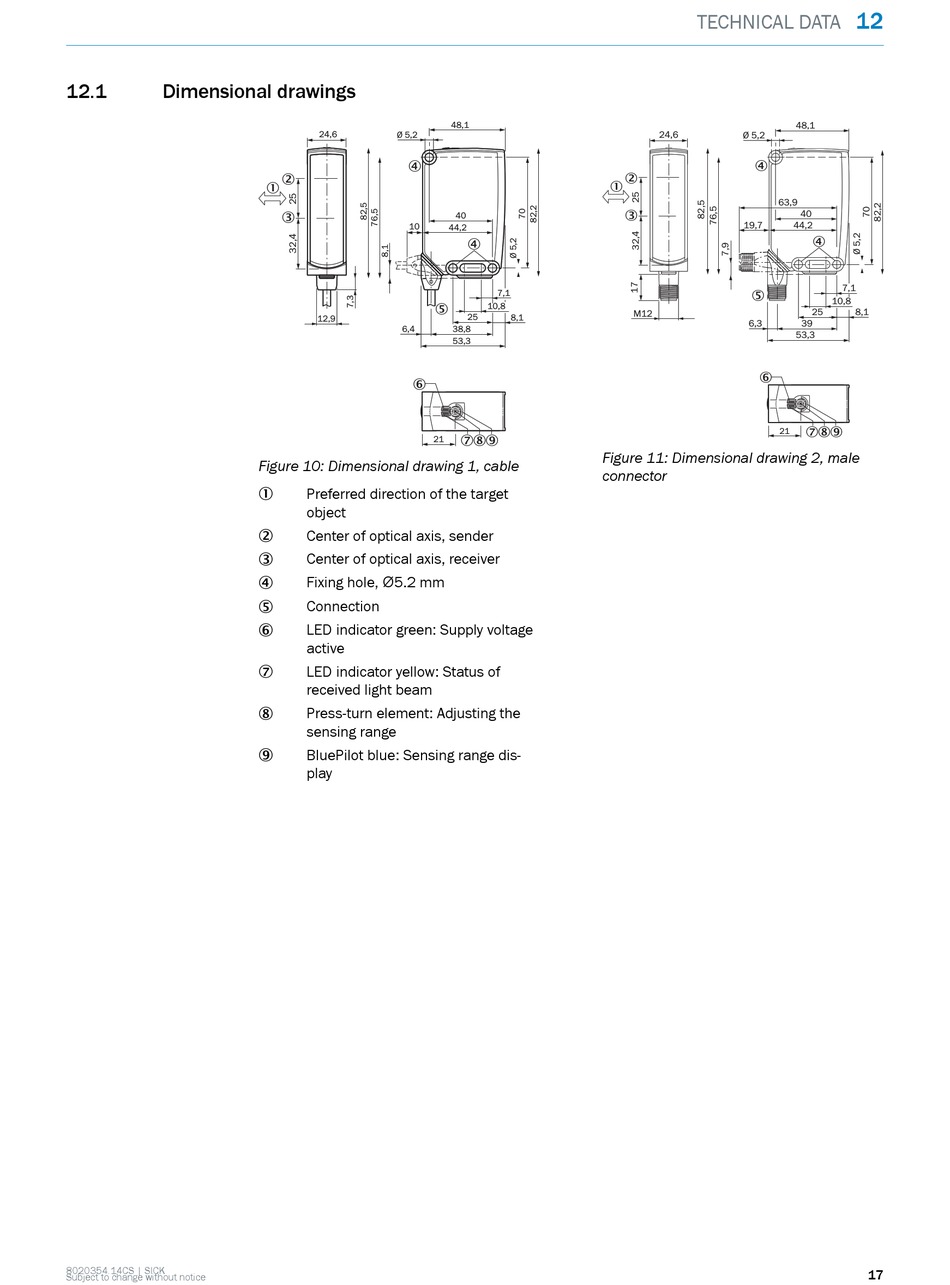

Figure 10: Dimensional drawing 1, cable
Preferred direction of the target
1
object
Center of optical axis, sender
2
Center of optical axis, receiver
3
Fixing hole, Ø5.2 mm
4
Connection
5
LED indicator green: Supply voltage
6
active
LED indicator yellow: Status of
7
received light beam
Press-turn element: Adjusting the
8
sensing range
BluePilot blue: Sensing range dis‐
9
play
48,1
2
1
3
40
44,2
4
7,1
10,8
25 8,1
38,8
53,3
7 89
Figure 11: Dimensional drawing 2, male
connector
TECHNICAL DATA
48,1
24,6
Ø 5,2
4
63,9
40
19,7 44,2
5
25
M12
6,3 39
53,3
6
7
21
12
4
7,1
10,8
8,1
89
17
