• Connect to a power source and run the saw under no-load to check that it runs
smoothly before using it to cut any materials.
CAUTION: The blade roller guide supports the blade when cutting and must at all
times rest against the back edge of the blade. It should rotate freely.
To remove the blade:
1. Turn the unit upside so you can access the jig saw blade
2. Using your thumb and forefinger, push down the tool-less blade change catch.
3. Remove the blade by pulling it out the base of the jig saw.

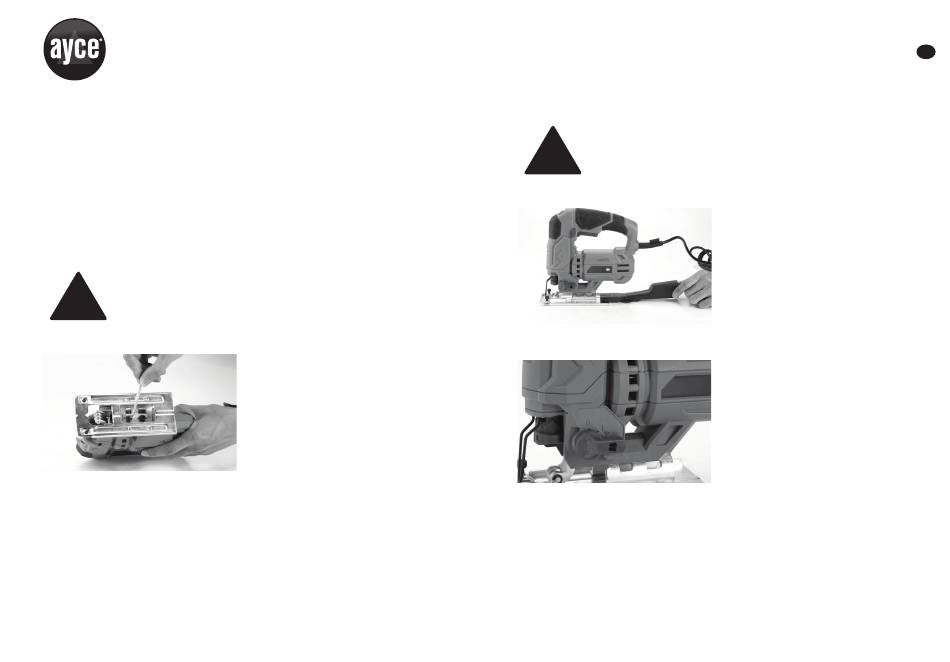

b. Angle adjustment (Fig.2)
The jig saw shoe can be angled to enable bevel or chamfer cuts. There are preset bevel
detents at 0° and 45° for quick adjustment.
Always ensure the tool is switched off and the plug is removed before
!
making any adjustments or maintenance procedures.
WARNING
Fig. 2
180730_ayce_NC600JS_IM
1. With the jigsaw upside down on a
solid surface use the hex key, stored
at the base of the power cord, to
loosen the hex screw securing the
blade guide assembly and the shoe
plate.
2. Move the shoe plate slightly back. It
can now be tilted to the required angle
(between 0° and 45°) using the angle
scale on the shoe plate.
3. Slide the shoe plate until the blade
guide rests against the back of the
blade.
4. Re-tighten the hex screw.
5. For accurate work it is necessary to
do a practice cut first. Check the cut
and reset the angle until the correct
cut is achieved.
6. The blade guide supports the blade
when cutting and must always rest
against the back of the blade.
c. Mounting the dust extraction tube (Fig.3)
!
Always connect the dust extraction when sawing.
WARNING
Fig. 3
d. Pendulum lever (Fig.4)
Fig. 4
88 89 |
• To install the dust extraction tube,
just insert the tube into the rear
part of the jig saw.
• A standard household vacuum
cleaner can be connected with the
tube.
• The pendulum lever has four
positions. The first position selects
normal cutting without pendulum
action. The positions (1, 2 and 3)
cause the blade to swing slightly
backwards and forwards as it cuts.
This pendulum action increases the
efficiency of cutting, set the
pendulum lever to one of the three
settings (1, 2 or 3) according to
degree of pendulum action
required.
• Experiment on a piece of scrap
material to determine the optimum
pendulum action setting for the
material of the work-piece.
Recommendations (non-committal):
1. No pendulum action for: cutting
sheet metal, plastic sheets; very
fine cutting edges.
2. Low pendulum action for: cutting
hard wood, plastics; fine cutting
edges on wood.
