connection is closed if no date are received at the active port
during the set reverse time.
LEDs „A" and „B" on the front panel indicate an active
communications path.
This mode supports neither hard- nor software hand-
1
shake.

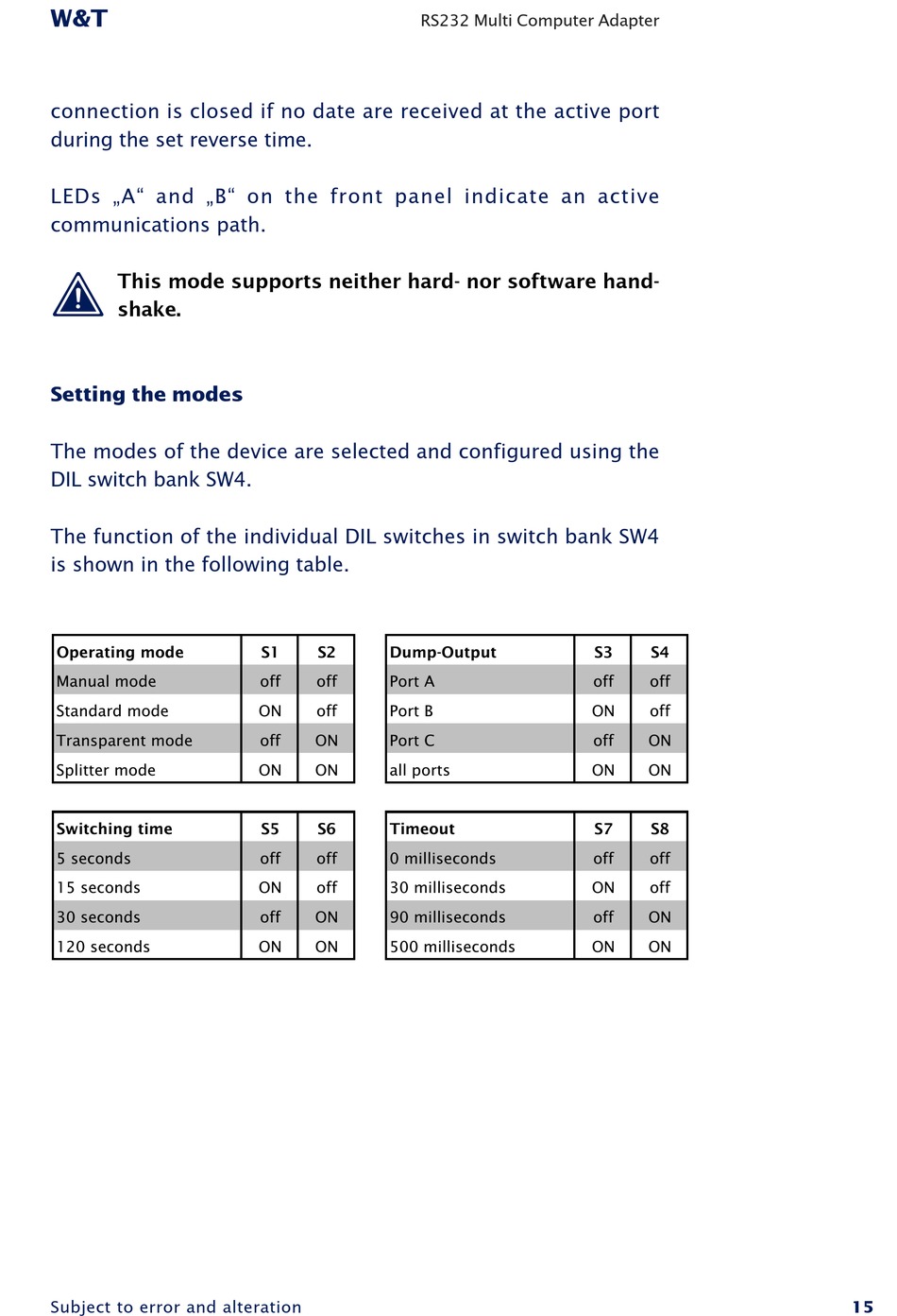

Setting the modes

The modes of the device are selected and configured using the
DIL switch bank SW4.
The function of the individual DIL switches in switch bank SW4
is shown in the following table.
Operating mode
Manual mode
Standard mode
Transparent mode
Splitter mode
Switching time
5 seconds
15 seconds
30 seconds
120 seconds
Subject to error and alteration
RS232 Multi Computer Adapter
S1 S2 Dump-Output
off off Port A
ON off Port B
off ON Port C
ON ON all ports
S5 S6 Timeout
off off 0 milliseconds
ON off 30 milliseconds
off ON 90 milliseconds
ON ON 500 milliseconds
S3 S4
off off
ON off
off ON
ON ON
S7 S8
off off
ON off
off ON
ON ON
15
