ETS 4000 Ex ia HART ATEX / IECEx

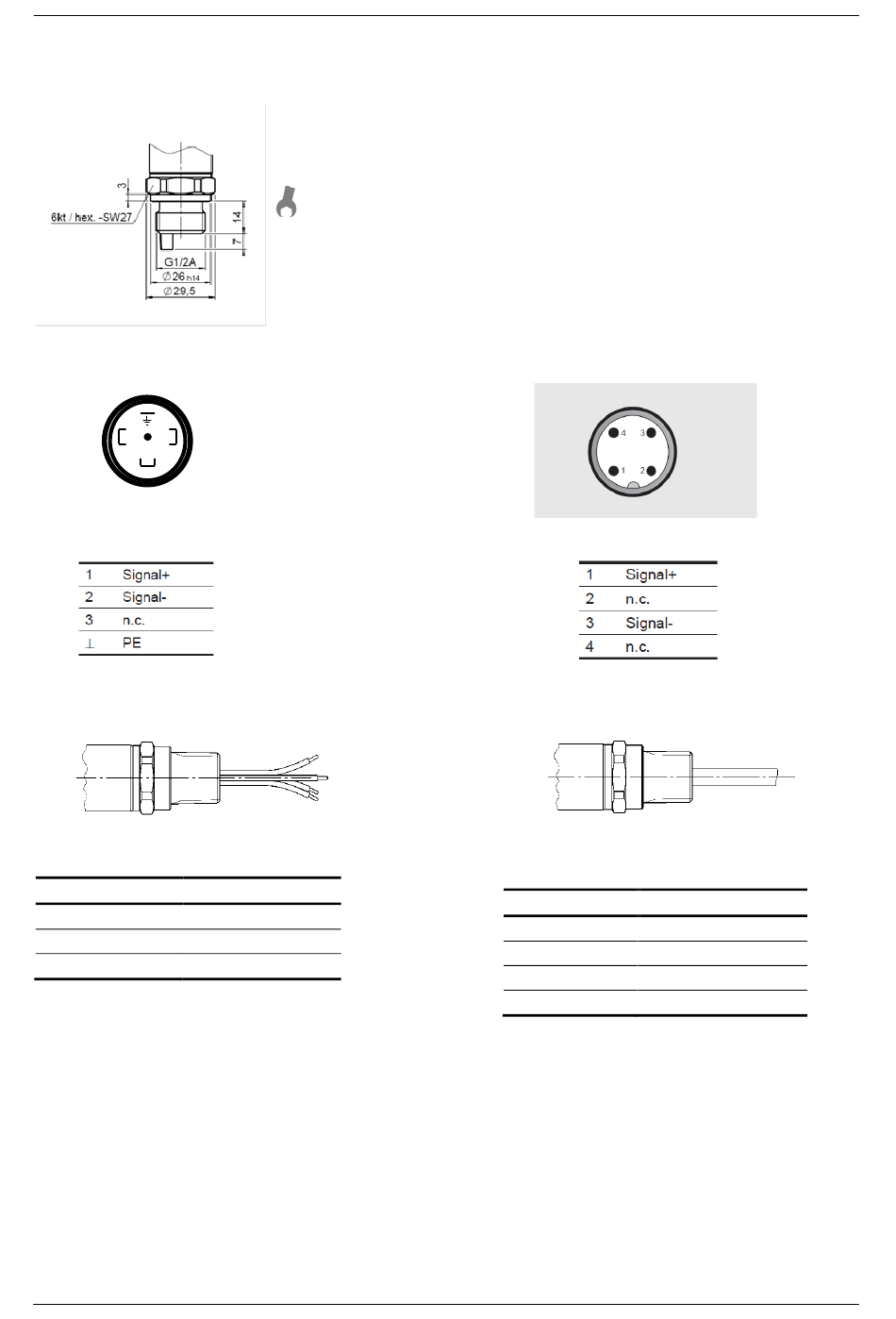

Mechanical connection with pressure measurement option

10 PIN connection

Connector EN 175301-803
1 2
3
ETS 4xx5-F21:
Conduit (single leads)
Lead ETS 45x9-F21
red Signal +
black Signal -
green-yellow Housing
Status: 2016-06-07
45 Nm
HYDAC ELECTRONIC GMBH
M12x1 plug
ETS 4xx6-F21
Conduit (jacketed cable)
Lead ETS 45xG-F21
white Signal -
brown Signal +
Green n.c.
yellow n.c.
Page 12 of 30
Part No.: 669918
