3. Installation

Warning
The CIM 1XX must only be connected to
SELV or SELV-E circuits.

3.1 Connecting the Profibus

Grundfos recommends to use a cable according to
IEC 61158.
Example
Siemens, 6XV1 830-0EH10.
Cable length
Maximum cable length
Kbits/s
[m/ft]
9.6 1200/4000
19.2 1200/4000
45.45 1200/4000
93.75 1000/3300
187.5 1000/3300
500 400/1300
1500 200/660
3000 100/330
6000 100/330
12000 100/330
Fitting the cable
Procedure:
See fig. 2.
1. Connect the red conductor(s) to terminal B
(pos. 1).
2. Connect the green conductor(s) to terminal A
(pos. 2).
3. Connect the cable screens to earth via the earth
clamp (pos. 3).
It is important to connect the screen to
earth through the earth clamp and to
Note
connect the screen to earth in all units
connected to the bus line.
4
5
2
1
3

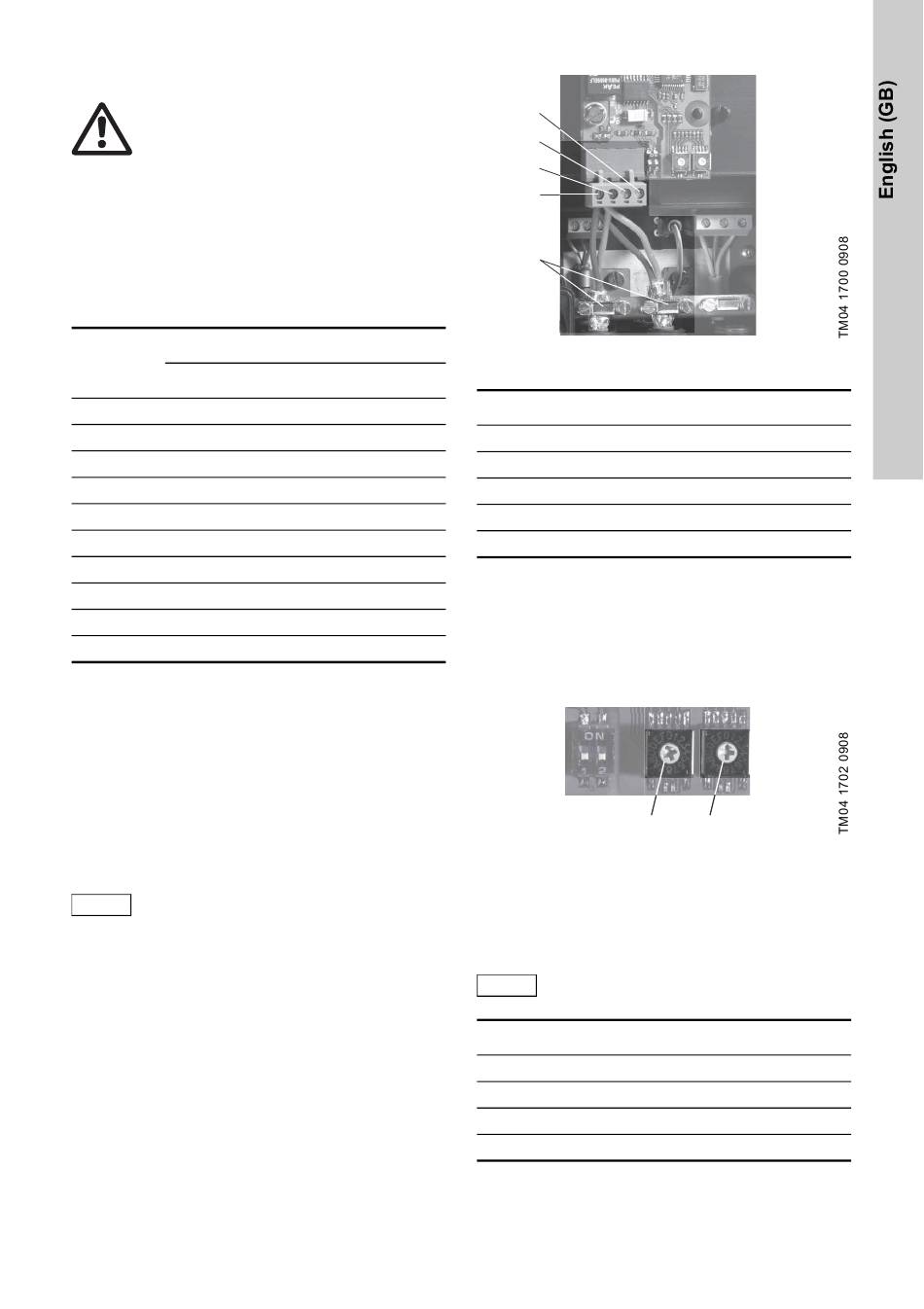

Fig. 2 Connecting the Profibus
Pos. Description
1 Profibus terminal B
2 Profibus terminal A
3 Earth clamp
4 +5 VDC
5 DGND

3.2 Setting the Profibus address

The CIM 1XX Profibus module has two hexadecimal
rotary switches for setting the Profibus address.
The two switches are used for setting the four most
significant bits (SW3) and the four least significant
bits (SW4), respectively. See fig. 3.
SW3
Fig. 3 Setting the Profibus address
The table below shows examples of Profibus
address settings.
For a complete overview of Profibus addresses,
see the table on page 77.
The Profibus address must be set
Note
decimally from 1 to 126.
Profibus address
8
20
31
126
SW4
SW3 SW4
0 8
1 4
1 F
7 E
5
