G
®
THERMASGARD

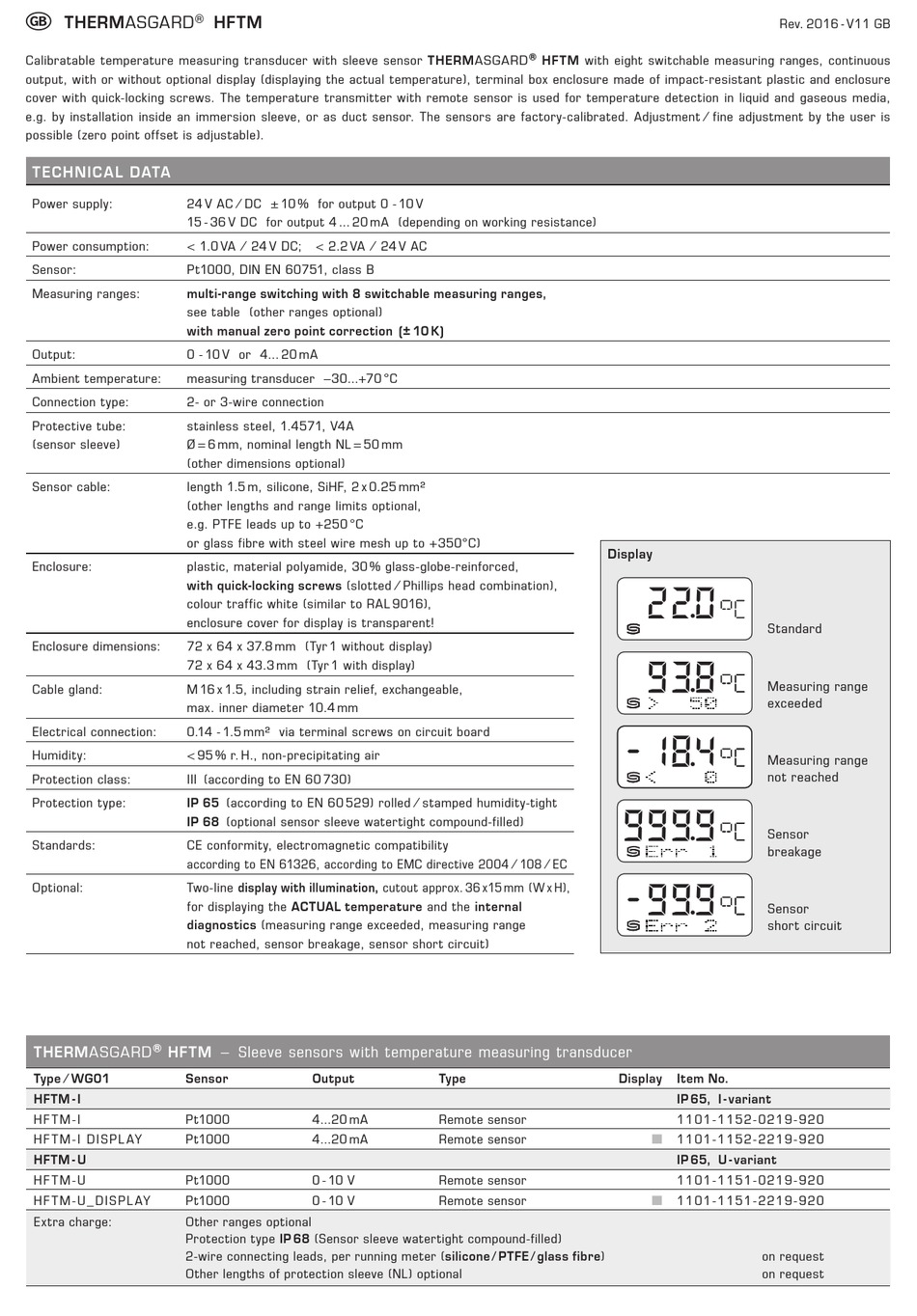

Calibratable temperature measuring transducer with sleeve sensor THERMASGARD
output, with or without optional display (displaying the actual temperature), terminal box enclosure made of impact-resistant plastic and enclosure
cover with quick-locking screws. The temperature transmitter with remote sensor is used for temperature detection in liquid and gaseous media,
e.g. by installation inside an immersion sleeve, or as duct sensor. The sensors are factory-calibrated. Adjustment ⁄ fine adjustment by the user is
possible (zero point offset is adjustable).
TECHNICAL DATA
Power supply:
24 V AC ⁄ DC ± 10 % for output 0 - 10 V
15 - 36 V DC for output 4 ... 20 mA (depending on working resistance)
Power consumption:
< 1.0 VA ⁄ 24 V DC; < 2.2 VA ⁄ 24 V AC
Sensor:
Pt1000, DIN EN 60751, class B
Measuring ranges:
multi-range switching with 8 switchable measuring ranges,
see table (other ranges optional)
with manual zero point correction (± 10 K)
Output:
0 - 10 V or 4... 20 mA
Ambient temperature:
measuring transducer –30...+70 °C
Connection type:
2- or 3-wire connection
Protective tube:
stainless steel, 1.4571, V4A
(sensor sleeve)
Ø = 6 mm, nominal length NL = 50 mm
(other dimensions optional)
Sensor cable:
length 1.5 m, silicone, SiHF, 2 x 0.25 mm²
(other lengths and range limits optional,
e.g. PTFE leads up to +250 °C
or glass fibre with steel wire mesh up to +350°C)
Enclosure:
plastic, material polyamide, 30 % glass-globe-reinforced,
with quick-locking screws (slotted ⁄ Phillips head combination),
colour traffic white (similar to RAL 9016),
enclosure cover for display is transparent!
Enclosure dimensions:
72 x 64 x 37.8 mm (Tyr 1 without display)
72 x 64 x 43.3 mm (Tyr 1 with display)
Cable gland:
M 16 x 1.5, including strain relief, exchangeable,
max. inner diameter 10.4 mm
Electrical connection:
0.14 - 1.5 mm² via terminal screws on circuit board
Humidity:
< 95 % r. H., non-precipitating air
Protection class:
III (according to EN 60 730)
Protection type:
IP 65 (according to EN 60 529) rolled ⁄ stamped humidity-tight
IP 68 (optional sensor sleeve watertight compound-filled)
Standards:
CE conformity, electromagnetic compatibility
according to EN 61326, according to EMC directive 2004 ⁄ 108 ⁄ EC
Optional:
Two-line display with illumination, cutout approx. 36 x15 mm (W x H),
for displaying the ACTUAL temperature and the internal
diagnostics (measuring range exceeded, measuring range
not reached, sensor breakage, sensor short circuit)
®
THERMASGARD
HFTM – Sleeve sensors with temperature measuring transducer
Type ⁄ WG01
Sensor
HFTM - I
H F T M - I
Pt1000
H F T M - I D I S P L AY
Pt1000
HFTM - U
H F T M - U
Pt1000
H F T M - U _ D I S P L AY
Pt1000
Extra charge:
Other ranges optional
Protection type IP 68 (Sensor sleeve watertight compound-filled)
2-wire connecting leads, per running meter (silicone / PTFE / glass fibre)
Other lengths of protection sleeve (NL) optional
HFTM
Output
4...20 mA
4...20 mA
0 - 10 V
0 - 10 V
®
HFTM with eight switchable measuring ranges, continuous
Display
Type
Remote sensor
Remote sensor
Remote sensor
Remote sensor
Rev. 2016 - V11 GB
Standard
Measuring range
exceeded
Measuring range
not reached
Sensor
breakage
Sensor
short circuit
Display
Item No.
IP 65, I - variant
1101- 1152-0219- 920
■
1101-1152- 2219- 920
IP 65, U - variant
1101- 1151-0219- 920
■
1101-1151- 2219- 920
on request
on request
