The following instructions provide the necessary
information for the proper operation and preventive
maintenance of the Binks AA4400M Air-Assist Airless
Spray Gun. Please read and understand all information
in this document in order to get the maximum
performance from your new AA4400M spray gun.
In the AA4400M spray gun, the paint or other material
to be sprayed is pre-atomized and forced through the
1 bar [15 psi] is the maximum inlet air pressure for HVLP (1 bar [15 psi] max. for HVLP twist tip cap), or use 1.4-2.8
bar [20-40 psi] inlet air pressure for LVMP. The HVLP flat tip and twist tip air caps consume 230 L/m [8.3 SCFM] air
at their respective maximum inlet air pressures. The LVMP flat tip and twist tip air caps consume 368 L/m [13 SCFM]
at 2.1 bar [30 psi] inlet air pressure.
77-2922-R10.6 (5/2017)

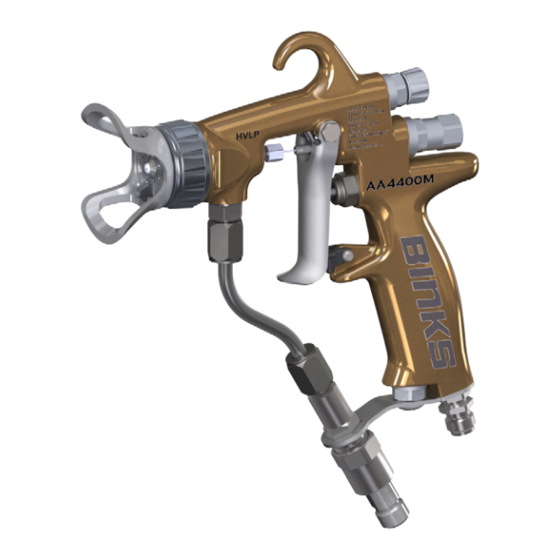

AA4400M
AIRLESS SPRAY GUN
SPECIFICATIONS:
Maximum Fluid Pressure:
Maximum Air Pressure:
Gun Body:
Fluid Path:
Fluid Seat:
Fluid Inlet Size:
Air Inlet Size:
Gun Weight:
AIR-ASSIST
™
REVERSIBLE TWIST TIP
carbide tip by the typical 110-262 bar [1,600-3,800 psi]
fluid pressure (with capabilities up to 303 bar [4,400
psi]). As a result of the pre-atomizing, the final shaping
air supplied by the air cap produces an exceptionally
fine and even spray pattern. The result of this spray
pattern is an even finish that lends itself to products
that need an exceptionally fine finish with reduced
overspray and VOC emissions.
303 bar [4,400 psi]
6.8 bar [100 psi]
Forged Aluminum
Stainless Steel
Tungsten Carbide Seat
1/4" NPS(m) Thread
1/4" BSP/NPS(m) Thread
490 g [17.28 oz.]
(without Tip, Aircap, Guard)
