Subring Management
[port]: Set the port for the sub-ring domain with the value id.
[name]: Set name for the sub-ring domain with the value id.
[mrp-domain]: MRP domain ID. Format: 16 bytes in decimal nota-
tion.\n(Example: 1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16).
Parameter Value
1..40000
P-1
manager
P-2
redundant-manager
single-manager
0..4042
P-3
slot no./port no.
P-4
string
P-5
string
P-6

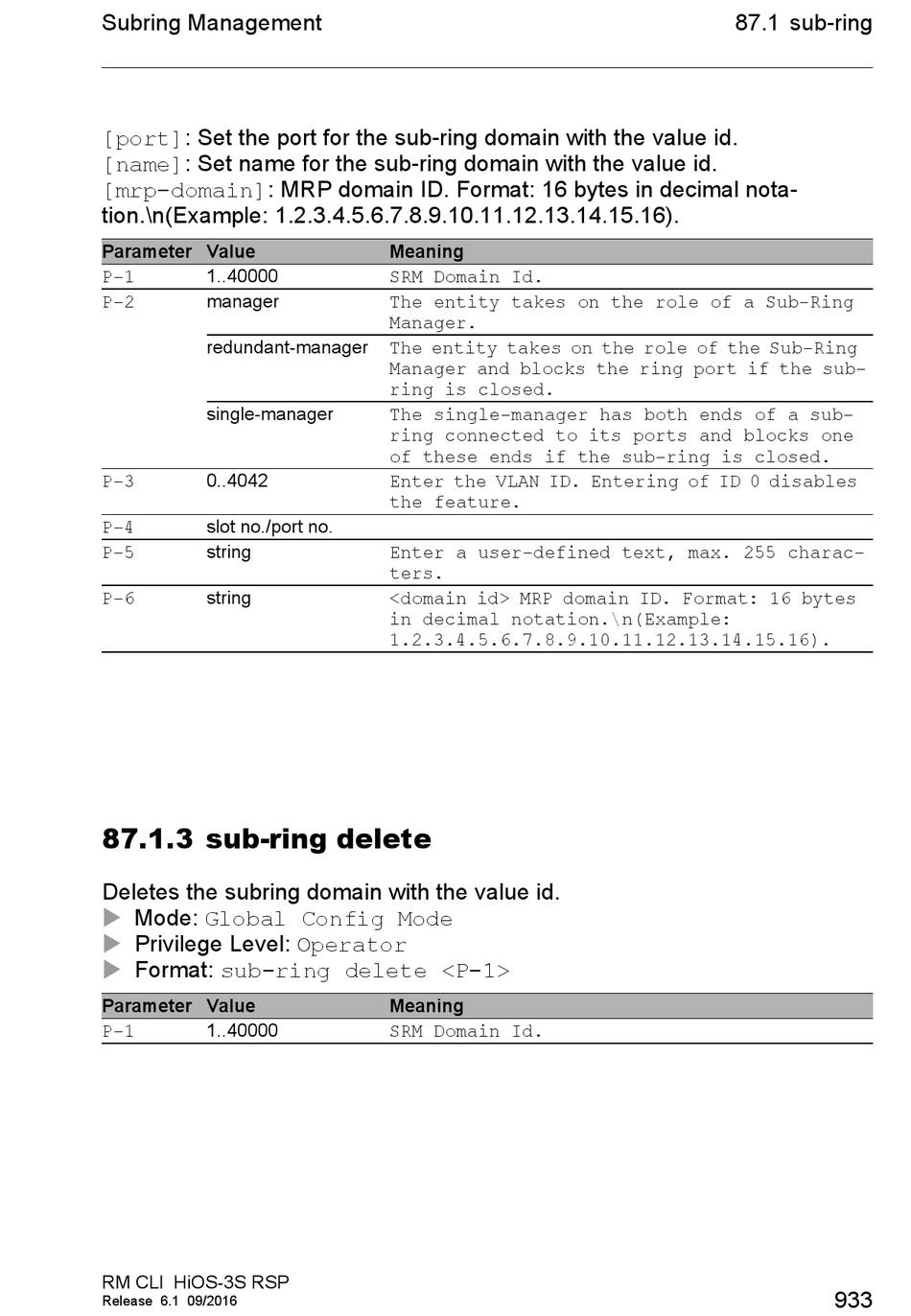

87.1.3 sub-ring delete

Deletes the subring domain with the value id.

Mode: Global Config Mode

Privilege Level: Operator

Format: sub-ring delete <P-1>
Parameter Value
1..40000
P-1
RM CLI HiOS-3S RSP
Release 6.1 09/2016
Meaning
SRM Domain Id.
The entity takes on the role of a Sub-Ring
Manager.
The entity takes on the role of the Sub-Ring
Manager and blocks the ring port if the sub-
ring is closed.
The single-manager has both ends of a sub-
ring connected to its ports and blocks one
of these ends if the sub-ring is closed.
Enter the VLAN ID. Entering of ID 0 disables
the feature.
Enter a user-defined text, max. 255 charac-
ters.
<domain id> MRP domain ID. Format: 16 bytes
in decimal notation.\n(Example:
1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16).
Meaning
SRM Domain Id.
87.1 sub-ring
